GUV10-103

0
Views: 56
Contact usDownload PDF
  •

    Technical data-UL/CUL



     Use group
    B C D
    Rated voltage
    600V 600V 600V
    Rated current
    60A 60A 5A
    Withstand voltage
    2200V/1Min
    Wire gauge range
    20-6AWG



    Technical data-IEC



     Overvoltage category
    III
    Pollution degree
    3
    Rated voltage
    1000V
    Rated current
    57A
     Impulse withstand voltage
    8KV



    Conductor cross section



    Soild
    0.5-16mm²
    Conductor cross section flexible
    0.5-10mm²
    Conductor cross section flexible with ferrule
    0.5-10mm²



    Material data



     Insulating material
    PA66
    Flammability rating according to UL94 V0
     Contact material
    Copper alloy
    Surface characteristics Tin-plated



    Other data



    Length/Height/Thickness
    89.2mm/49.7mm/10.2mm
     Number of connections
    3
     Stripping length
    18mm
     Type of rail
    DIN 35
     Screw/Torque(Max)[N.m]
    /
     Operating temperature  -40°C...105 °C [ -40...221 °F ]

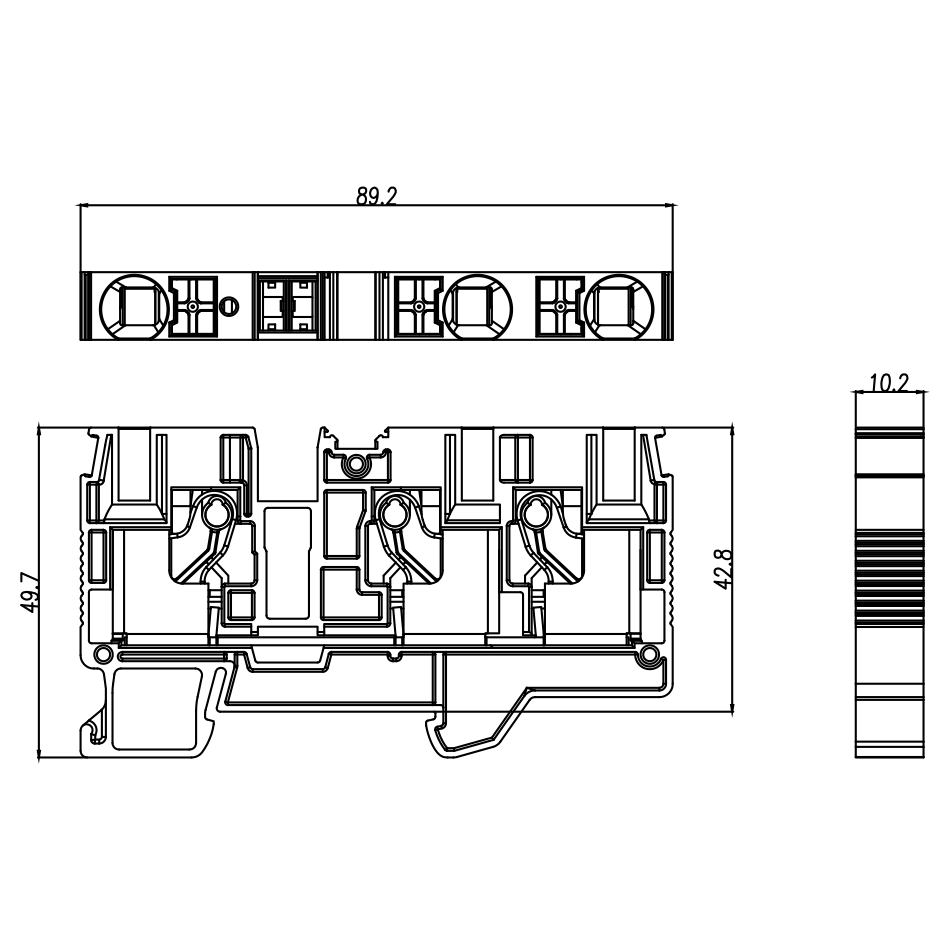

    Dimensional drawing
