• 技术数据-UL/CUL

    等级 Use Group
    B C D
    额定电压 Rated Voltage [V]
    600 600 600
    额定电流 Rated Current [A]
    20 20 5
    耐电压 Withstanding Voltage
    2200V/1Min
    接线范围 Wire Range
    26-12AWG



    技术数据-IEC

    过电压类别 Overvoltage Category
    III
    污染等级 Contamination Class
    3
    额定电压 Rated Voltage
    800V
    额定电流 Rated Current
    24A
    额定冲击电压 Impulse withstand voltage
    8KV



    导线截面积

    单芯 Soild
    0.2-4mm²
    柔性导线 Flexible
    0.2-2.5mm²
    柔性导线带冷压头 Flexible with ferrule
    0.2-2.5mm²



    材料信息

    绝缘材料 Insulation Material
    PA66
    阻燃等级 Flame relardant rating
    UL94V-0
    导体材料 Conductor Material
    Copper alloy
    导体表面镀层 Plating of conductor surface
    Sn plated



    一般参数

    长/高/厚 Length/Height/Thickness [mm]
    48.6/35.2/5.2
    连接点数 Connection Points
    2
    剥线长度 Stripping Length [mm]
    8-10
    导轨类型 Type of rail
    DIN 35
    螺丝/扭矩 Screw/Torque(Max)[N.m]
    /
    工作温度 Operating temperature [℃]
    -40~+105
    /

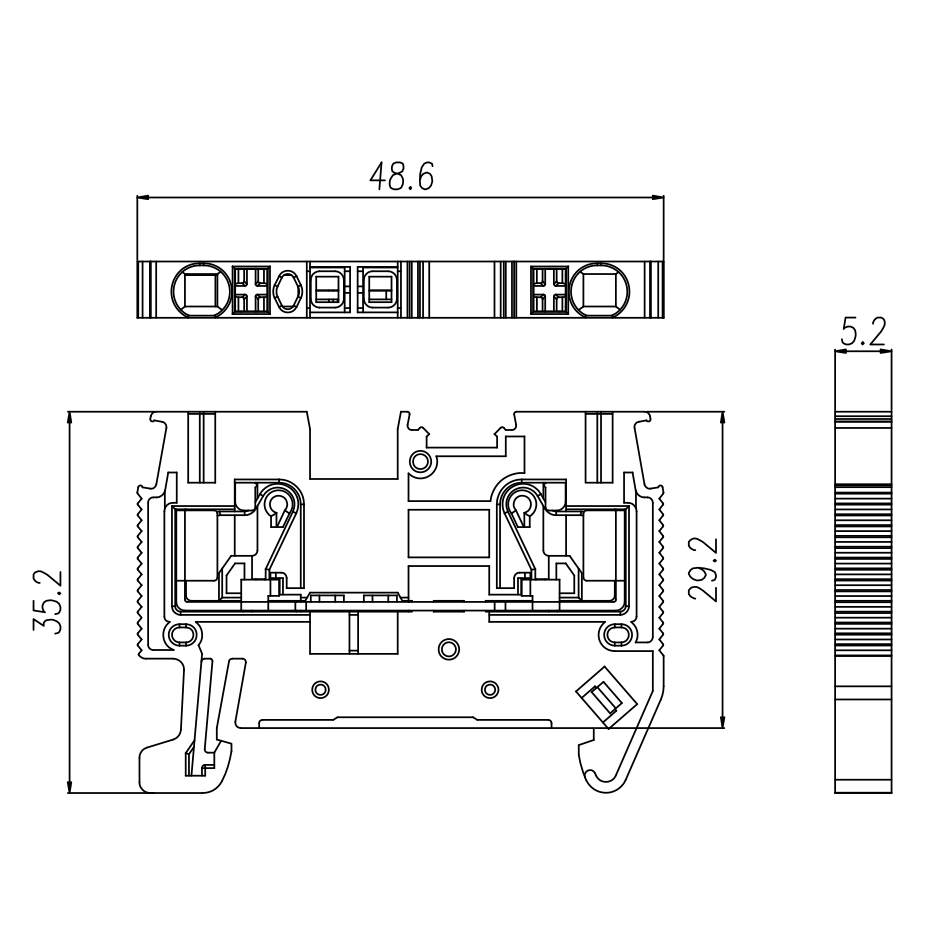

    尺寸图
