GUV2.5-103-PE

0
Views: 57
Contact usDownload PDF
  •

    Technical data-UL/CUL



    Withstand voltage
    2200V/1Min
     Wire gauge range
    26-12AWG




    Technical data-IEC



     Overvoltage category
    III
    Pollution degree
    3
     Impulse withstand voltage
    8KV



    Conductor cross section



     Soild
    0.2-4mm²
    Conductor cross section flexible
    0.2-2.5mm²
    Conductor cross section flexible with ferrule
    0.2-2.5mm²



    Material data



    Insulating material
    PA66
    Flammability rating according to UL94 V0
    Contact material
    Copper alloy
    Surface characteristics Tin-plated



    Other data



     Length/Height/Thickness
    60.60mm/35.3mm/5.20mm
     Number of connections
    3
     Stripping length
    8-10mm
     Type of rail
    DIN 35
    Screw/Torque(Max)[N.m]
    /
     Operating temperature  -40°C...105 °C [ -40...221 °F ]

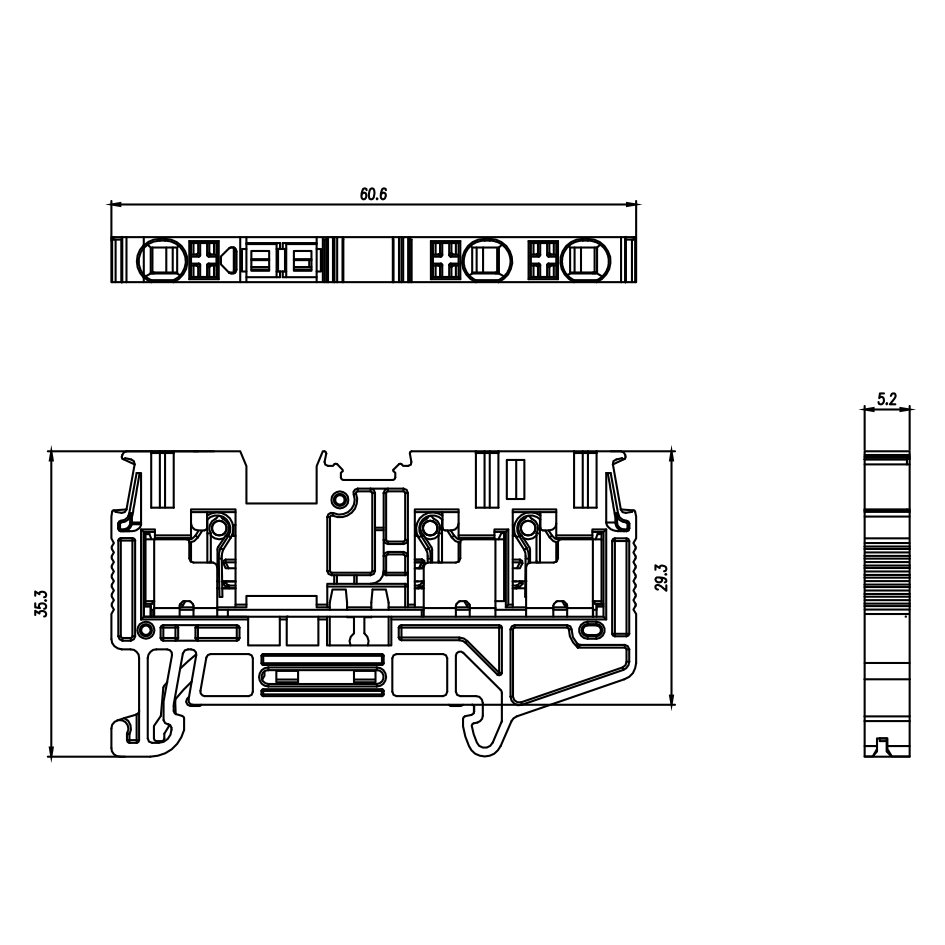

    Dimensional drawing
