GUV2.5-202

0
Views: 502
Contact usDownload PDF View 3D Download CAD

  •

    Technical data-UL/CUL



     Use group
    B C D
    Rated voltage
    300V 300V 600V
    Rated current
    20A 20A 5A
     Wire gauge range
    26-12AWG



    Technical data-IEC



     Overvoltage category
    III
    Pollution degree
    3
    Rated voltage
    500V
    Rated current
    22A
     Impulse withstand voltage
    8KV



    Conductor cross section



     Soild
    0.2-4mm²
     Conductor cross section flexible
    0.2-2.5mm²
     Conductor cross section flexible with ferrule
    0.2-2.5mm²



    Material data



    Insulating material
    PA66
    Flammability rating according to UL94 V0
    Contact material
    Copper alloy
    Surface characteristics   Tin-plated



     Other data



     Length/Height/Thickness
    68.2mm/45.9mm/5.2mm
     Stripping length
    8-10mm
     Certification
    /

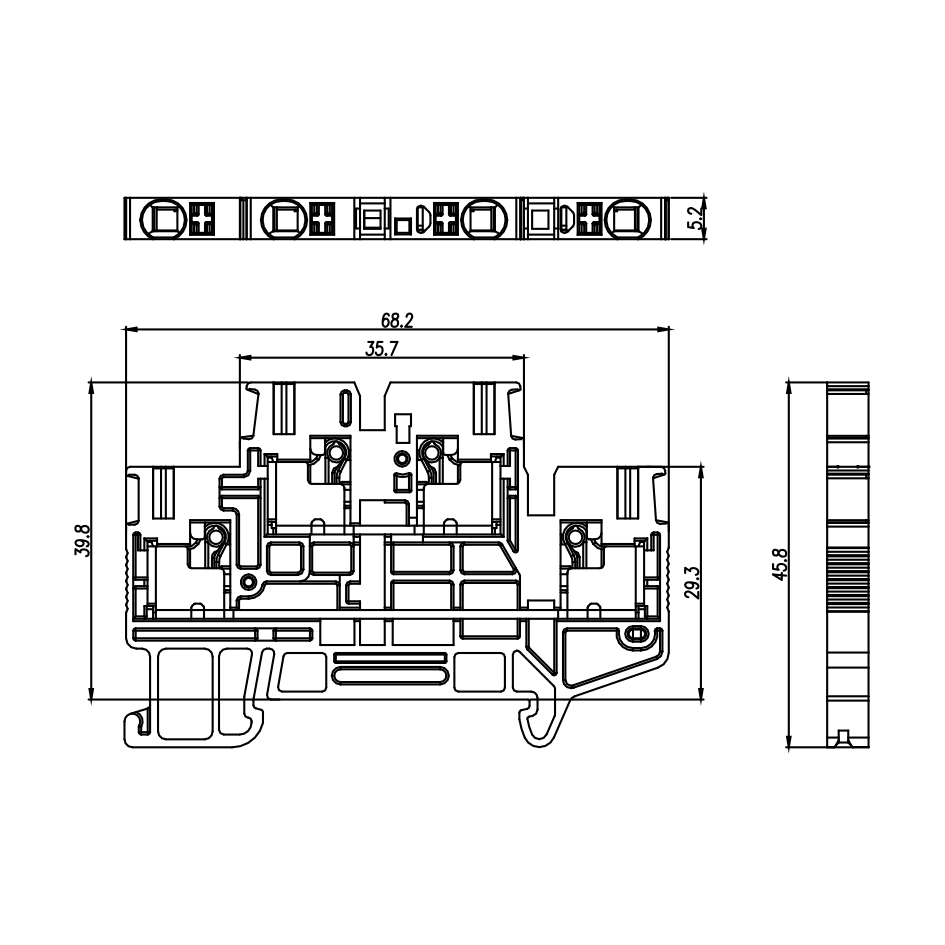

    Dimensional drawing
