GUV4-102-PE

0
Views: 52
Contact usDownload PDF
  •

    Technical data-UL/CUL



    Withstand voltage
    2200V/1Min
    Wire gauge range
    24-10AWG



    Technical data-IEC



     Overvoltage category
    III
    Pollution degree
    3
     Impulse withstand voltage
    8KV



    Conductor cross section



     Soild
    0.2-6mm²
    Conductor cross section flexible
    0.2-4mm²
     Conductor cross section flexible with ferrule
    0.2-4mm²



    Material data



    Insulating material
    PA66
    Flammability rating according to UL94 V0
    Contact material
    Copper alloy
    Surface characteristics Tin-plated



     Other data



     Length/Height/Thickness
    55.9mm/35.2mm/6.2mm
    Number of connections
    2
    Stripping length
    10-12mm
     Type of rail
    DIN 35
     Screw/Torque(Max)[N.m]
    /
     Operating temperature  -40°C...105 °C [ -40...221 °F ]

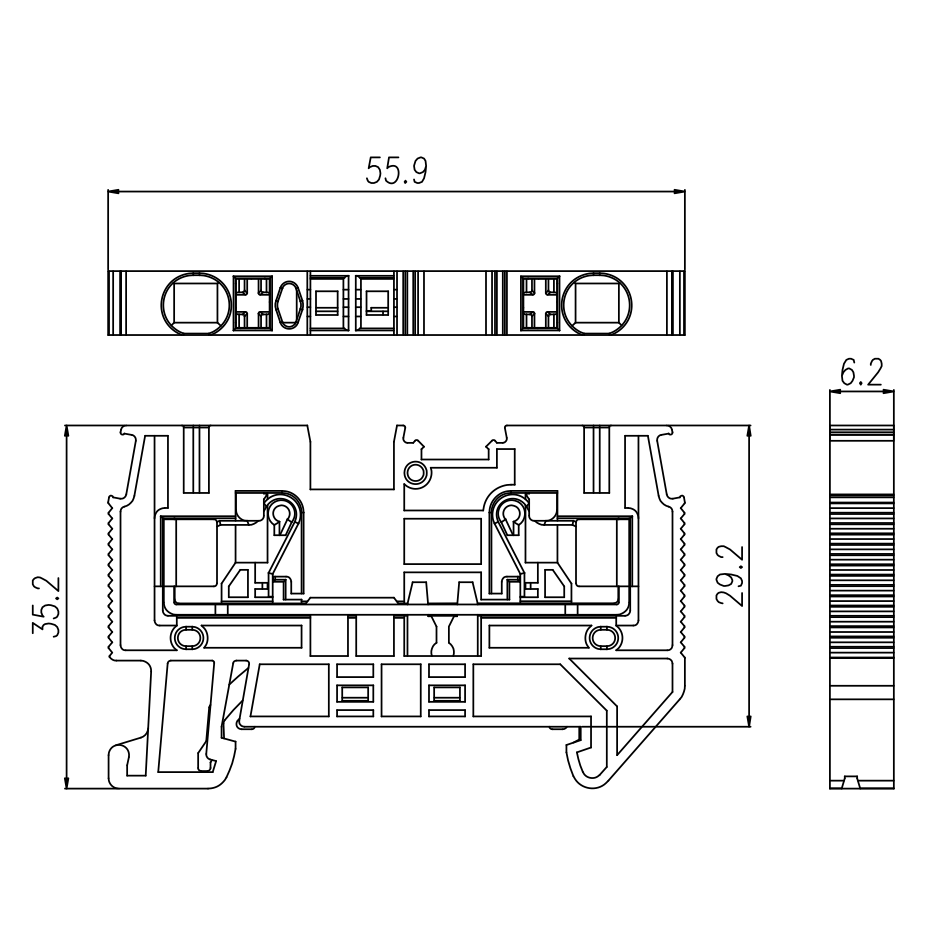

    Dimensional drawing
