GUV4-104-PE

0
Views: 470
Contact usDownload PDF View 3D Download CAD
  •

    Technical data-UL/CUL



    Withstand voltage
    2200V/1Min
    Wire gauge range
    24-10AWG




    Technical data-IEC



     Overvoltage category
    III
    Pollution degree
    3
     Impulse withstand voltage
    8KV



    Conductor cross section



     Soild
    0.2-6mm²
    Conductor cross section flexible
    0.2-4mm²
    Conductor cross section flexible with ferrule
    0.2-4mm²



    Material data



    Insulating material
    PA66
    Flammability rating according to UL94 V0
    Contact material
    Copper alloy
    Surface characteristics Tin-plated



    Other data



     Length/Height/Thickness
    77.00mm/35.3mm/6.20mm
    Number of connections
    4
     Stripping length
    10-12mm
    Type of rail
    DIN 35
     Screw/Torque(Max)[N.m]
    /
     Operating temperature -40°C...105 °C [ -40...221 °F ]

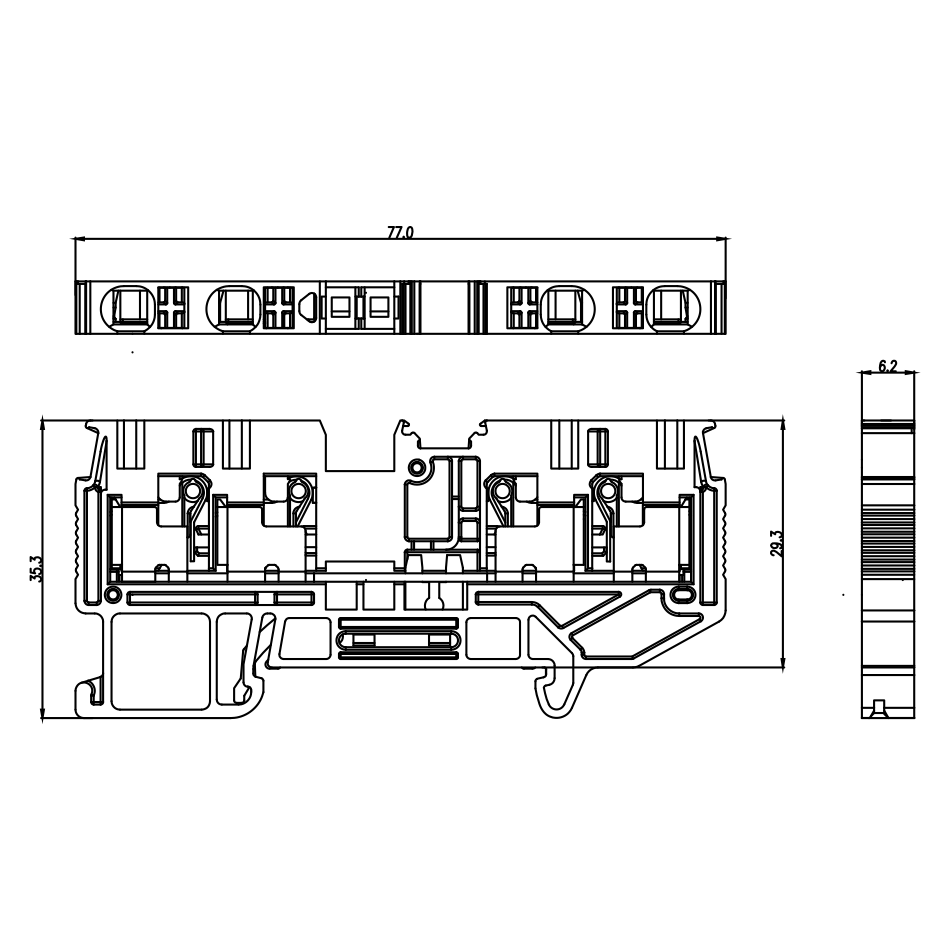

    Dimensional drawing
