GUV4-104

0
Views: 68
Contact usDownload PDF
  •

    Technical data-UL/CUL



     Use group
    B C D
    Rated voltage
    600V 600V 600V
    Rated current
    30A 30A 5A
    Withstand voltage
    2200V/1Min
    Wire gauge range
    24-10AWG




    Technical data-IEC



    Overvoltage category
    III
    Pollution degree
    3
    Rated voltage
    800V
    Rated current
    32A
     Impulse withstand voltage
    8KV



    Conductor cross section



     Soild
    0.2-6mm²
     Conductor cross section flexible
    0.2-4mm²
     Conductor cross section flexible with ferrule
    0.2-4mm²



    Material data



    Insulating material
    PA66
     Flammability rating according to UL94  V0
    Contact material
    Copper alloy
    Surface characteristics  Tin-plated



    Other data



     Length/Height/Thickness
    77.00mm/35.3mm/6.2mm
    Number of connections
    4
     Stripping length
    10-12mm
     Type of rail
    DIN 35
     Screw/Torque(Max)[N.m]
    /
     Operating temperature  -40°C...105 °C [ -40...221 °F ]

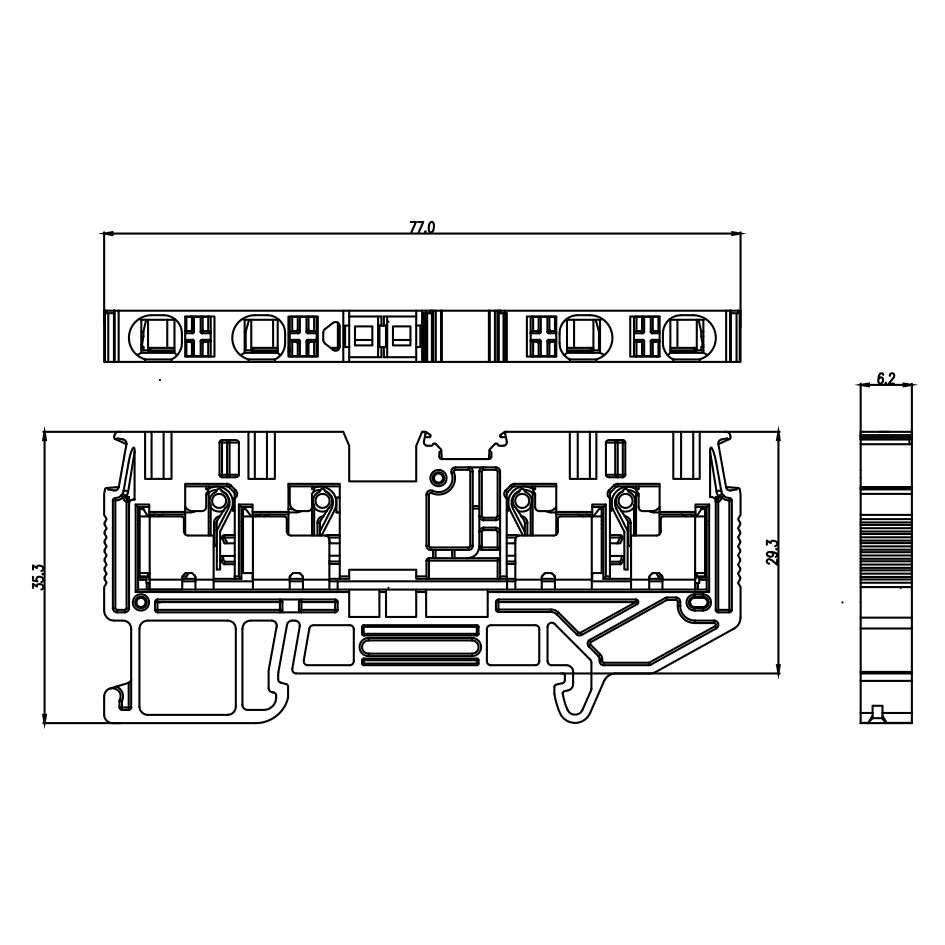

    Dimensional drawing
