GUV4-202-PE

0
Views: 5,289
Contact usDownload PDF View 3D Download CAD

  •

    Technical data-UL/CUL



    Wire gauge range
    24-10AWG



    Technical data-IEC



     Overvoltage category
    III
    Pollution degree
    3
     Impulse withstand voltage
    8KV



    Conductor cross section



     Soild
    0.2-4mm²
    Conductor cross section flexible
    0.2-4mm²
    Conductor cross section flexible with ferrule
    0.2-4mm²



    Material data



     Insulating material
    PA66
    Flammability rating according to UL94  V0
    Contact material
    Copper alloy
    Surface characteristics Tin-plated



    Other data



    Length/Height/Thickness
    83.8mm/45.9mm/6.2mm
     Stripping length
    10-12mm
    Certification
    /

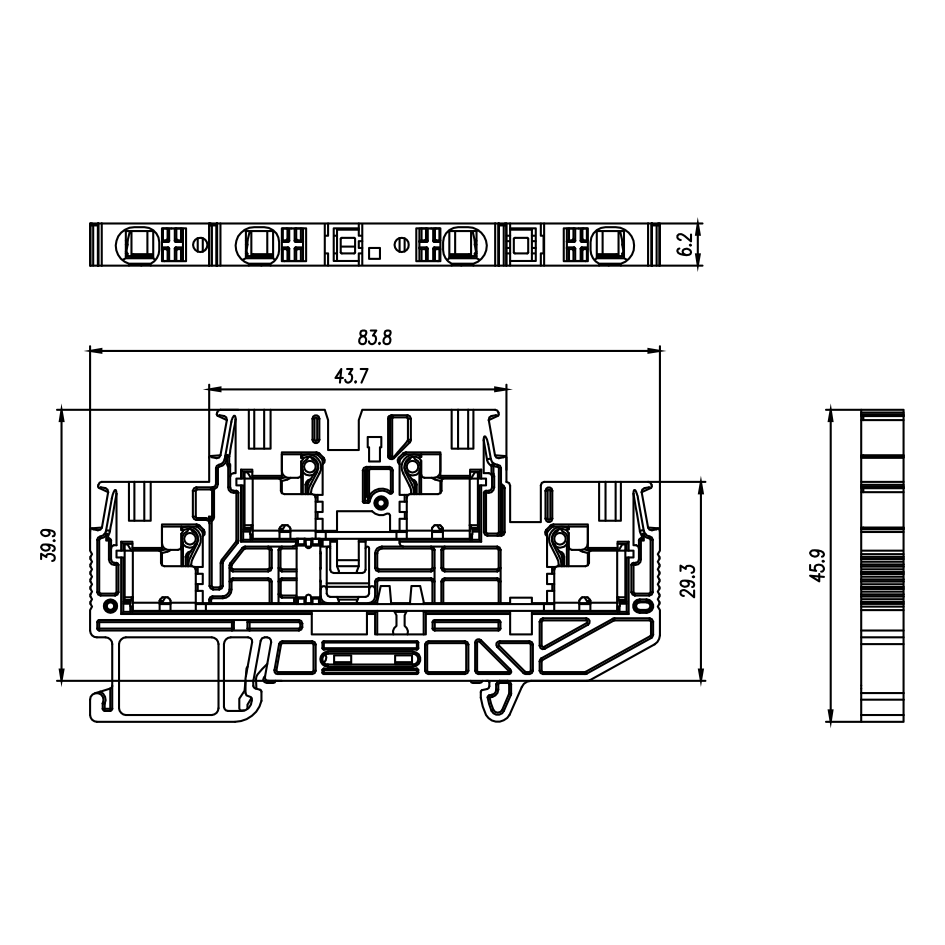

    Dimensional drawing
