GUV4-202

0
Views: 507
Contact usDownload PDF View 3D Download CAD

  •

    Technical data-UL/CUL

    Use group
    B C D
    Rated voltage
    300V 300V 600V
     Rated current
    30A 30A 5A
    Wire gauge range
    24-10AWG



    Technical data-IEC



     Overvoltage category
    III
    Pollution degree
    3
    Rated voltage
    500V
    Rated current
    28A
     Impulse withstand voltage
    8KV



    Conductor cross section



     Soild
    0.2-4mm²
    Conductor cross section flexible
    0.2-4mm²
     Conductor cross section flexible with ferrule
    0.2-4mm²



    Material data



    Insulating material
    PA66
    Flammability rating according to UL94 V0
    Contact material
    Copper alloy
    Surface characteristics Tin-plated





     Other data

     Length/Height/Thickness
    68.2mm/45.9mm/6.2mm
     Stripping length
    10-12mm
    Certification
    /

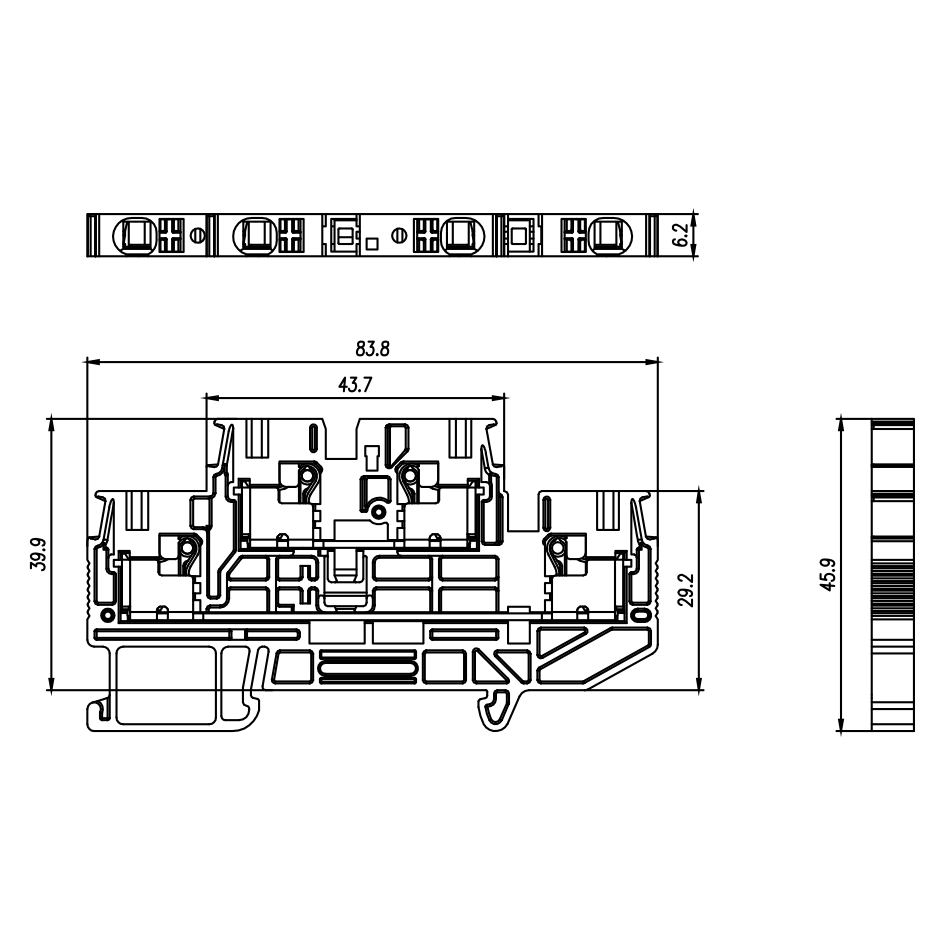

    Dimensional drawing
