GUV6-102-PE

0
Views: 54
Contact usDownload PDF
  •

    Technical data-UL/CUL



    Withstand voltage
    2200V/1Min
    Wire gauge range
    20-8AWG



    Technical data-IEC



     Overvoltage category
    III
    Pollution degree
    3
     Impulse withstand voltage
    8KV



    Conductor cross section



     Soild
    0.5-10mm²
    Conductor cross section flexible
    0.5-6mm²
    Conductor cross section flexible with ferrule
    0.5-6mm²



    Material data



     Insulating material
    PA66
     Flammability rating according to UL94 V0
     Contact material
    Copper alloy
    Surface characteristics  Tin-plated



    Other data



     Length/Height/Thickness
    57.8mm/42.3mm/8.2mm
     Number of connections
    2
     Stripping length
    10-12mm
     Type of rail
    DIN 35
     Screw/Torque(Max)[N.m]
    /
     Operating temperature -40°C...105 °C [ -40...221 °F ]

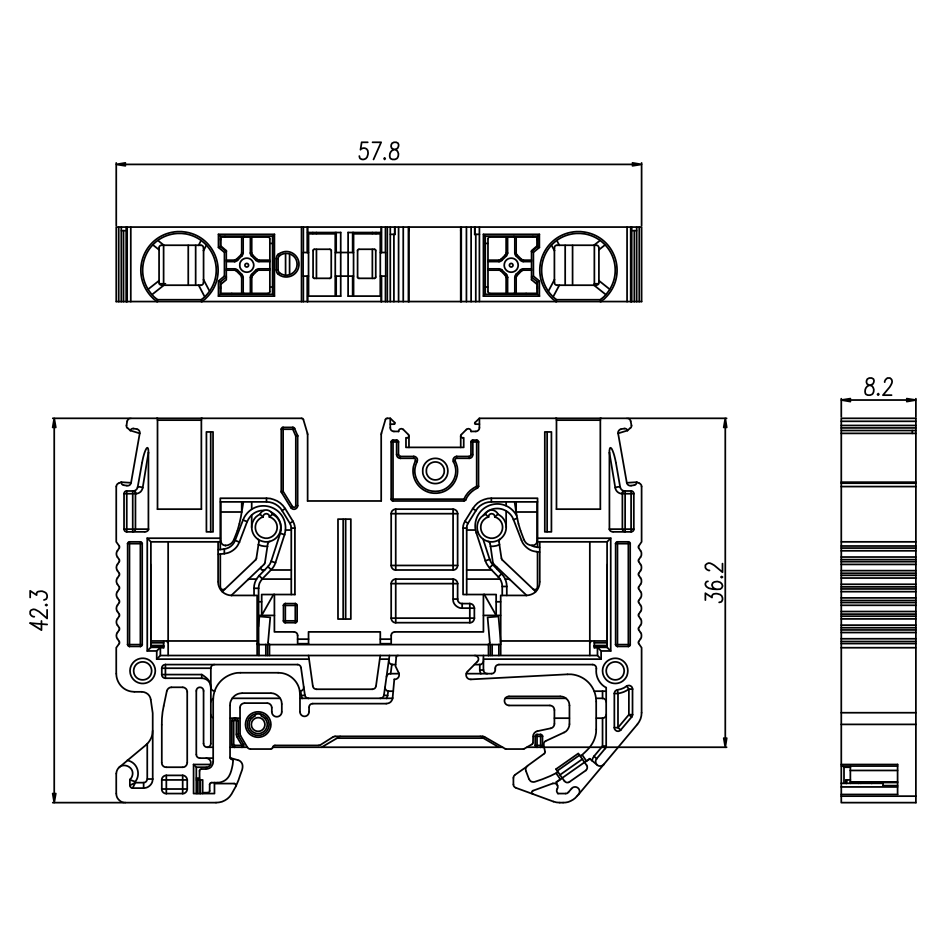

    Dimensional drawing
