GUV6-102

0
Views: 62
Contact usDownload PDF
  • Technical data-UL/CUL

     Use group
    B C D
    Rated voltage
    600V 600V 600V
    Rated current
    40A 40A 5A
    Withstand voltage
    2200V/1Min
    Wire gauge range
    20-8AWG



    Technical data-IEC

     Overvoltage category
    III
    Pollution degree
    3
    Rated voltage
    1000V
    Rated current
    41A
     Impulse withstand voltage
    8KV



    Conductor cross section

     Soild
    0.5-10mm²
    Conductor cross section flexible
    0.5-6mm²
    Conductor cross section flexible with ferrule
    0.5-6mm²



    Material data

    Insulating material
    PA66
     Flammability rating according to UL94 V0
    Contact material
    Copper alloy
    Surface characteristics Tin-plated



    Other data

     Length/Height/Thickness
    57.8mm/42.3mm/8.2mm
    Number of connections
    2
     Stripping length
    10-12mm
     Type of rail
    DIN 35
     Screw/Torque(Max)[N.m]
    /
     Operating temperature  -40°C...105 °C [ -40...221 °F ]

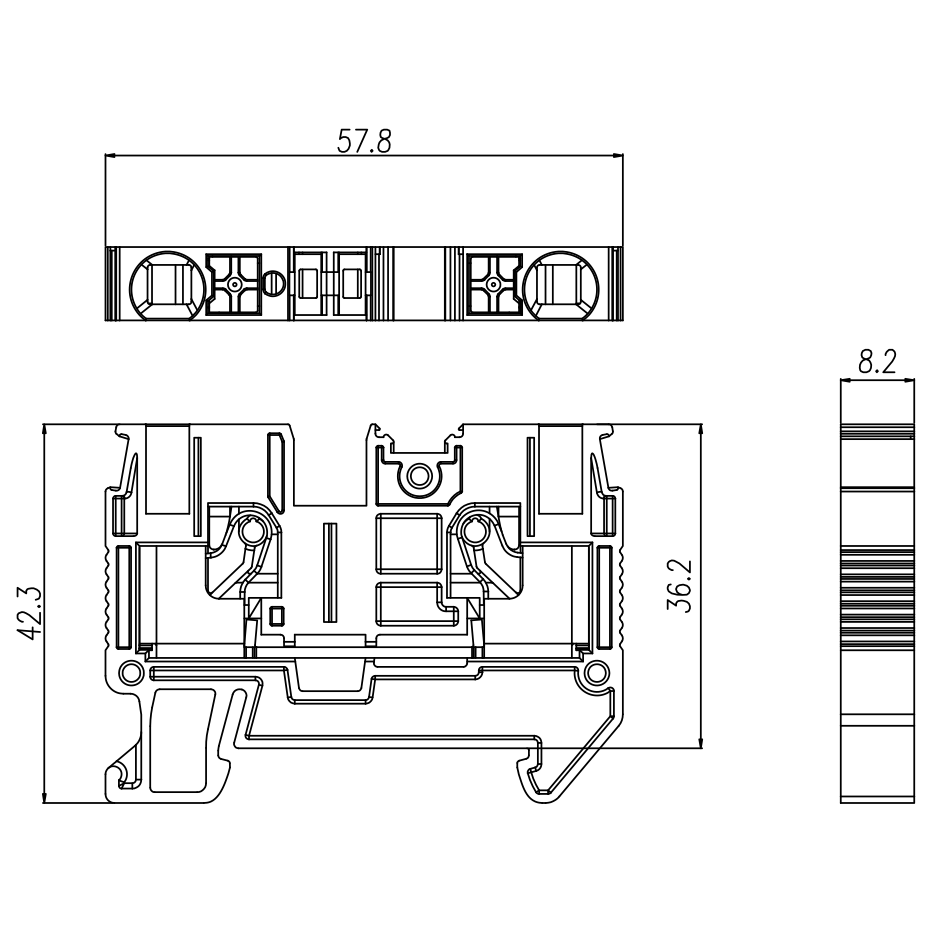

    Dimensional drawing
