GUV6-104

0
Views: 63
Contact usDownload PDF
  •

    Technical data-UL/CUL



     Use group
    B C D
    Rated voltage
    600V 600V 600V
    Rated current
    40A 40A 5A
    Withstand voltage
    2200V/1Min
    Wire gauge range
    20-8AWG



    Technical data-IEC



     Overvoltage category
    III
    Pollution degree
    3
     Rated voltage
    1000V
    Rated current
    41A
     Impulse withstand voltage
    8KV



    Conductor cross section



    Soild
    0.5-10mm²
    Conductor cross section flexible
    0.5-6mm²
    Conductor cross section flexible with ferrule
    0.5-6mm²



    Material data



    Insulating material
    PA66
    Flammability rating according to UL94 V0
     Contact material
    Copper alloy
    Surface characteristics  Tin-plated



    Other data



     Length/Height/Thickness
    90.6mm/42.3mm/8.2mm
    Number of connections
    4
     Stripping length
    10-12mm
    Type of rail
    DIN 35
     Screw/Torque(Max)[N.m]
    /
     Operating temperature  -40°C...105 °C [ -40...221 °F ]

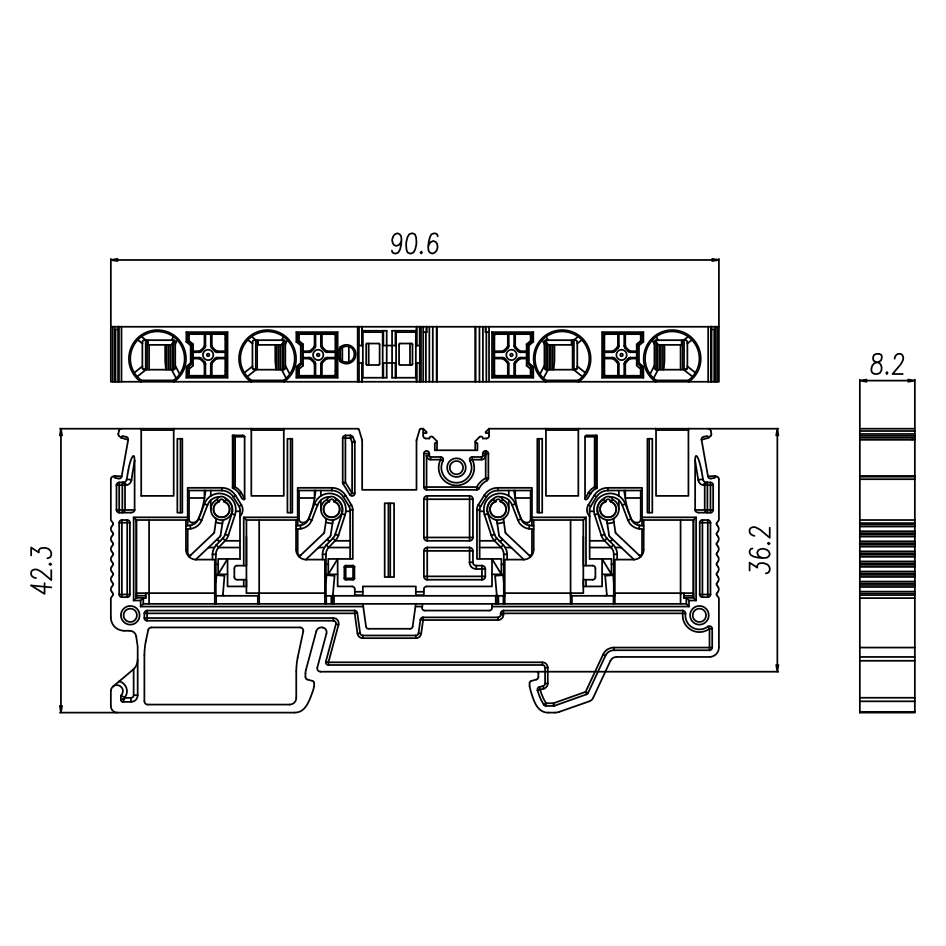

    Dimensional drawing
