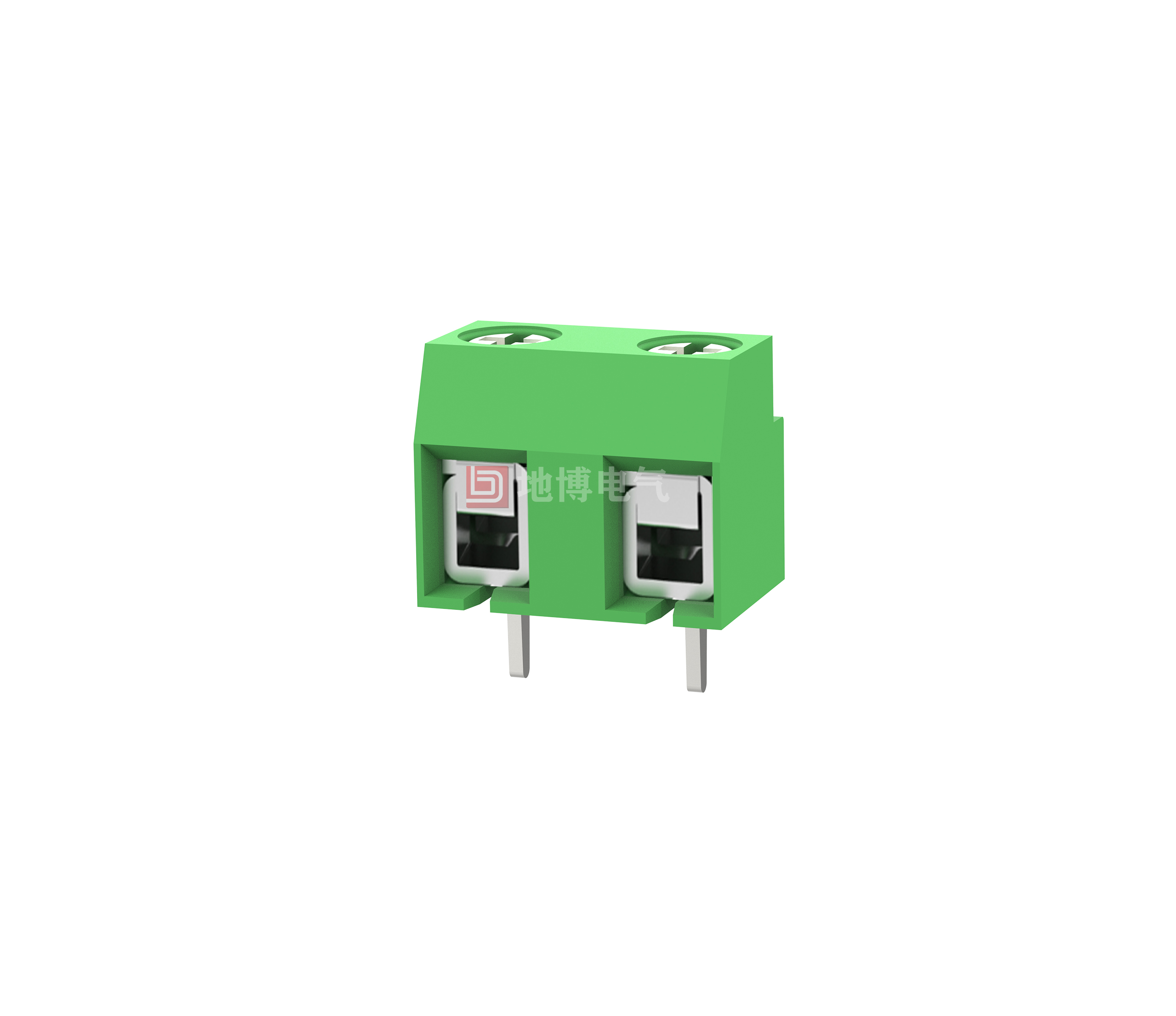

PCB terminals DB126-7.5-2P

Fixed connectors, Nominal operating current: 18 A, Rated voltage (III/2): 250 V, Nominal cross-section: 2.5 mm2, Number of potentials: 2, Number of rows: 1, Number of digits per row: 2, Series: DB126, Pin pitch: 7.5 mm, Wiring: Screw connection with wire protection, Mounting: Wave soldering, Wire/PCB connection direction: 0°, Colour: green, Pin arrangement: Straight, Pins [P]: 3.5 mm, Number of pins per potential: 1 Pin [P]: 3.5 mm, Number of pins per potential: 1, Packing type: carton. When using cold crimp tips, the maximum voltage of 250 V is only reached if the overvoltage type/contamination class II/2 is met.

Advantages

☑ Universal connection for worldwide use
☑ Maximum contact force, low temperature rise
☑ Square connector with high wiring capacity
☑ Allows connection of two stranded wires
☑ Various bit combinations possible via side latches
0
Views: 550
Contact usDownload PDF View 3D Download CAD
  • Technical data

    Use Group
    B C D
    Rate Voltage [V]
    300 - 300
    Rated Current [A]
    8 - 8
    Wire Range [AWG]
    26~14
    Dielectric Voltage-Withstand
    1.6KV

    Technical data

    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    250 400 630
    Rated Current [A]
    18 18 18
    Impulse withstand voltage [KV]
    4 4 4
    Conductor cross section [mm²]
    0.5~2.5

    Materials

    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Sn plated

    General parameters

    Pitch/Poles [mm]/[P]
    7.5/2~24
    Stripping Length [mm]
    6~7
    Screw/Torque(Max)[N.m]
    M2.5/0.25
    Operating temperature [℃]
    -40~+105
    Soldering temperature
    260℃/5S
    Pin dimensions [mm]
    0.6*1.0
    PCB Hole Diameter [mm]
    Ø1.4

    Dimensional drawings

    PCB cut-out diagram
