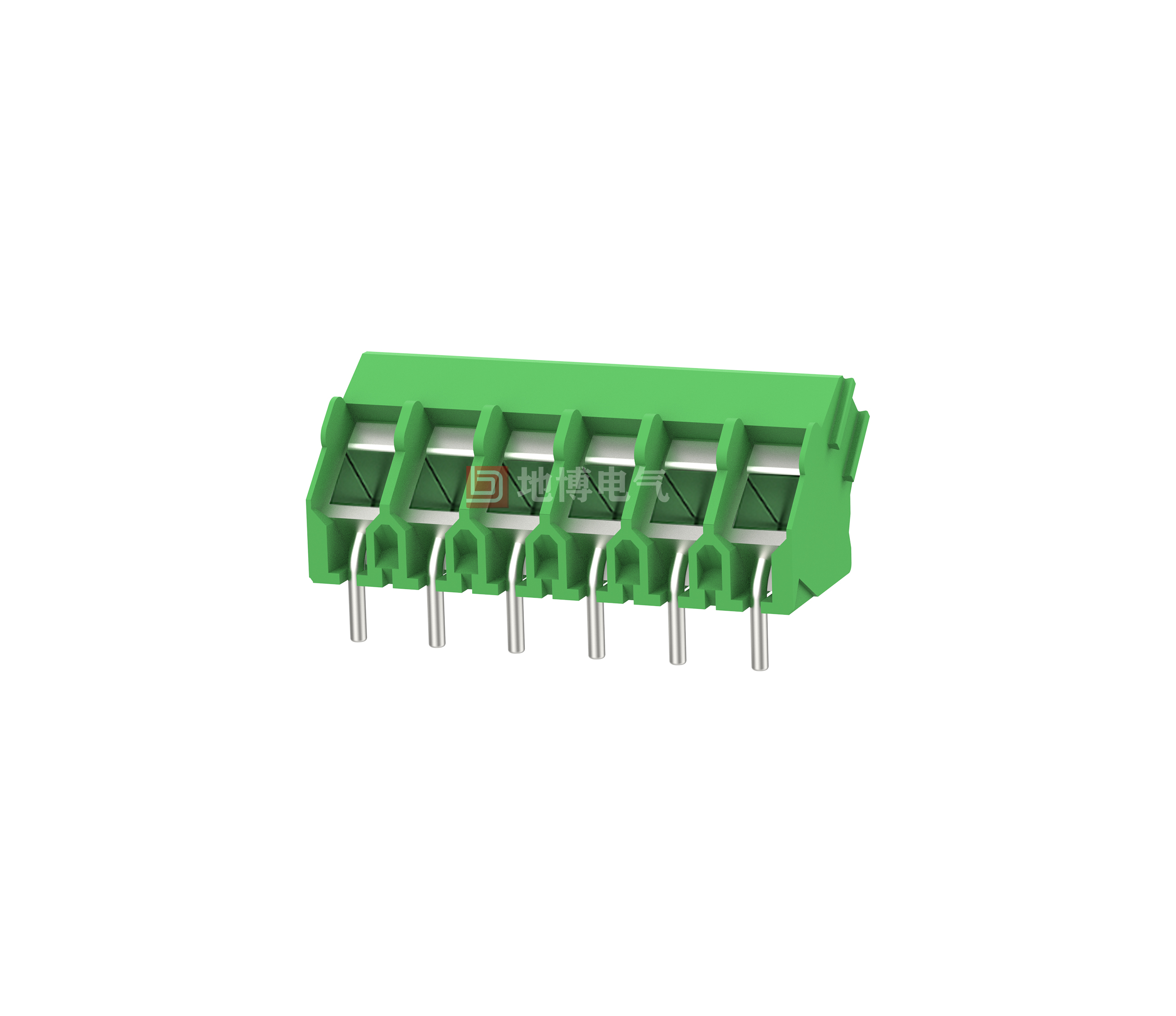

PCB terminals DB303-5.0

Fixed connectors, Rated current: 17.5 A, Rated voltage (III/2): 400 V, Rated cross-section: 1.5 mm2, Number of potentials: 2-24, Number of rows: 1, Number of pins per row: 2-24, Series: DB303, Pin pitch: 5 mm, Wiring: Screw connection with wire protection, Mounting: Wave soldering, Orientation of lead/PCB connection: 45°, Colour: Green, Pin arrangement: Front side Straight alignment, Pin [P]: 3.5 mm, Number of pins per potential: 1, Packing type: carton

Advantages

☑Universal connection for worldwide use
☑Maximum contact force, low temperature rise
☑Square connector with high wiring capacity
☑Allows connection of two stranded wires
☑Bend connection allows for multiple rows on the PCB
☑Locking on the side allows the combination of different digits



0
Views: 873
Contact usDownload PDF View 3D Download CAD
  •

    Technical data-UL/CUL



    Use Group
    B C D
    Rate Voltage [V]
    400 - 400
    Rated Current [A]
    17.5 - 17.5
    Wire Range [AWG]
    26~12
    Dielectric Voltage-Withstand
    1.5KV



    Technical data-IEC



    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    250 400 630
    Rated Current [A]
    24 24 24
    Impulse withstand voltage [KV]
    4 4 4
    Conductor cross section [mm²]
    0.2~2.5



    Material information



    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Sn plated



    General parameters



    Pitch/Poles [mm]/[P]
    5.0/2~24
    Stripping Length [mm]
    5~6
    Screw/Torque(Max)[N.m]
    M2.6/0.4
    Operating temperature [℃]
    -40~+105
    Soldering temperature
    250℃/5S
    Pin dimensions [mm]
    Ø1.0
    PCB Hole Diameter [mm]
    Ø1.2

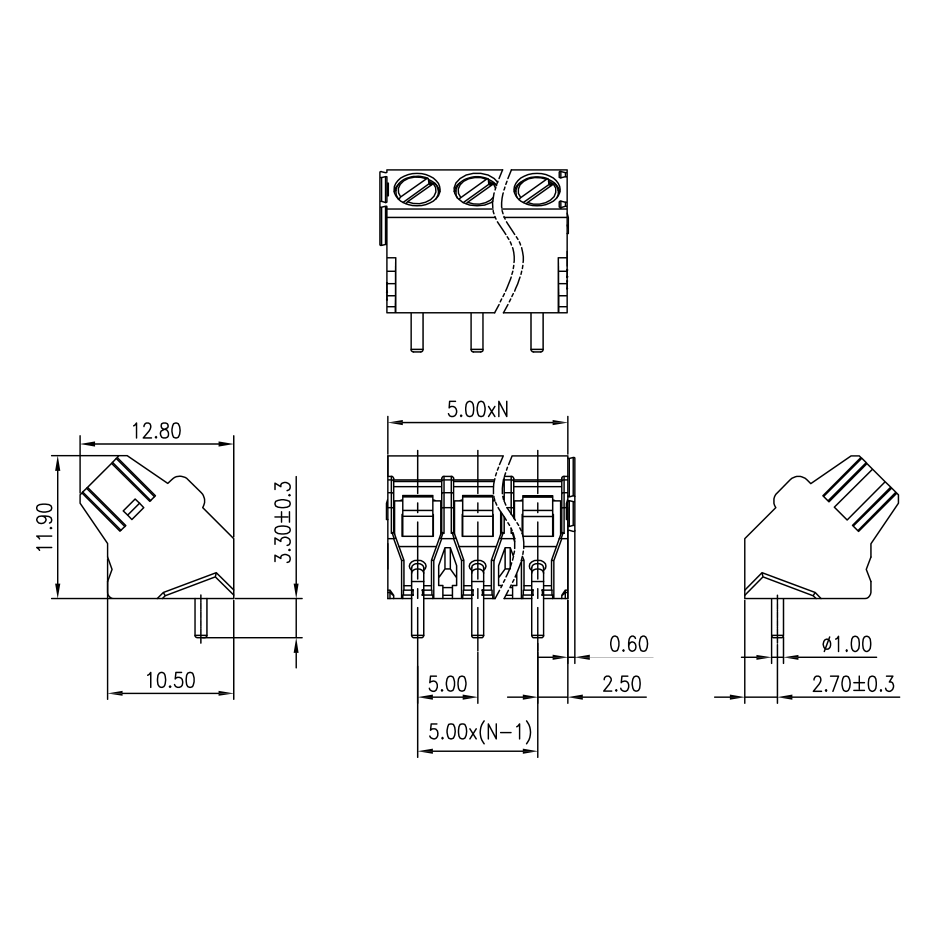

    Dimensional drawings





    PCB cut-out diagram
