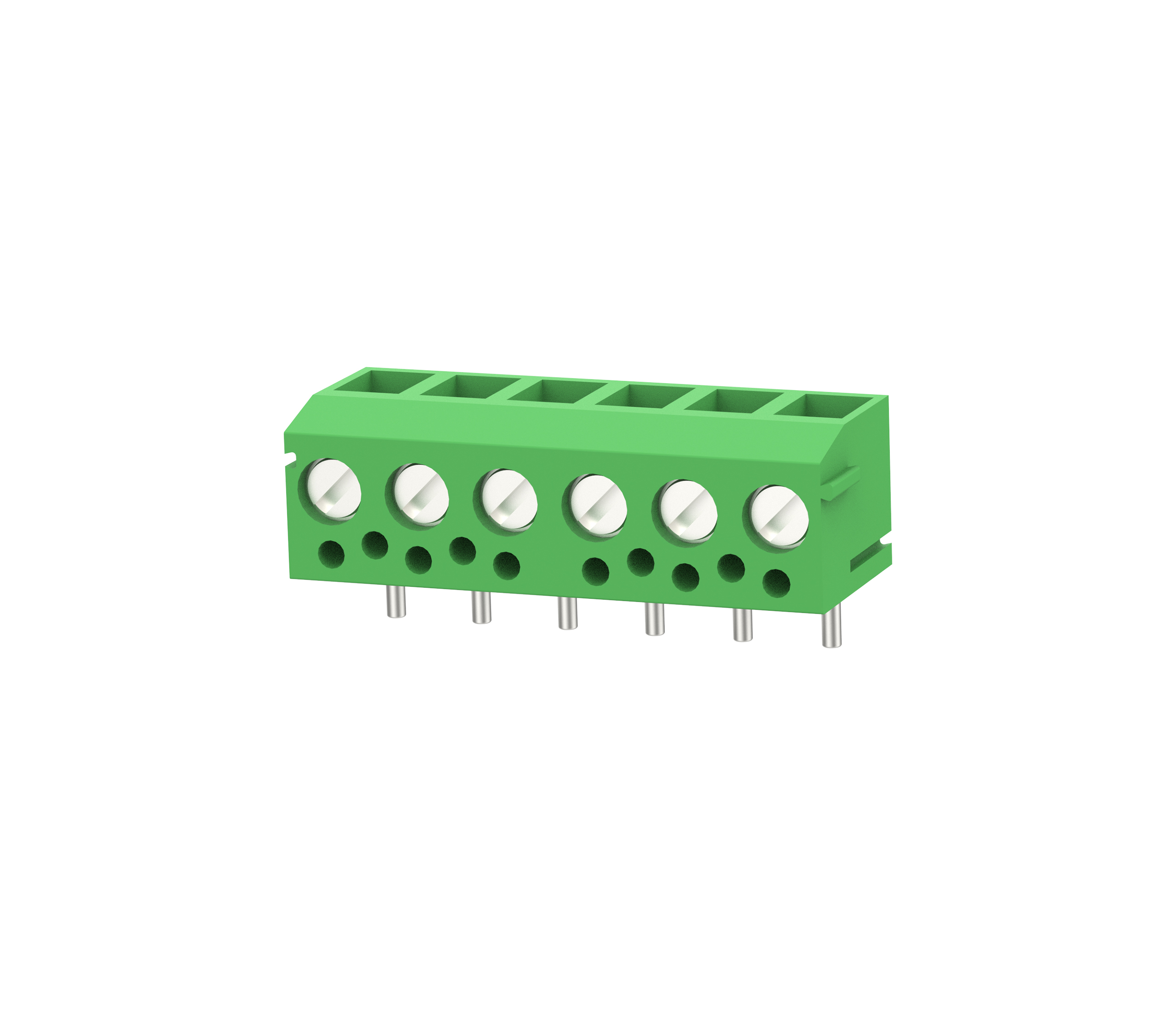

DB300R-5.0 Shrapnel terminal

0
Views: 68
Contact usDownload PDF
  •

    Technical data-UL/CUL



    Use group
    B C D
    Rated voltage
    250V - 250V
    Rated current
    16A - 10A
     Wire range
    22AWG~14AWG
    Rated current
    1.5KV



    Technical data-IEC



     Overvoltage category
    III III II
    Pollution degree
    3 2 2
    Rated voltage
    250V 400V 630V
    Rated current
    24A 24A 24A
     Impulse withstand voltage
    4KV 4KV 4KV
     Conductor cross section
    0.5mm²~2.5mm²



    Material data



    Insulating material
    PA66
    Flammability rating according to UL94
    V0
    Contact material
    Copper alloy
    Surface characteristics
    Tin-plated



    Other data



     Pitch/Poles
    5.0mm/2~24P
     Stripping Length
    5mm~6mm
     Screw/Torque(Max)
    M3/0.5N.m
     Operating temperature
    -40℃ ... 105℃[ -40 ... 221 °F ]
     Soldering temperature
    250℃/5s
     Pin dimensions
    Ø1.0mm
    PCB hole diameter
    Ø1.2mm

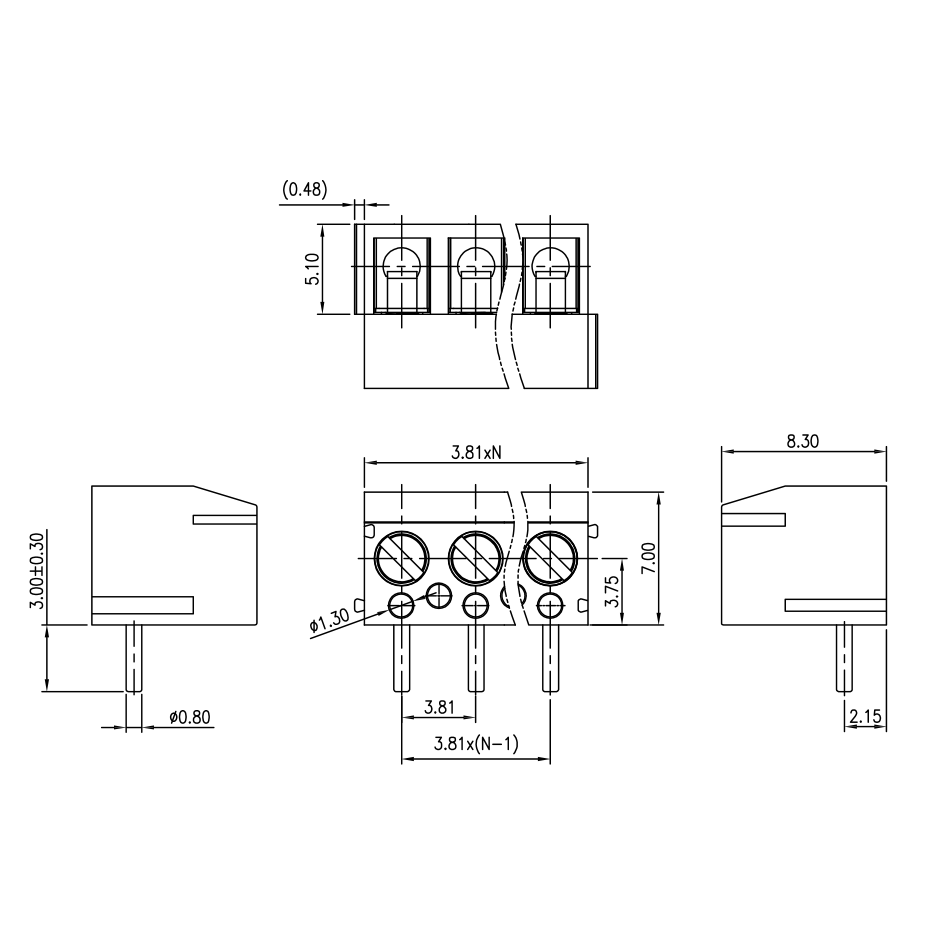

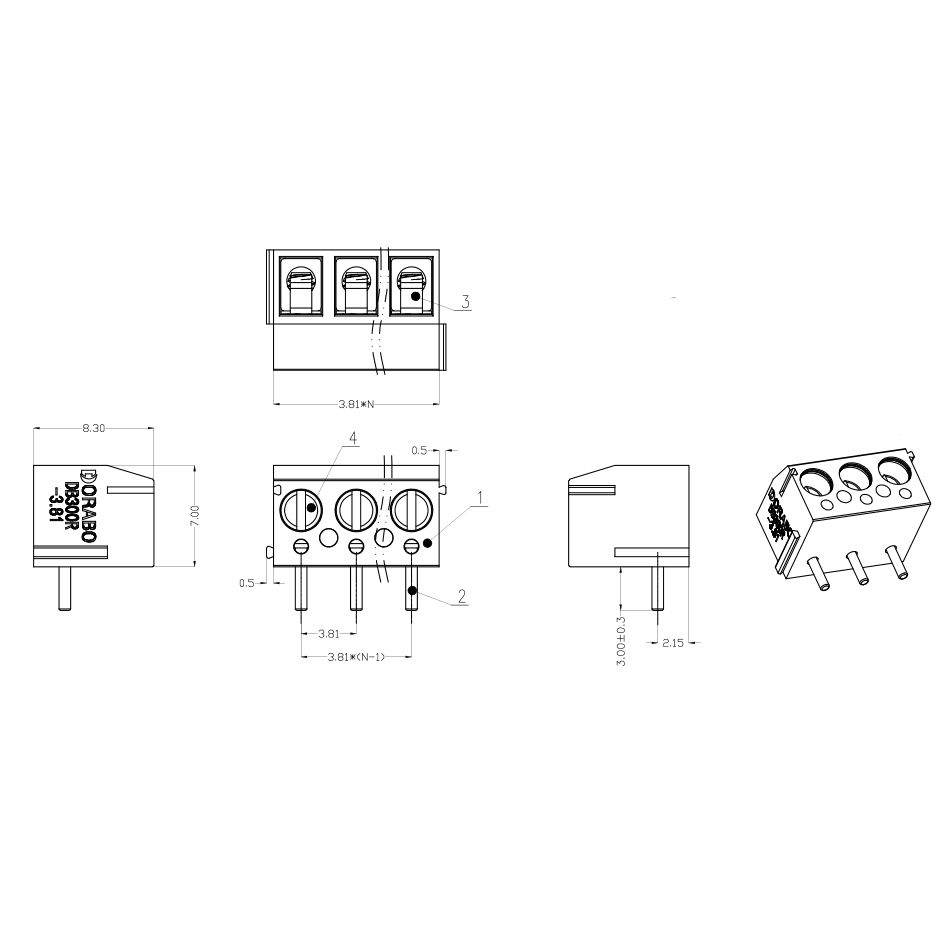

    Dimensional drawing

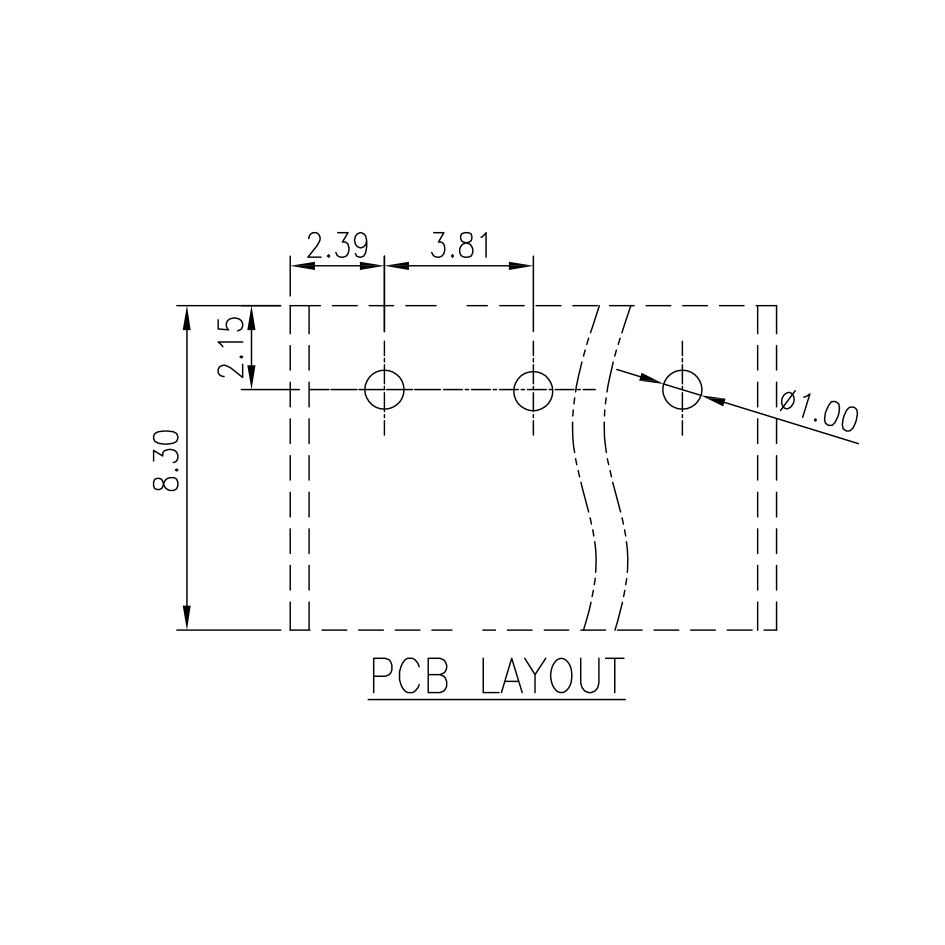

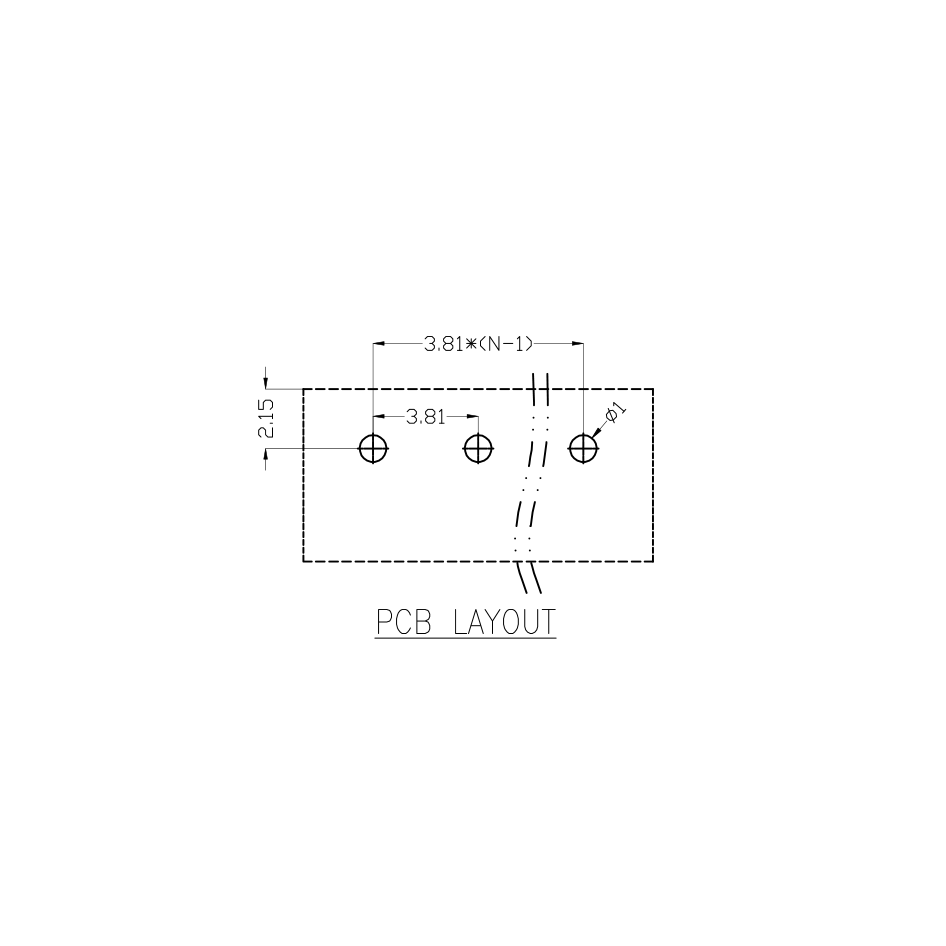

    Dimensions for PCB design
