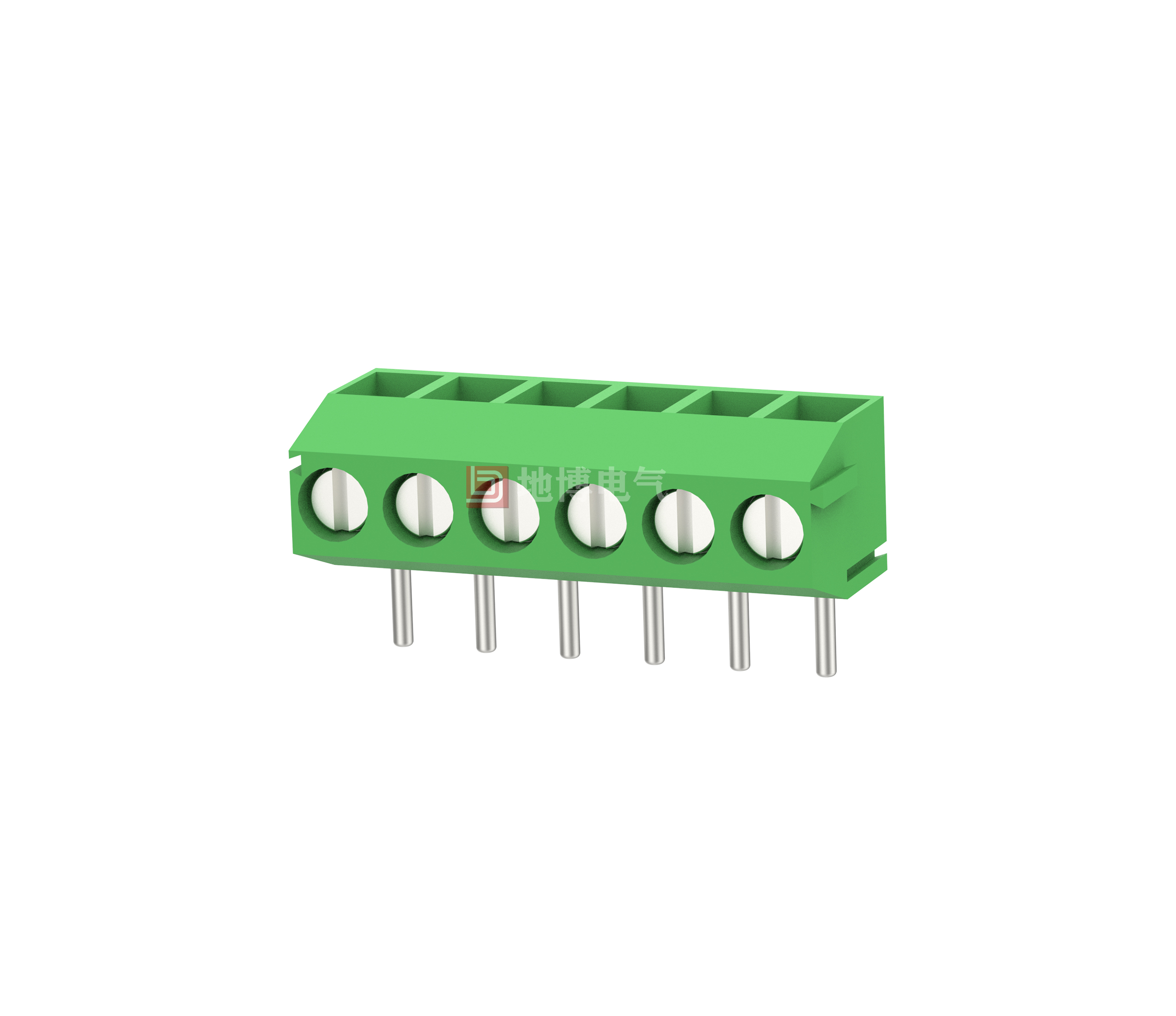

PCB terminal DB301R-3.96

Fixed connectors, Rated current: 10 A, Rated voltage (III/2): 130 V, Rated cross-section: 1 mm2, Number of potentials: 2-24, Number of rows: 1, Number of digits per row: 2-24, Series: DB301R, Pin pitch: 3.96 mm, Wiring: screw connection with wire protection, Mounting: wave soldering, Orientation of lead/PCB connection: 90°, Colour: green, Pin arrangement: Pin [P]: 3.5 mm, Number of pins per potential: 1, Packing type: carton

Advantages

☑ Universal connection for worldwide use
☑ Maximum contact force, low temperature rise
☑ Circular connectors for stable wiring
☑ Allows the connection of two stranded wires
☑ The latch on the side allows the combination of different digits, ensuring a high degree of flexibility in equipment design
0
Views: 1,081
Contact usDownload PDF View 3D Download CAD
  •

    Technical data-UL/CUL



    Use Group
    B C D
    Rate Voltage [V]
    125 - -
    Rated Current [A]
    10 - -
    Wire Range [AWG]
    24~18
    Dielectric Voltage-Withstand
    1.25KV



    Technical data-IEC



    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    160 250 320
    Rated Current [A]
    13.5 13.5 13.5
    Impulse withstand voltage [KV]
    2.5 2.5 2.5
    Conductor cross section [mm²]
    0.5~1.0



    Material Information



    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Sn plated



    General parameters



    Pitch/Poles [mm]/[P]
    3.96/2~24
    Stripping Length [mm]
    5~6
    Screw/Torque(Max)[N.m]
    M2/0.2
    Operating temperature [℃]
    -40~+105
    Soldering temperature
    250℃/5S
    Pin dimensions [mm]
    Ø0.8
    PCB Hole Diameter [mm]
    Ø1.0

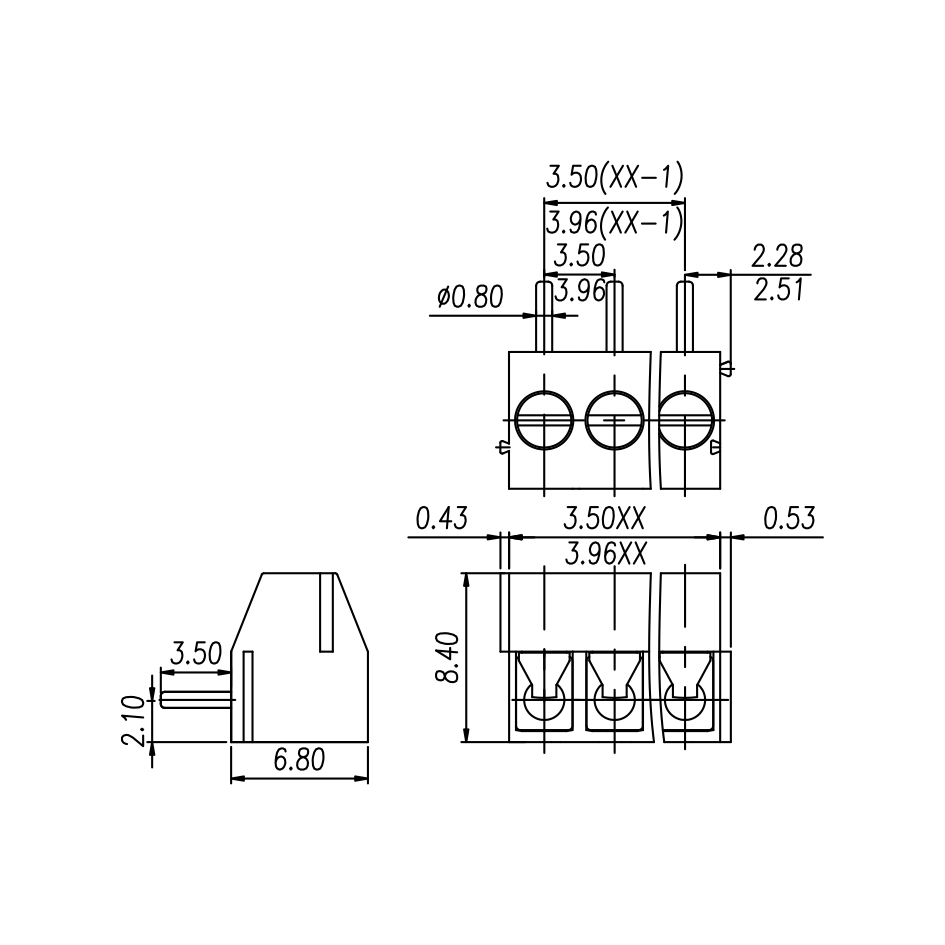

    Dimensional drawings

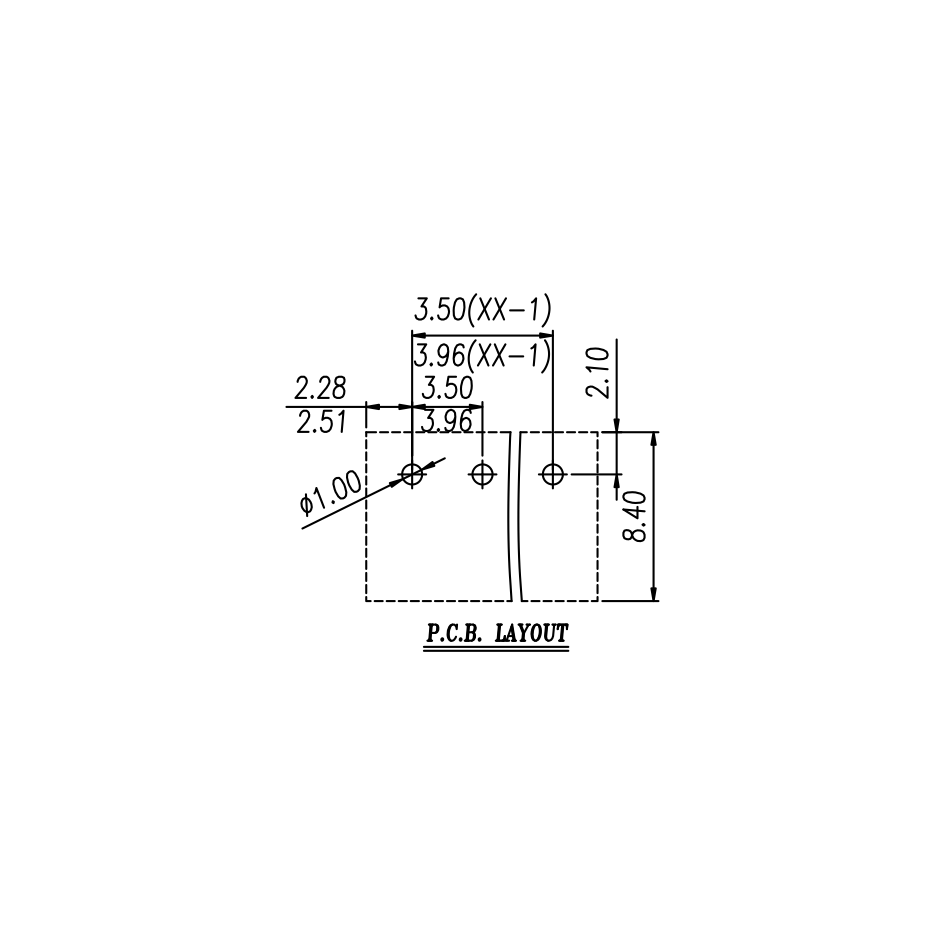

    PCB cut-out diagram
