PCB terminal DB311V-5.0

Fixed terminal blocks, nominal operating current: 7A, rated voltage (III/2) 300V, nominal cross-section: 1.0mm², number of potentials: 2-24, number of rows: 1, number of positions per row: 2-24, product series: DB311V, pin pitch: 5 mm, wiring: screw connection with wire protection, mounting: wave soldering, orientation of wire/PCB connection: 0°, colour : Blue, Pin arrangement: Straight, Pin [P]: 3.5 mm, Number of pins per potential: 1, Packaging type: Carton. When using cold crimp tips, the maximum voltage of 300 V is only reached if the overvoltage type/contamination class II/2 is met.

Advantages

☑ Universal installation ensuring a high degree of flexibility in equipment design
☑ Maximum contact force and low heat-up
☑ Different positions can be combined by means of side latches

0
Views: 5,834
Contact usDownload PDF View 3D Download CAD
  •

    Technical data-UL/CUL



    Use Group
    B C D
    Rate Voltage [V]
    300
    Rated Current [A]
    7
    Wire Range [AWG]
    24~18
    Dielectric Voltage-Withstand
    1.6KV



    Technical data-IEC



    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    160 250 400
    Rated Current [A]
    10 10 10
    Impulse withstand voltage [KV]
    2.5 2.5 2.5
    Conductor cross section [mm²]
    1.0



    Material information



    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Sn plated



    General parameters



    Pitch/Poles [mm]/[P]
    5.0/2~24
    Stripping Length [mm]
    4~5
    Screw/Torque(Max)[N.m]
    M2/0.2
    Operating temperature [℃]
    -40~+105
    Soldering temperature
    250℃/5S
    Pin dimensions [mm]
    Ø0.8
    PCB Hole Diameter [mm]
    Ø1.0

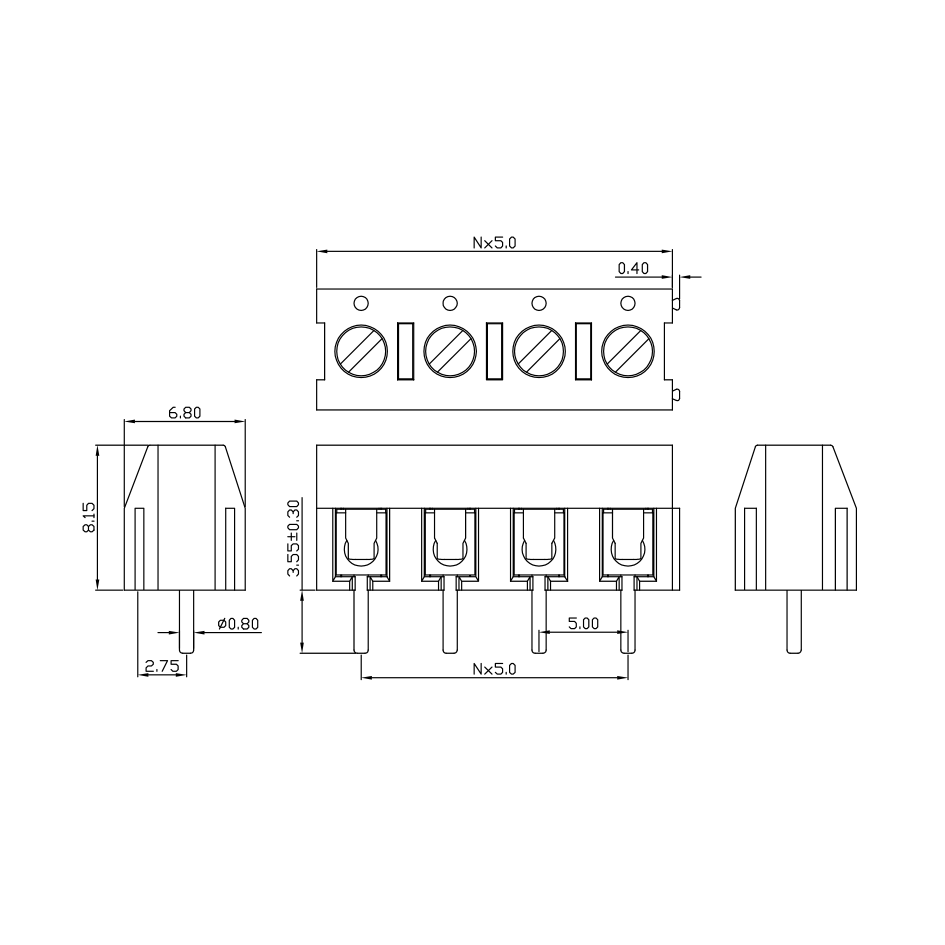

    Dimensional drawings

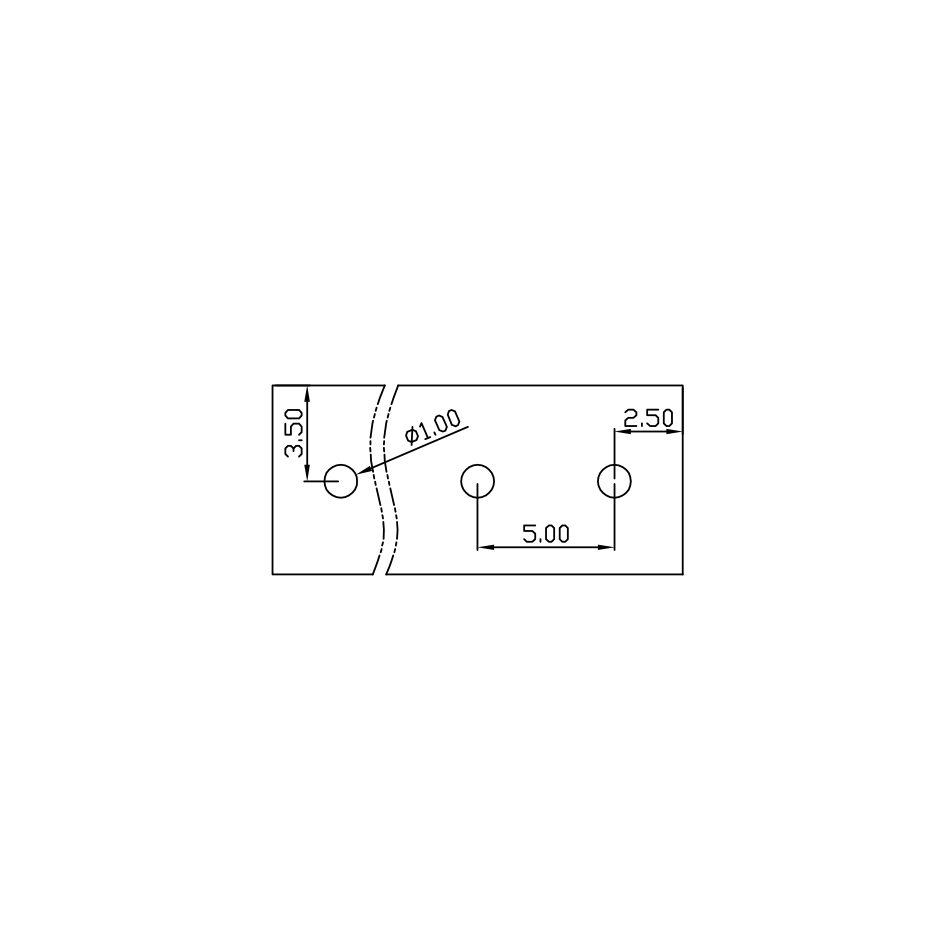

    PCB cut-out diagram
