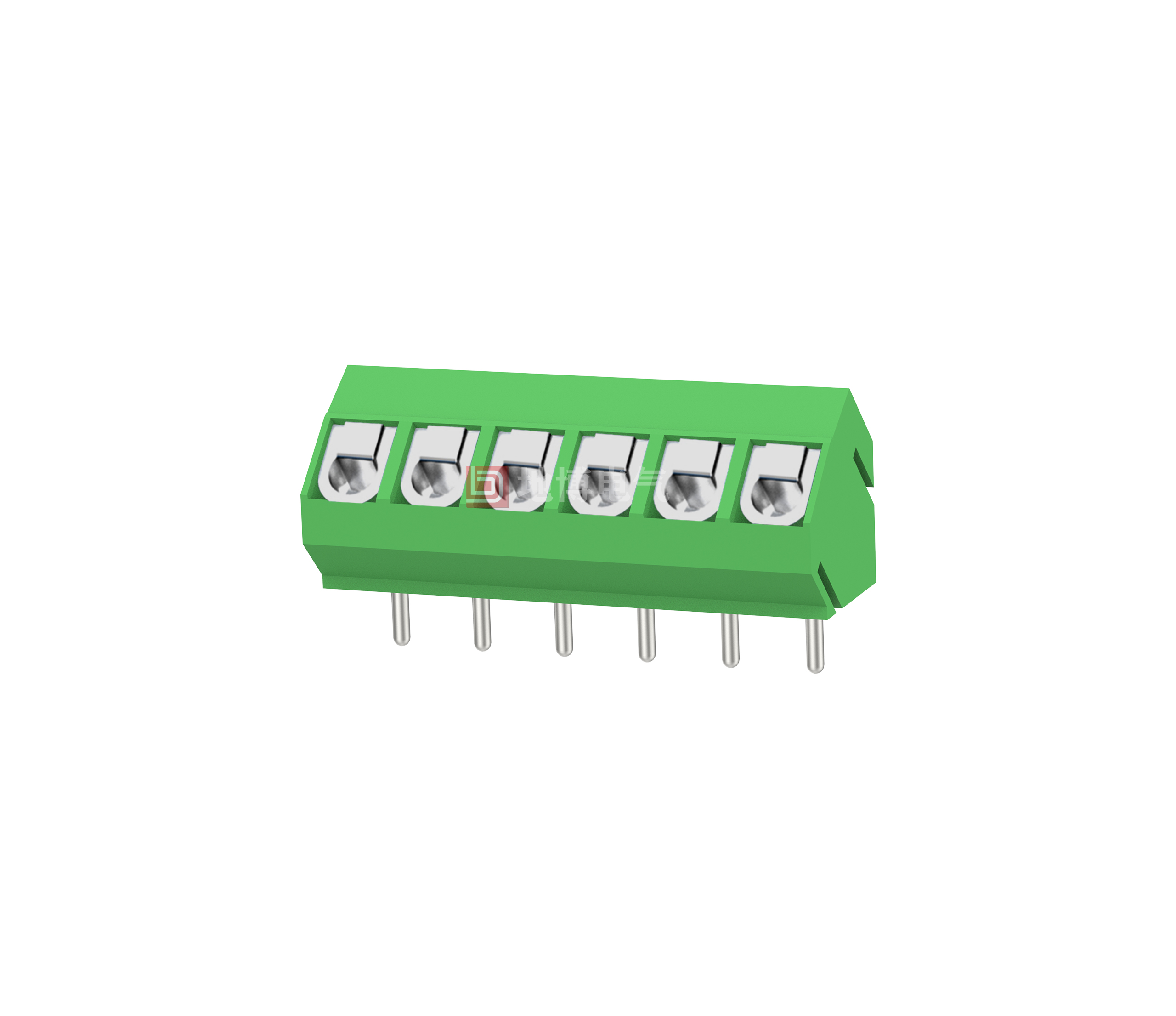

PCB terminal DB301S-5.0

Fixed terminal blocks, nominal operating current: 17.5A, rated voltage (III/2) 250V, nominal cross-section: 1.5mm², number of potentials: 2-24, number of rows: 1, number of digits per row: 2-24, series: DB301S, pin spacing: 5 mm, wiring: screw connection with wire protection, mounting: wave soldering, orientation of wire/PCB connection: 45°, colour: blue, pin arrangement: straight, pin [P]: 3.5 mm, number of pins per potential: 1, packaging type: carton Colour: blue, Pin arrangement: straight, Pin [P]: 3.5 mm, Number of pins per potential: 1, Packing type: carton. When using cold crimp tips, the maximum voltage of 250 V is only reached if the overvoltage type/contamination class II/2 is met.

Advantages

☑ Universal installation ensuring a high degree of flexibility in equipment design
☑ Maximum contact force and low heat-up
☑ Different positions can be combined by means of side latches

0
Views: 5,245
Contact usDownload PDF View 3D Download CAD
  •

    Technical data-UL/CUL



    Use Group
    B C D
    Rate Voltage [V]
    250 - 250
    Rated Current [A]
    16 - 10
    Wire Range [AWG]
    22~14
    Dielectric Voltage-Withstand
    1.5KV



    Technical data-IEC



    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    250 400 630
    Rated Current [A]
    17.5 17.5 17.5
    Impulse withstand voltage [KV]
    4 4 4
    Conductor cross section [mm²]
    0.5~1.5



    Material information



    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Sn plated



    General parameters



    Pitch/Poles [mm]/[P]
    5.0/2~24
    Stripping Length [mm]
    5~6
    Screw/Torque(Max)[N.m]
    M2.5/0.4
    Operating temperature [℃]
    -40~+105
    Soldering temperature
    250℃/5S
    Pin dimensions [mm]
    Ø1.0
    PCB Hole Diameter [mm]
    Ø1.2

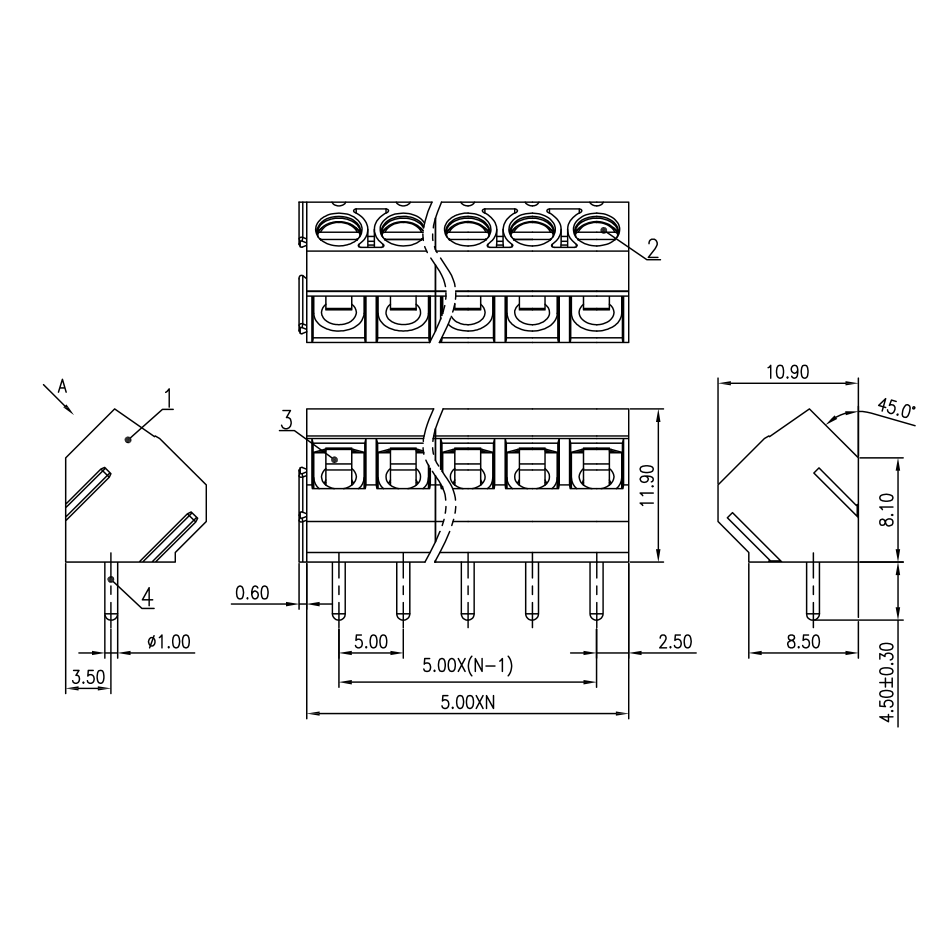

    Dimensional drawings

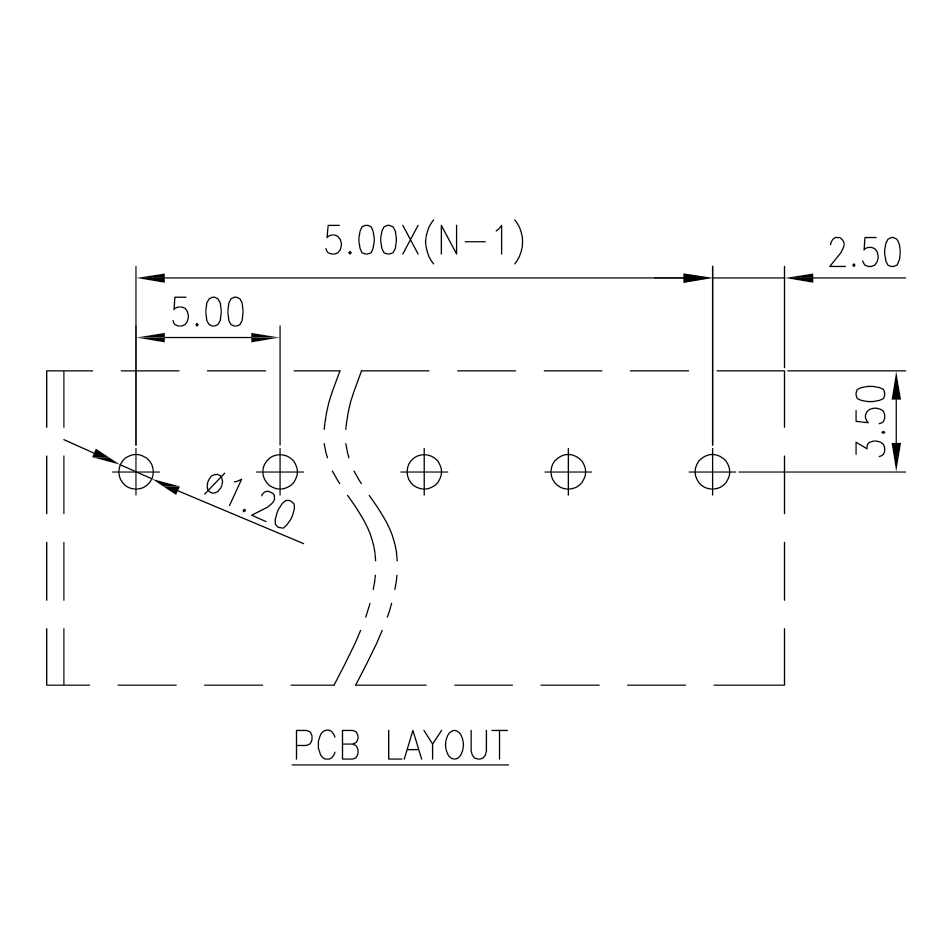

    PCB cut-out diagram
