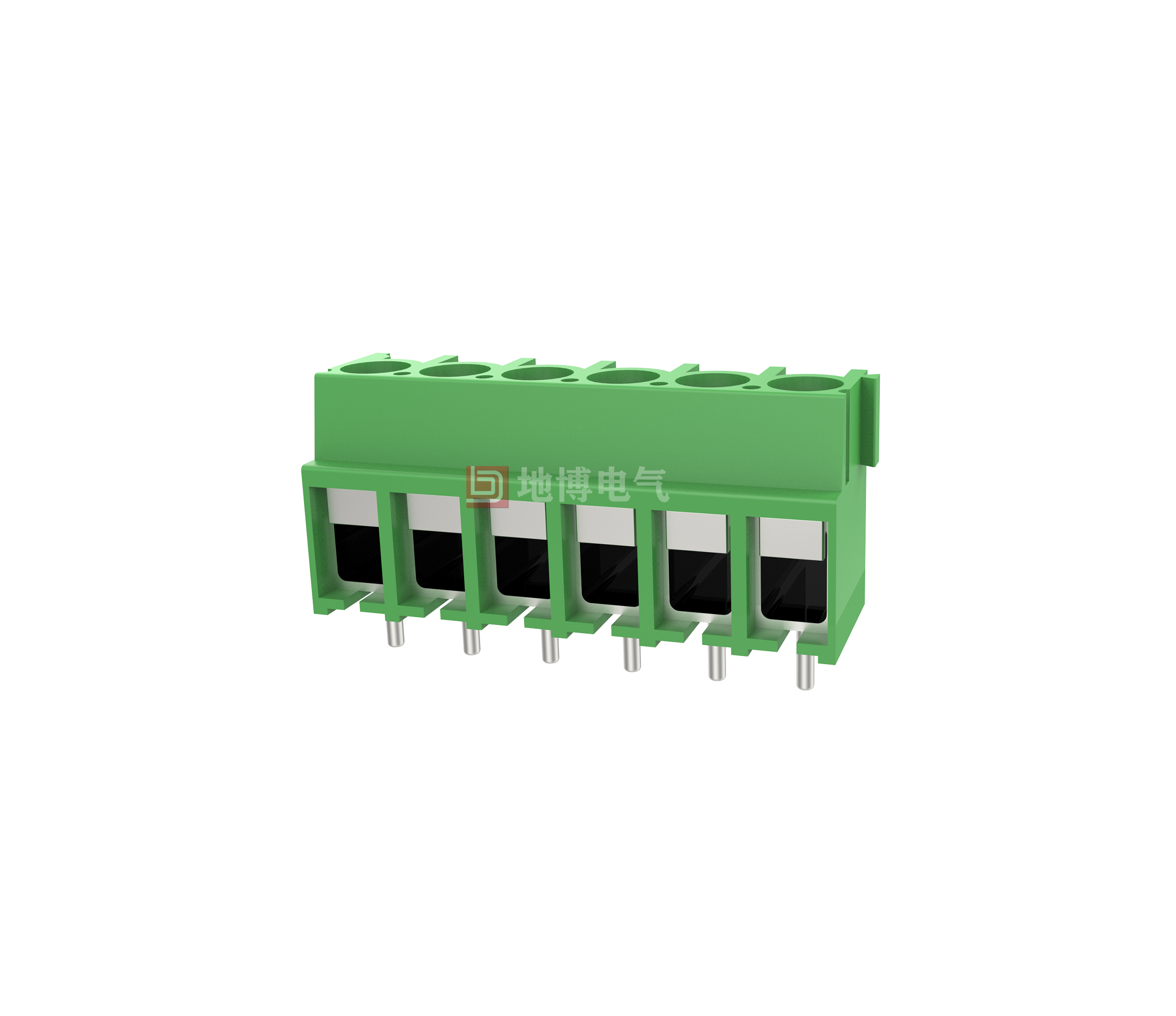

PCB terminal DB302-5.0

Fixed connectors, Rated current: 32 A, Rated voltage (III/2): 400 V, Rated cross-section: 2.5 mm2, Number of potentials: 2-24, Number of rows: 1, Number of pins per row: 2-24, Series: DB302, Pin pitch: 5 mm, Wiring: screw connection with wire protection, Mounting: wave soldering, Orientation of wire/PCB connection: 0°, Colour: green, Pin arrangement: straight Pin [P]: 4.1 mm, Number of pins per potential: 1, Packing type: carton. When using cold crimp tips, the maximum voltage of 250 V is only reached if the overvoltage type/contamination class II/2 is met.

Advantages

☑Universal connection for worldwide use
☑Maximum contact force, low temperature rise
☑Square connector with high wiring capacity
☑Allows connection of two stranded wires
☑Various bit combinations possible via side latches



0
Views: 6,987
Contact usDownload PDF View 3D Download CAD
  •

    Technical data-UL/CUL



    Use Group
    B C D
    Rate Voltage [V]
    300 - 300
    Rated Current [A]
    20 - 10
    Wire Range [AWG]
    20~10
    Dielectric Voltage-Withstand
    2KV



    Technical data-IEC



    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    400 250 400
    Rated Current [A]
    32 32 32
    Impulse withstand voltage [KV]
    4 4 4
    Conductor cross section [mm²]
    0.5~4.0



    Material information



    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Sn plated



    General parameters



    Pitch/Poles [mm]/[P]
    5.0/2~24
    Stripping Length [mm]
    6.5
    Screw/Torque(Max)[N.m]
    M3/0.5
    Operating temperature [℃]
    -40~+105
    Soldering temperature
    250℃/5S
    Pin dimensions [mm]
    Ø1.0
    PCB Hole Diameter [mm]
    Ø1.2





    Dimensional drawings





    PCB cut-out diagram
