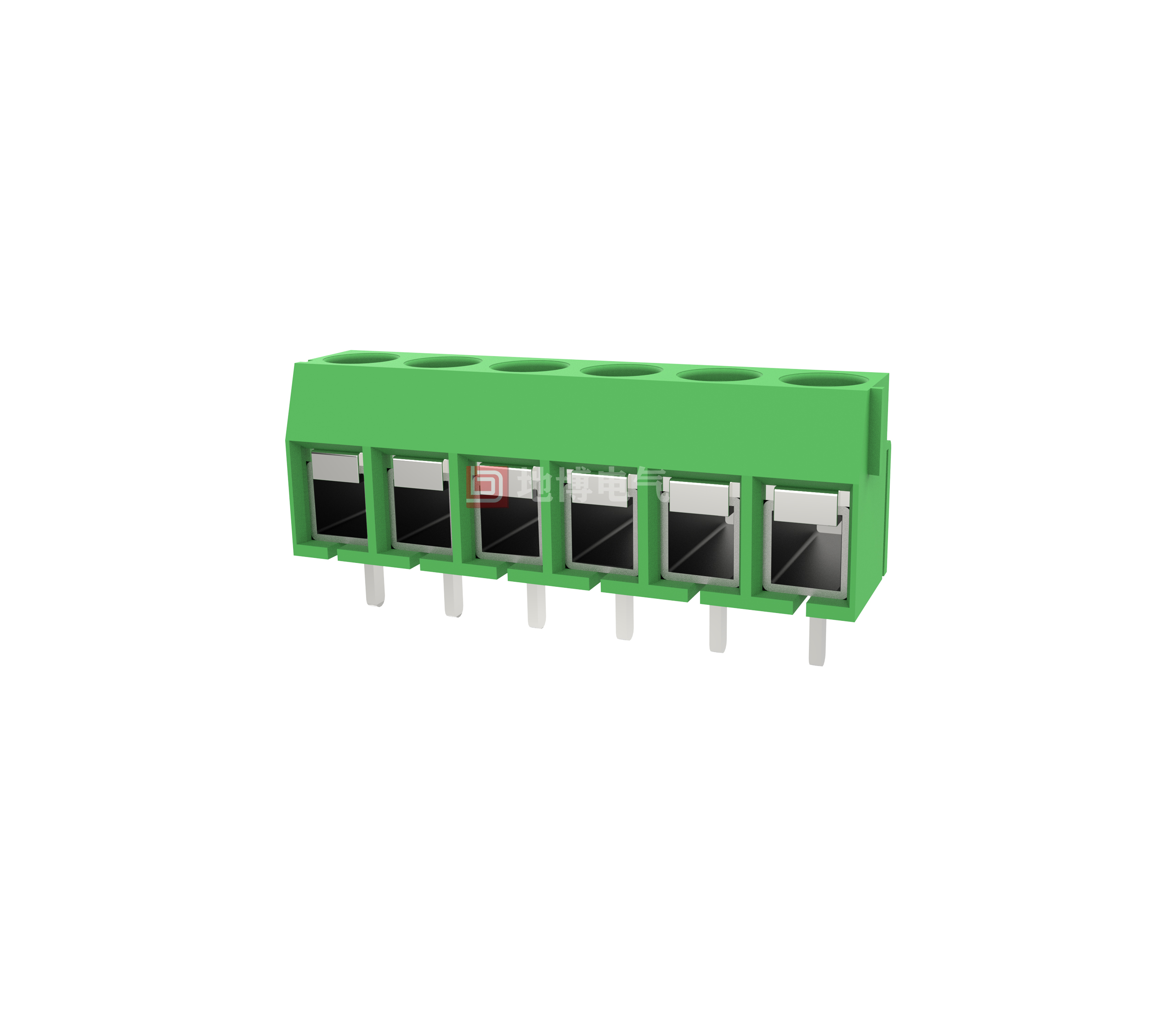

PCB terminals DB126V-5.0

Fixed connectors, Nominal operating current: 18 A, Rated voltage (III/2): 250 V, Nominal cross-section: 2.5 mm2, Number of potentials: 2-24, Number of rows: 1, Number of pins per row: 2-24, Series: DB126V, Pin pitch: 5 mm, Wiring: Screw connection with wire protection, Mounting: Wave soldering, Wire/PCB connection direction: 0°, Colour: green, Pin arrangement Pin [P]: 3.5 mm, Number of pins per potential: 1, Packing type: carton. When using cold crimp tips, the maximum voltage of 250 V is only reached if the overvoltage type/contamination class II/2 is met.

Advantages

☑ Universal connection for worldwide use
☑ Maximum contact force, low temperature rise
☑ Square connector with high wiring capacity
☑ Allows connection of two stranded wires
☑ Various bit combinations possible via side latches
0
Views: 38
Contact usDownload PDF
  •

    Technical data-UL/CUL



    Use Group
    B C D
    Rate Voltage [V]
    300 - 300
    Rated Current [A]
    8 - 8
    Wire Range [AWG]
    26~14
    Dielectric Voltage-Withstand
    1.6KV



    Technical data-IEC



    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    250 400 630
    Rated Current [A]
    18 18 18
    Impulse withstand voltage [KV]
    4 4 4
    Conductor cross section [mm²]
    0.5~2.5



    Material information



    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Sn plated



    General parameters



    Pitch/Poles [mm]/[P]
    5.0/2~24
    Stripping Length [mm]
    6~7
    Screw/Torque(Max)[N.m]
    M2.5/0.25
    Operating temperature [℃]
    -40~+105
    Soldering temperature
    250℃/5S
    Pin dimensions [mm]
    0.6*1.0
    PCB Hole Diameter [mm]
    Ø1.4



    Dimensional drawings





    PCB cut-out diagram
