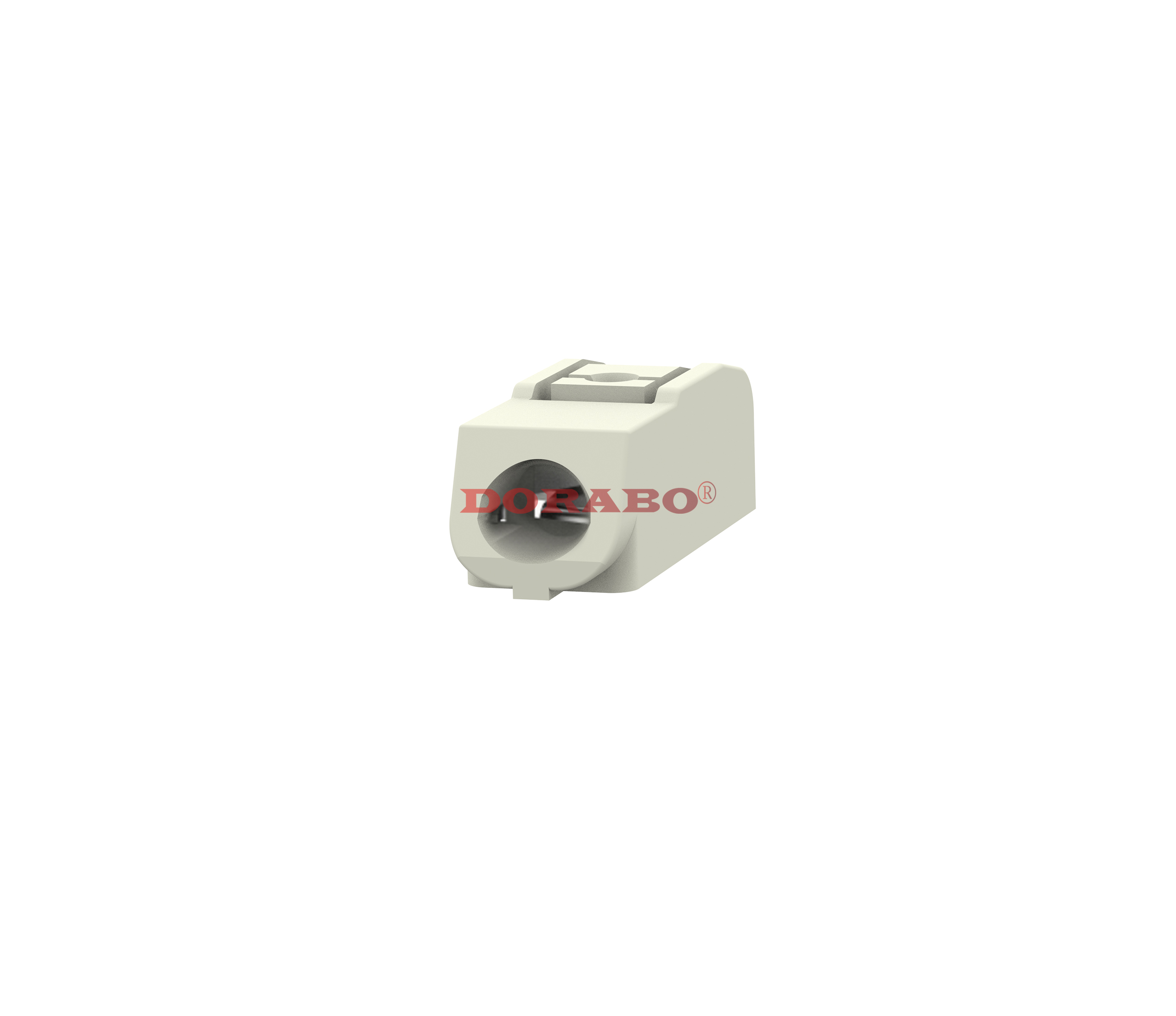

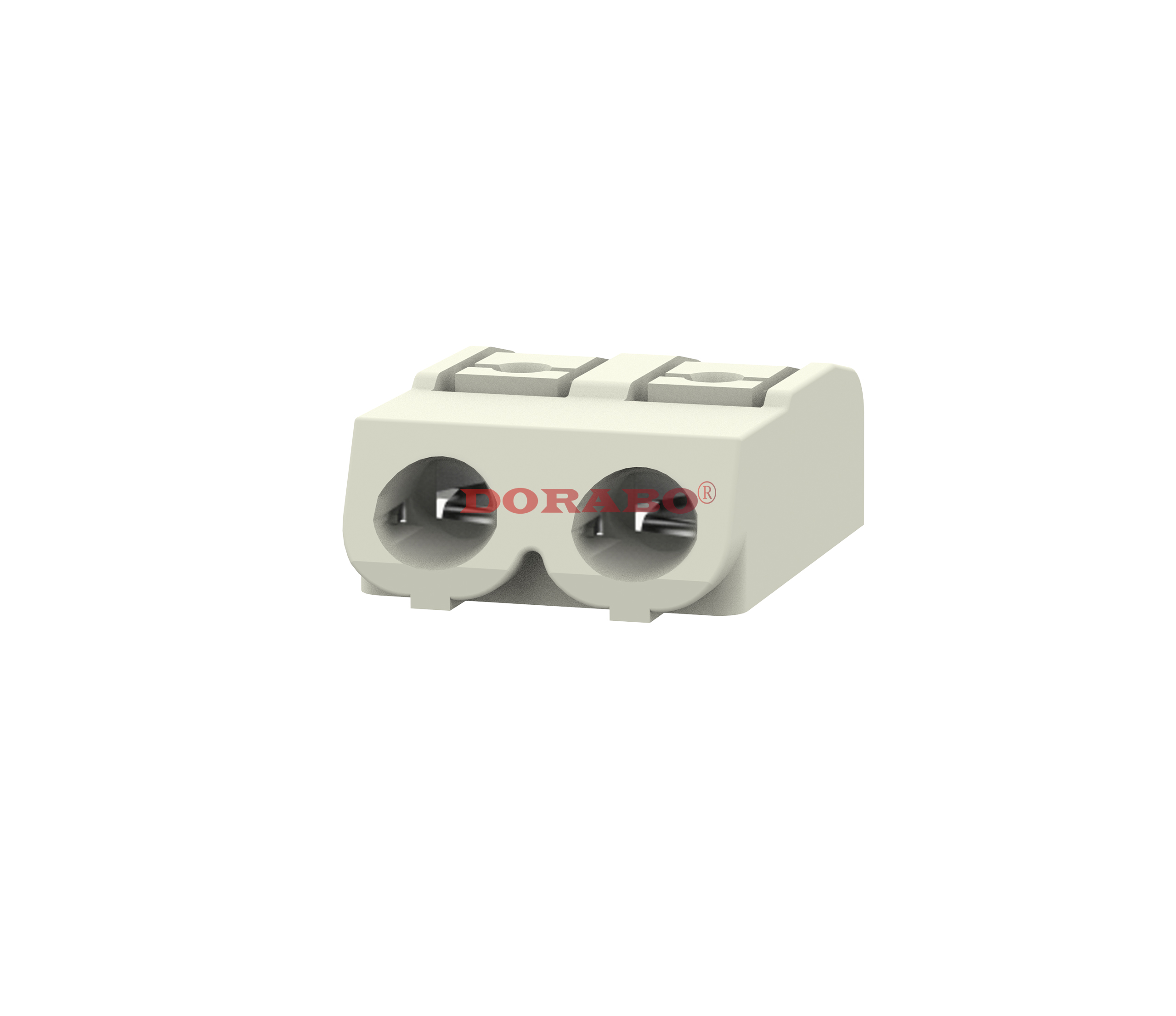

Spring Clamp Terminal DB2052-3.0

PCB Terminal Block, Rated Current: 3 A, Rated Voltage (III/2): 160 V, Rated Cross-sectional Area: 0.5 mm², Number of Poles: 1-3, Number of Rows: 1, Positions per Row: 1-3, Product Series: DB2052, Pin Pitch: 3.0 mm, Connection Method: Push-in Spring Connection, Mounting: SMD, Wire/PCB Connection Direction: 0°, Color: White, Number of Solder Pins per Potential: 1, Packaging Type: Reel Tape Packaging

Advantages

☑ SMD PCB Terminal Block with Push-in Spring Connection Unit (PUSH WIRE®)
☑ Height is only 2.7 mm.
☑ Wire removal can be easily performed using the operating tool.
☑ Assembled without occupying pole positions.
☑ Reel tape packaging suitable for automatic assembly.
☑  Solid conductors can be inserted directly.
0
Views: 20
Contact usDownload PDF View 3D Download CAD

  • Technical data-UL/CUL



     Use Group
    B C D
     Rate Voltage [V]
    250 - -
     Rated Current [A]
    3 - -
     Wire Range [AWG]
    22~26
     Dielectric Voltage-Withstand
    2000V/1Min



    Technical data-IEC



     Overvoltage Category
    III III II
     Contamination Class
    3 2 2
     Rated Voltage [V]
    63 160 350
     Rated Current [A]
    3 3 3
     Impulse withstand voltage [KV]
    2.5 2.5 2.5
     Conductor cross section [mm²]
    0.3



    Materials information



     Insulation Material
    LCP
     Flame relardant rating
    UL94V-0
     Conductor Material
    Copper alloy
     Plating of conductor surface
    Sn plated



    General parameters



     Pitch/Poles [mm]/[P]
    3.0/1~3
     Stripping Length [mm]
    /
     Screw/Torque(Max)[N.m]
    /
     Operating temperature [℃]
    -40~+105
     Soldering temperature
    /
     Pin dimensions [mm]
    /
     PCB Hole Diameter [mm]
    /







    Dimensional drawings
