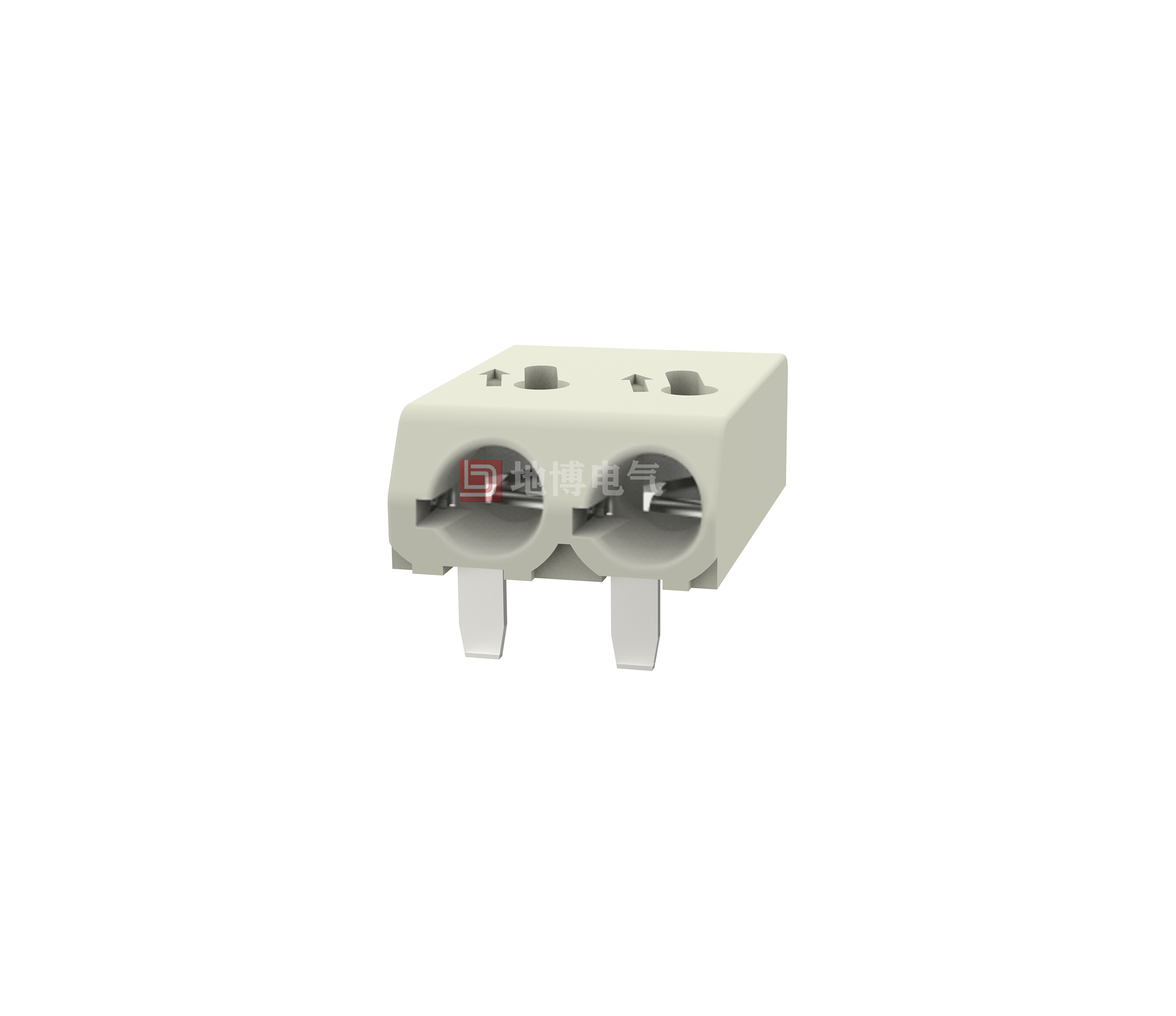

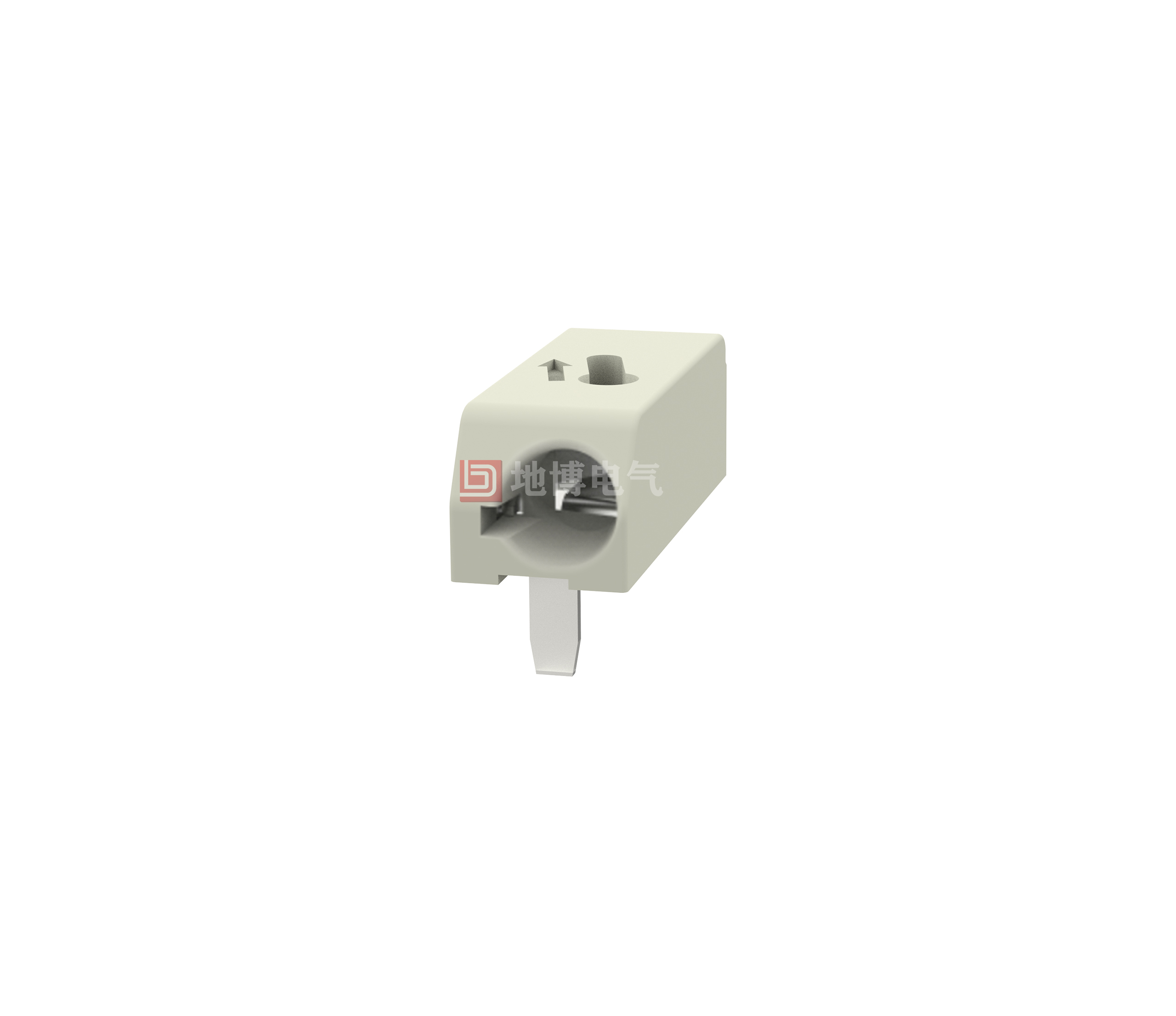

PCB terminal block, Rated current: 9 A, Rated voltage (III/2): 160 V, Rated cross-sectional area: 0.75 mm², Number of poles: 1-3, Number of rows: 1, Number of positions per row: 1-3, Product series: DB2062C, Pin pitch: 4.0 mm, Connection method: Push-in spring connection, Mounting: SMD, Wire/PCB connection direction: 0°, Color: White, Number of solder pins per potential: 1, Packaging type: Reel tape packaging
☑ SMD PCB terminal block with push-button, featuring a Push-in CAGE CLAMP® connection unit.
☑ Solid and finely stranded wires with ferrules can be inserted directly.
☑ Connection of fine-stranded wires and wire removal can be easily accomplished via the push-button.
☑Height is only 4.5 mm.
☑ Reel tape packaging suitable for automatic assembly.
| Use Group |
|
||||
|---|---|---|---|---|---|
| Rate Voltage [V] |
|
||||
| Rated Current [A] |
|
||||
| Wire Range [AWG] |
|
||||
| Dielectric Voltage-Withstand | 1600V/1Min | ||||
| Overvoltage Category |
|
||||
|---|---|---|---|---|---|
| Contamination Class |
|
||||
| Rated Voltage [V] |
|
||||
| Rated Current [A] |
|
||||
| Impulse withstand voltage [KV] |
|
||||
| Conductor cross section [mm²] |
|
||||
| Insulation Material |
|
||
|---|---|---|---|
| Flame relardant rating |
|
||
| Conductor Material |
|
||
| Plating of conductor surface |
|
||
| Pitch/Poles [mm]/[P] |
|
||
|---|---|---|---|
| Stripping Length [mm] |
|
||
| Screw/Torque(Max)[N.m] |
|
||
| Operating temperature [℃] |
|
||
| Soldering temperature |
|
||
| Pin dimensions [mm] |
|
||
| PCB Hole Diameter [mm] |
|
||
