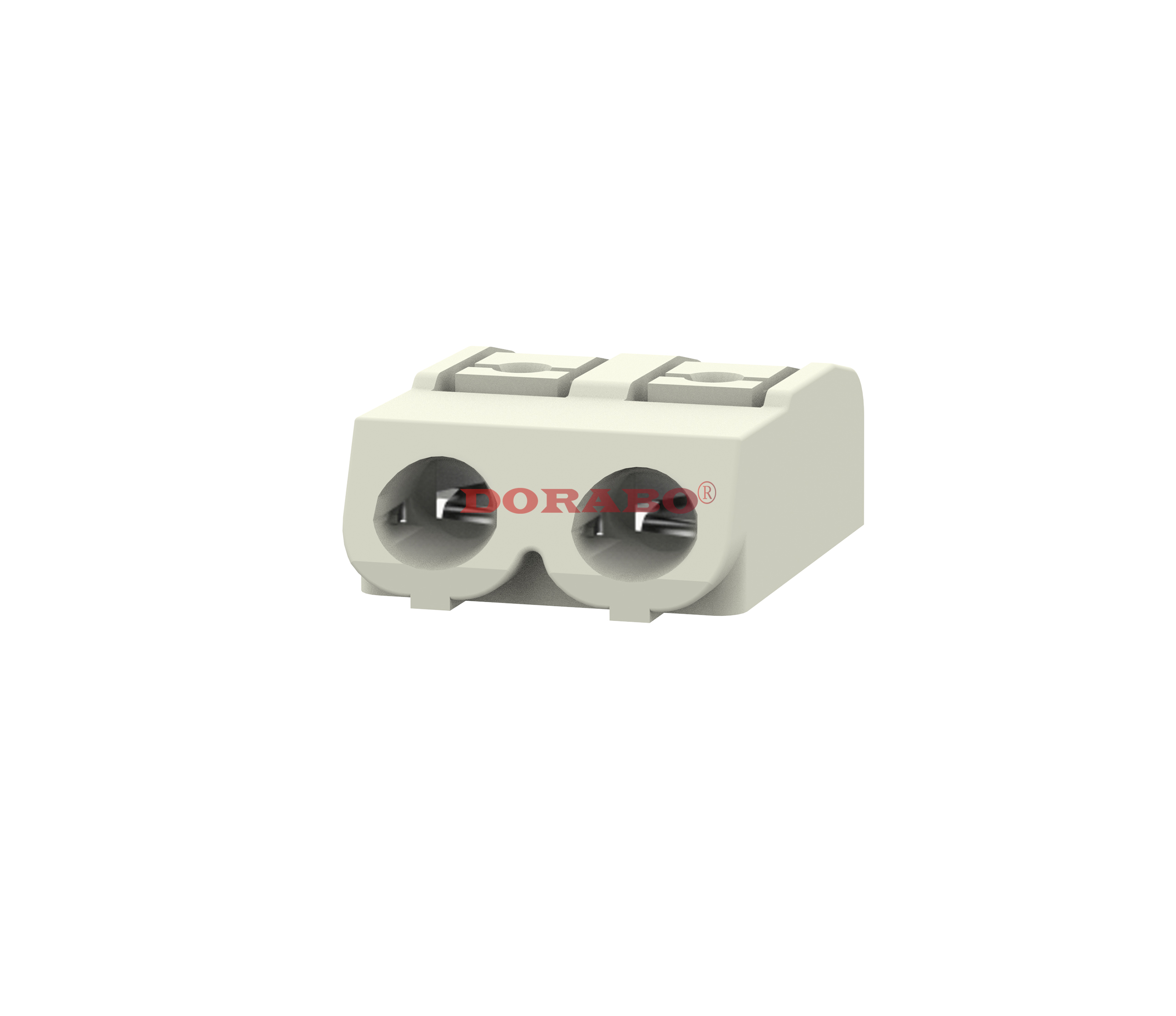

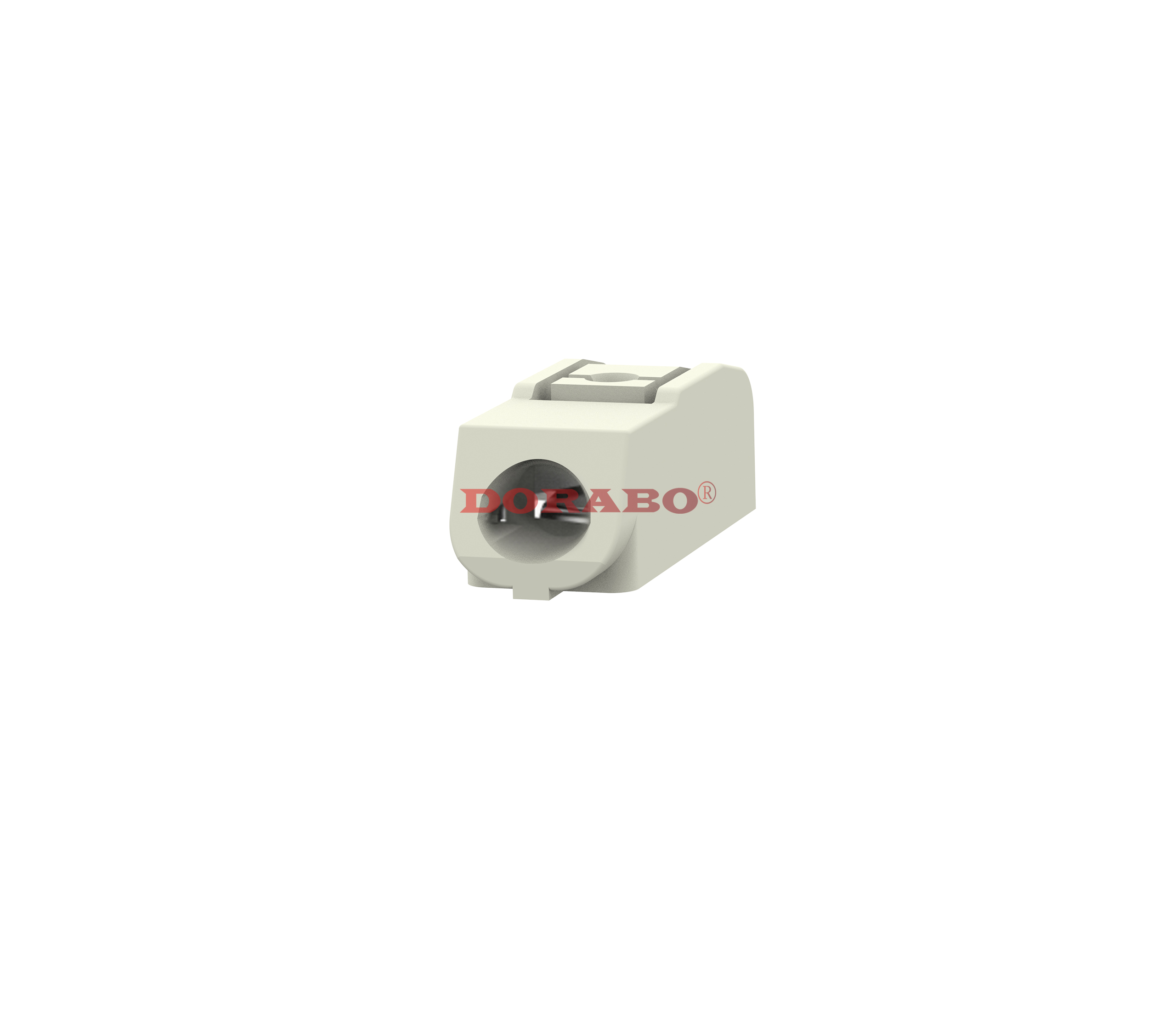

PCB Terminal Block, Rated Current: 10 A, Rated Voltage (III/2): 300 V, Rated Cross-sectional Area: 1.5 mm², Number of Poles: 1-3, Number of Rows: 1, Positions per Row: 1-3, Product Series: DB2072, Pin Pitch: 6.0 mm, Connection Method: Push-in Spring Connection, Mounting: SMD, Wire/PCB Connection Direction: 0°, Color: White, Number of Solder Pins per Potential: 1, Packaging Type: Reel Tape Packaging
☑ SMD PCB terminal block with push-button, featuring a Push-in CAGE CLAMP® connection unit
☑ Height is only 5.6 mm
☑ Solid and finely stranded wires with ferrules can be inserted directly
☑ Push-button connection method allows easy connection and removal of almost all wire types
☑ Reel tape packaging suitable for automatic assembly
| Use Group |
|
||||
|---|---|---|---|---|---|
| Rate Voltage [V] |
|
||||
| Rated Current [A] |
|
||||
| Wire Range [AWG] |
|
||||
| Dielectric Voltage-Withstand | 1600V/1Min | ||||
| Overvoltage Category |
|
||||
|---|---|---|---|---|---|
| Contamination Class |
|
||||
| Rated Voltage [V] |
|
||||
| Rated Current [A] |
|
||||
| Impulse withstand voltage [KV] |
|
||||
| Conductor cross section [mm²] |
|
||||
| Insulation Material |
|
||
|---|---|---|---|
| Flame relardant rating |
|
||
| Conductor Material |
|
||
| Plating of conductor surface |
|
||
| Pitch/Poles [mm]/[P] |
|
||
|---|---|---|---|
| Stripping Length [mm] |
|
||
| Screw/Torque(Max)[N.m] |
|
||
| Operating temperature [℃] |
|
||
| Soldering temperature |
|
||
| Pin dimensions [mm] |
|
||
| PCB Hole Diameter [mm] |
|
||
