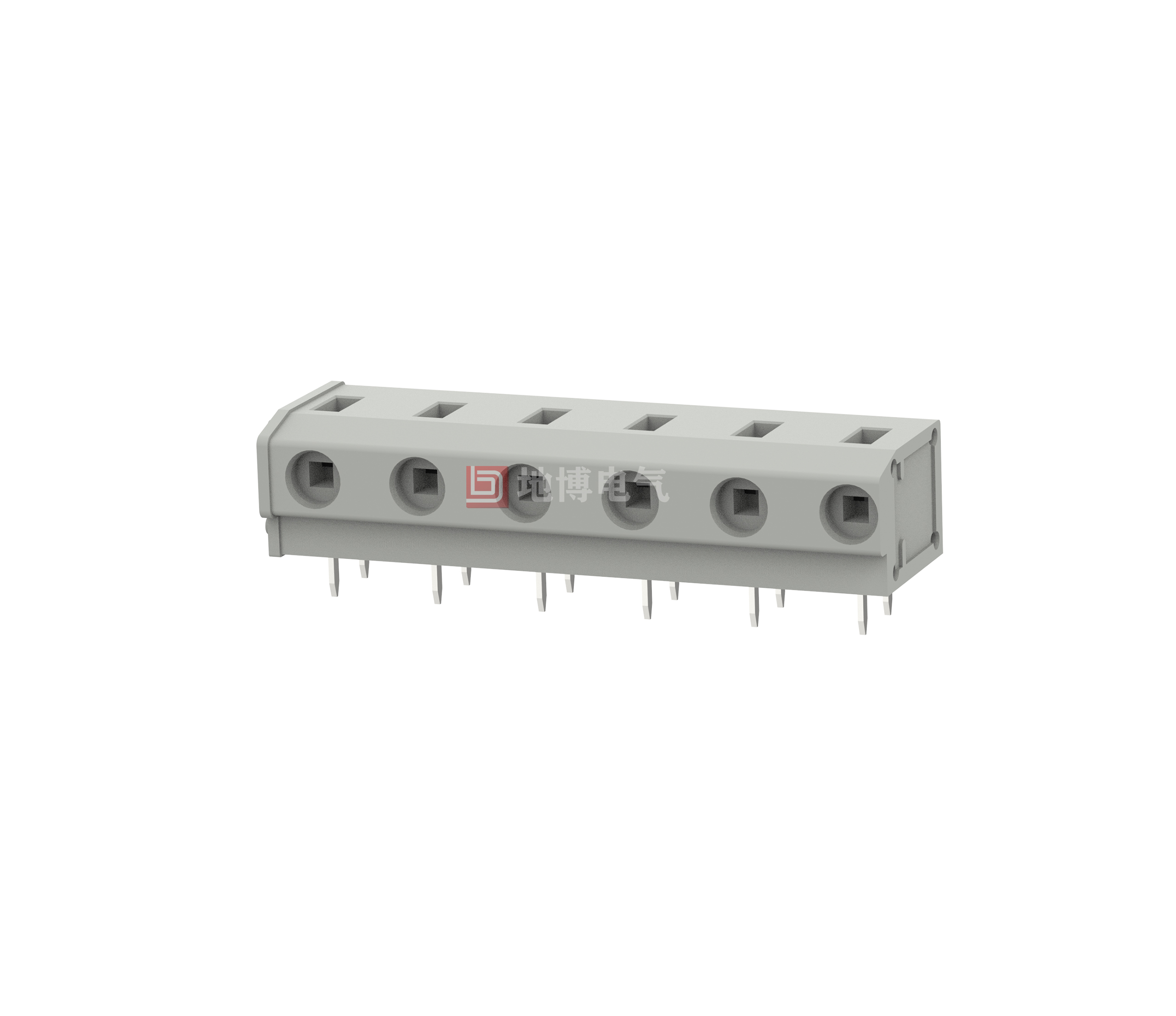

DB142R-7.62 Spring type terminal

0
Views: 60
Contact usDownload PDF
  •

    Technical data-UL/CUL



     Use group
    B C D
    Rated voltage
    300V - 300V
    Rated current
    10A - 10A
     Wire range
    24~14AWG
     Withstand voltage
    1.6KV




    Technical data-IEC



     Overvoltage category
    III III II
    Pollution degree
    3 2 2
    Rated voltage
    500V 630V 1000V
    Rated current
    15A 15A 15A
     Impulse withstand voltage
    6KV 6KV 6KV
     Conductor cross section
    0.2~1.5mm²



    Material data



    Insulating material
    PA66
    Flammability rating according to UL94  V0
    Contact material
    Copper alloy
    Surface characteristics Tin-plated



    Other data



     Pitch/Poles
    7.5mm 7.62mm/2~24P
     Stripping length
    10~11mm
    螺丝/扭矩 Screw/Torque(Max)[N.m]
    /
    Operating temperature  -40°C...105 °C [ -40...221 °F ]
     Soldering temperature
    250℃/5S
     Pin dimensions
    1.0*0.5mm
     PCB hole diameter
    ∅1.4mm

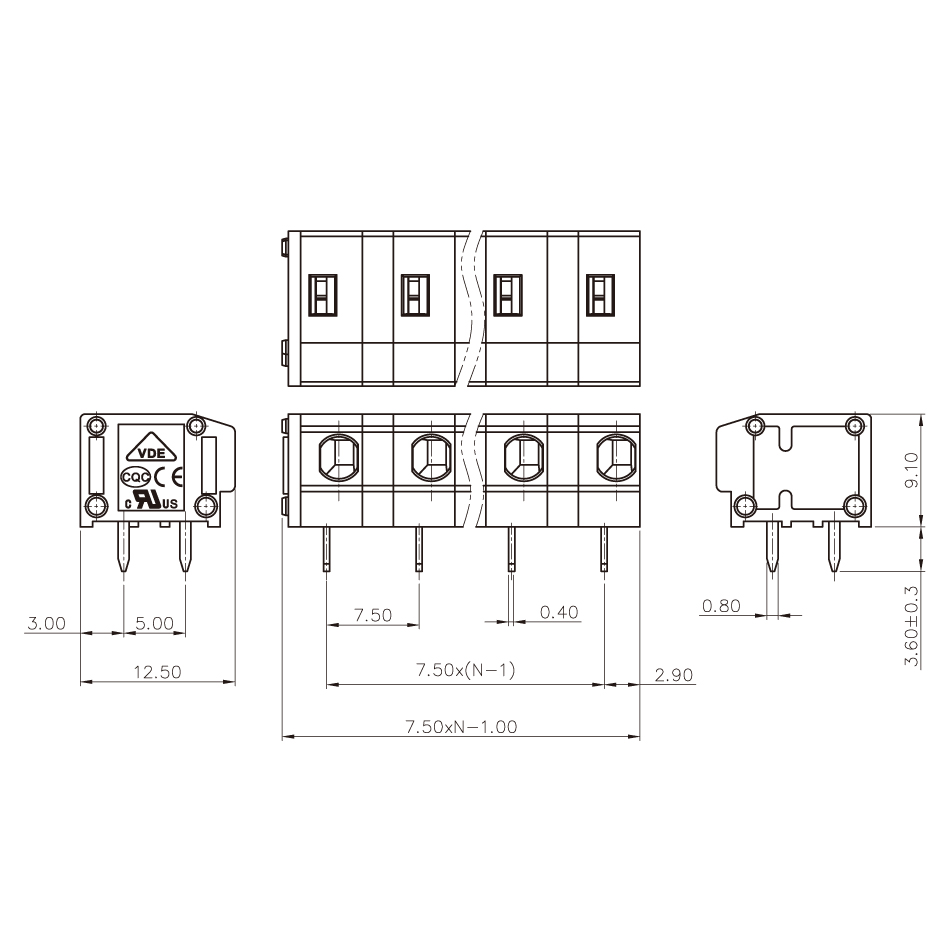

    Dimensional drawing

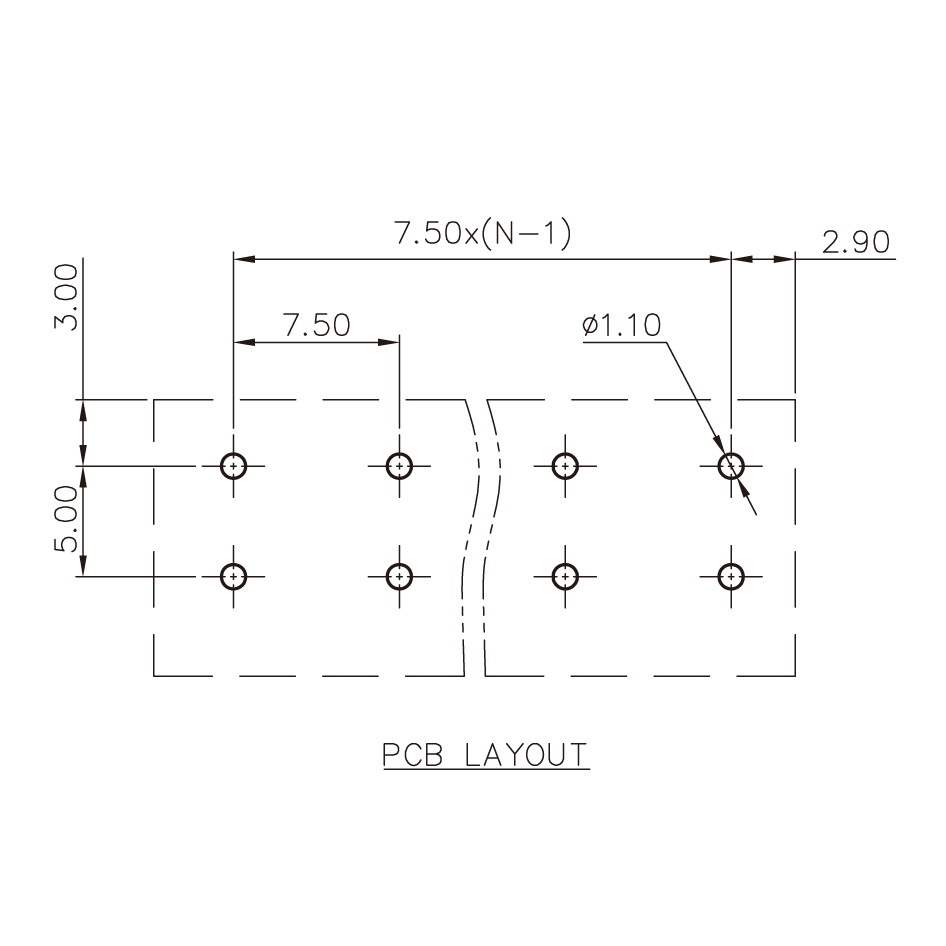

    Dimensions for PCB design
