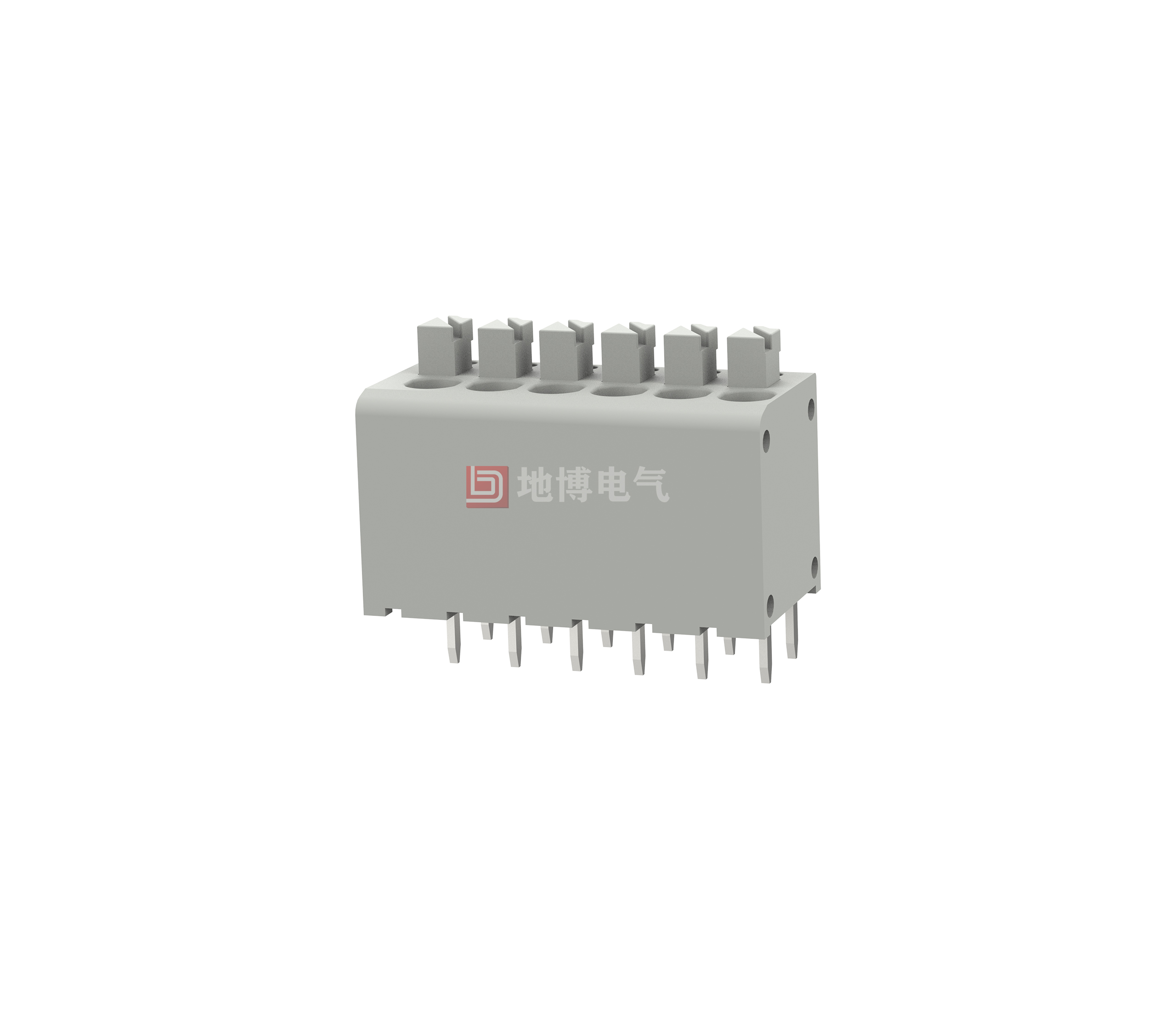

DB243H-5.0 Speed universal terminal

0
Views: 53
Contact usDownload PDF
  •

    Technical data-UL/CUL



     Use group
    B C D
    Rated voltage
    300V - 300V
    Rated current
    10A - 10A
     Wire range
    28-12AWG
    Withstand voltage
    1.6KV



    Technical data-IEC



     Overvoltage category
    III III II
    Pollution degree
    3 2 2
    Rated voltage
    250V 320V 630V
    Rated current
    21A 21A 21A
     Impulse withstand voltage
    4KV 4KV 4KV
     Conductor cross section
    0.2-2.5mm²



    Material data



    Insulating material
    PA66
    Flammability rating according to UL94 V0
    Contact material
    Copper alloy
    Surface characteristics Tin-plated



    Other data



     Pitch/Poles
    5.0mm,5.08mm/2*2-2*24P
     Stripping length
    5-6mm
     Screw/Torque(Max)[N.m]
    /
     Operating temperature -40°C...105 °C [ -40...221 °F ]
     Soldering temperature
    250℃/5S
     Pin dimensions
    0.7*0.7mm
     PCB hole diameter
    Ø1.3mm

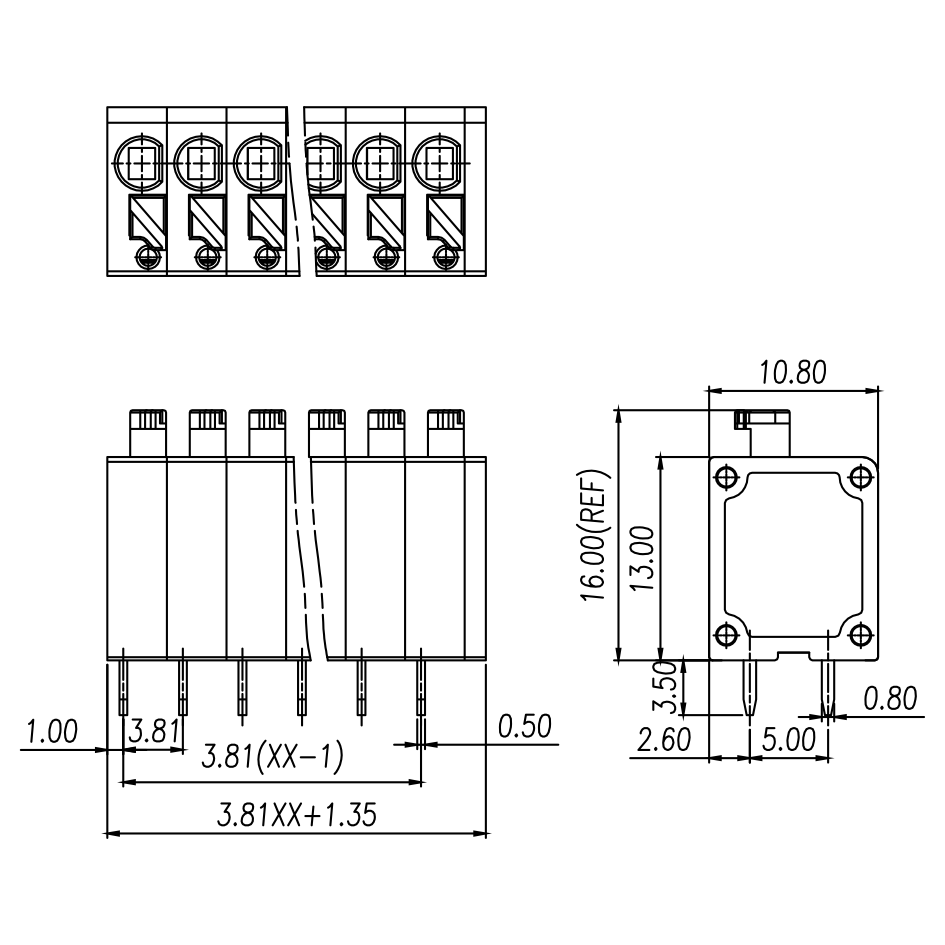

    Dimensional drawing

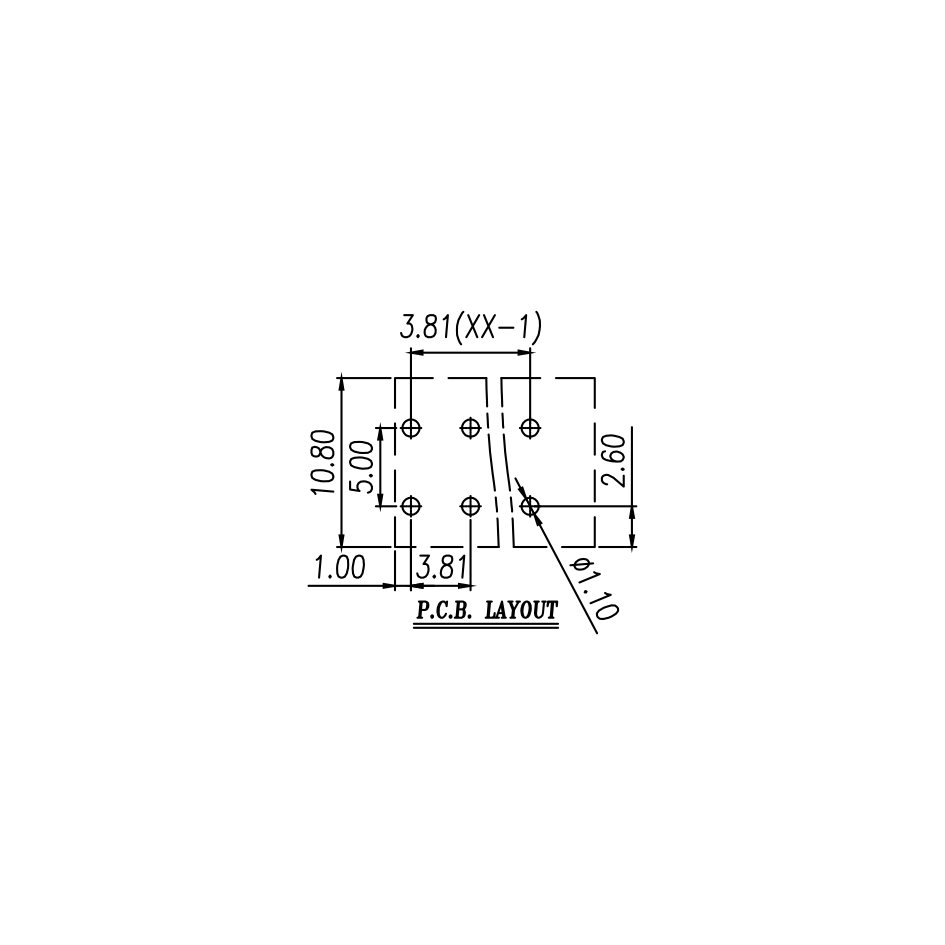

    Dimensions for PCB design
