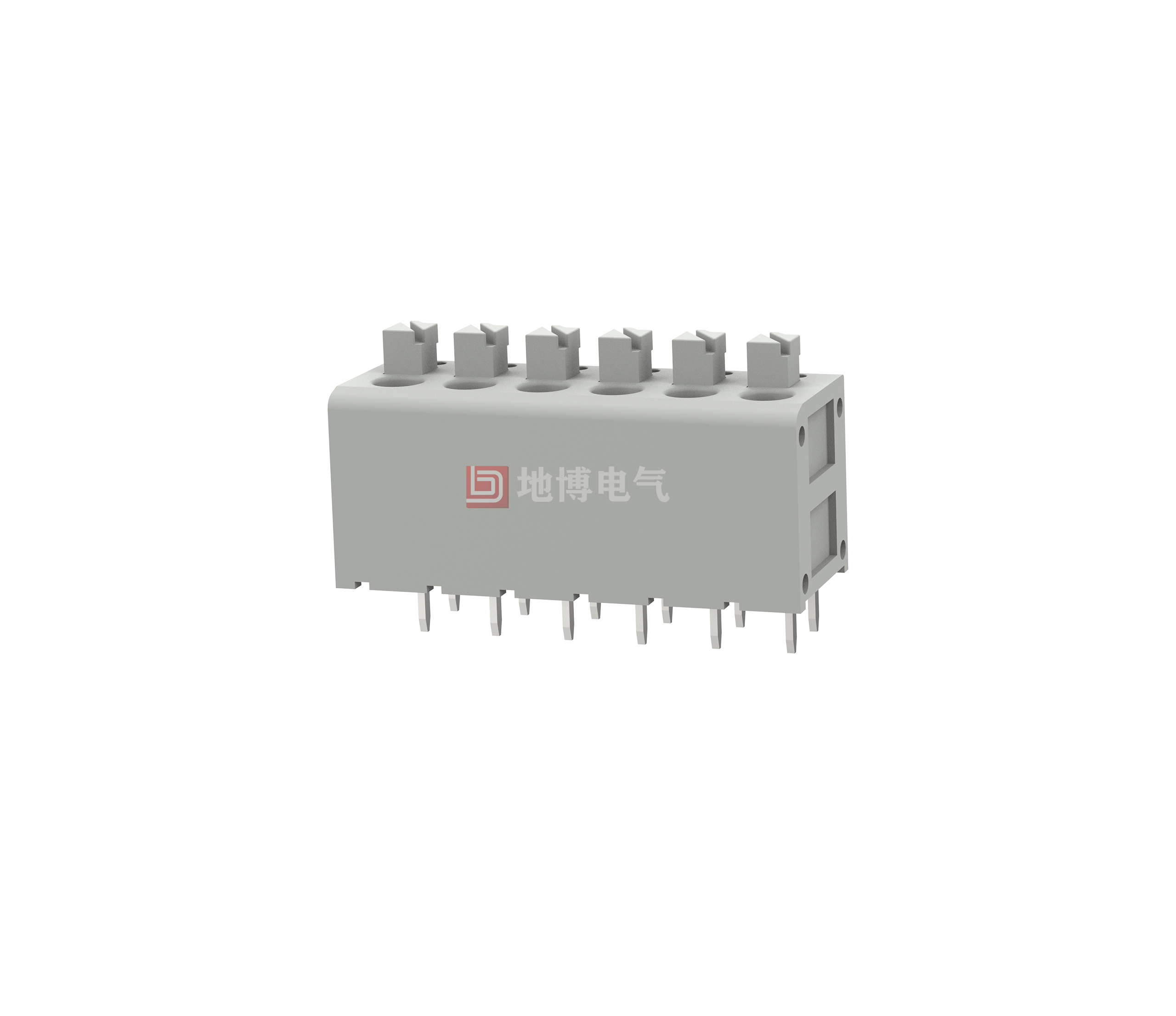

DB245-5.0 Screw-free terminal block

0
Views: 58
Contact usDownload PDF
  •

    Technical data-UL/CUL



     Use group
    B C D
    Rated voltage
    300V - 300V
    Rated current
    15 - 10A
     Wire range
    26~14AWG
    Withstand voltage
    1.6KV



    Technical data-IEC



     Overvoltage category
    III III II
    Pollution degree
    3 2 2
    Rated voltage
    250V 320V 630V
    Rated current
    24A 24A 24A
     Impulse withstand voltage
    4KV 4KV 4KV
    Conductor cross section
    0.2~2.5mm²



    Material data



    Insulating material
    PA66
    Flammability rating according to UL94 V0
     Contact material
    Copper alloy
    Surface characteristics Tin-plated



    Other data



     Pitch/Poles
    5.0mm,5.08mm/1~30P
     Stripping length
    5~6mm
     Screw/Torque(Max)[N.m]
    /
     Operating temperature
    -40~+105
     Soldering temperature
    250℃/5S
     Pin dimensions
    0.75*0.7mm
     PCB hole diameter
    ∅1.3mm



    Dimensional drawing

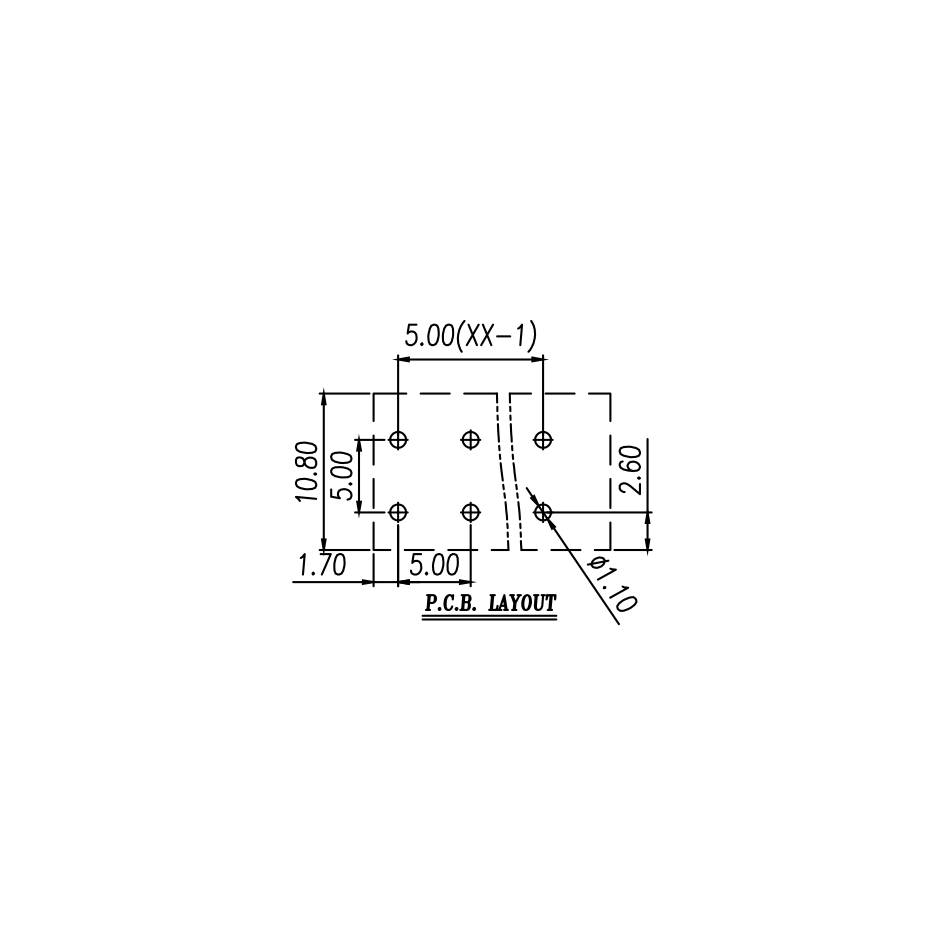

    Dimensions for PCB design
