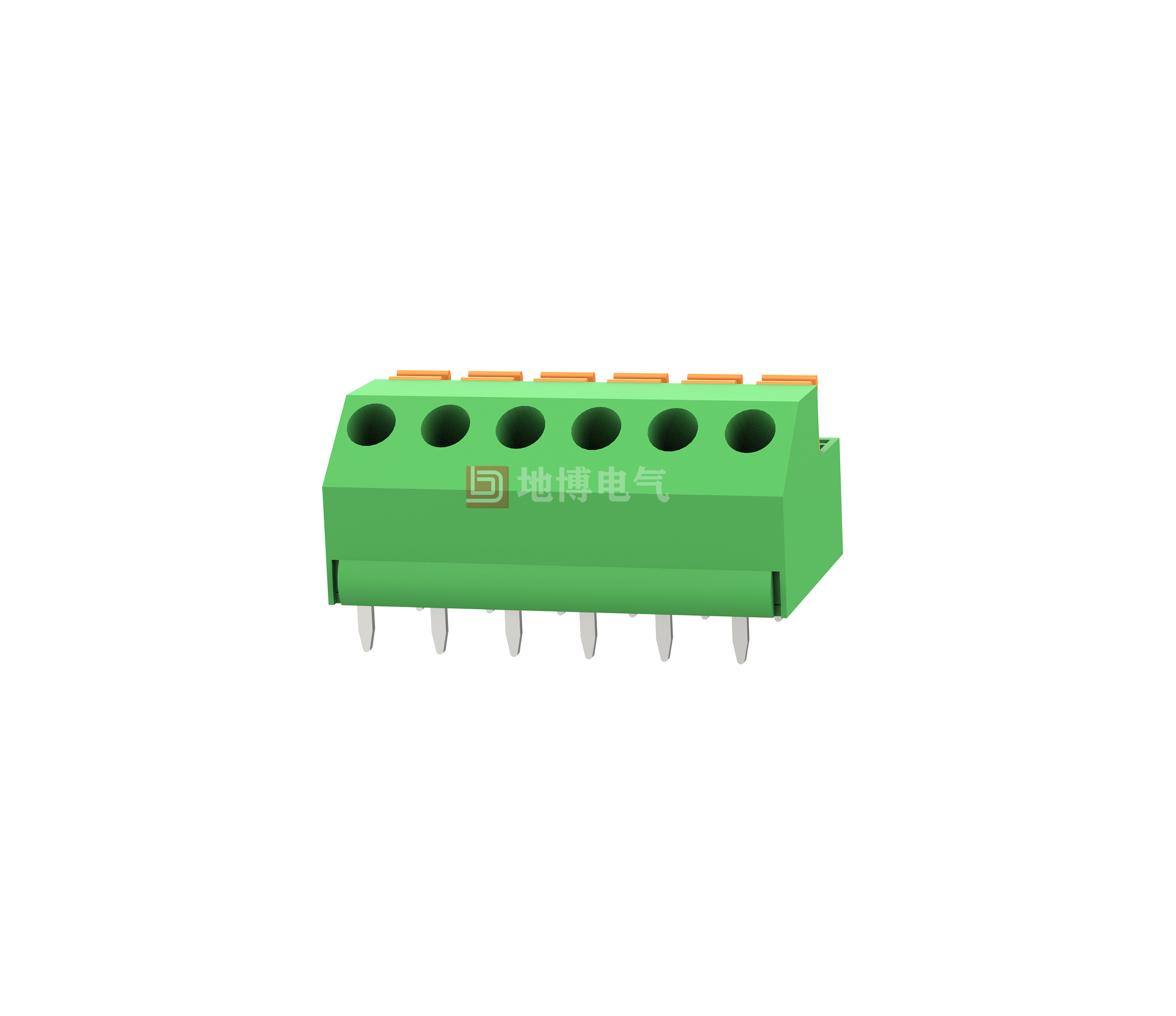

PCB terminal DB280-5.08

Fixed connectors, Rated current: 12 A, Rated voltage (III/2): 320 V, Rated cross-section: 1 mm2, Number of potentials: 2-12, Number of rows: 1, Number of pins per row: 2-12, Series: DB280, Pin pitch: 5.08 mm, Wiring: Straight spring connection, Mounting: Wave soldering, Wire/PCB connection orientation: 45°, Colour: green, Pins alignment: straight, Pins [P]: 3.3 mm, Number of pins per potential: 2, Packaging type: Carton Pin arrangement: Straight, Solder pin [P]: 3.3 mm, Number of pins per potential: 2, Packing type: Carton

Advantages

☑ Time saving plug-in connection, no tools required
☑Set contact force guarantees stable contacts over time
☑Colour coded joystick for intuitive use
☑Curved connection allows for multiple rows on the PCB
☑Quick and easy testing with built-in test elements
☑Two solder pins to reduce mechanical stress on solder joints

0
Views: 1,699
Contact usDownload PDF View 3D Download CAD
  •

    Technical data-UL/CUL



    Use Group
    B C D
    Rate Voltage [V]
    300 - 300
    Rated Current [A]
    10 - 10
    Wire Range [AWG]
    22~16
    Dielectric Voltage-Withstand
    1.6KV



    Technical data-IEC



    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    250 320 630
    Rated Current [A]
    12 12 12
    Impulse withstand voltage [KV]
    4 4 4
    Conductor cross section [mm²]
    0.2~1.5



    Material information



    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Sn plated



    General parameters



    Pitch/Poles [mm]/[P]
    5.08/2~12
    Stripping Length [mm]
    10
    Screw/Torque(Max)[N.m]
    /
    Operating temperature [℃]
    -40~+105
    Soldering temperature
    250℃/5S
    Pin dimensions [mm]
    0.9*0.5
    PCB Hole Diameter [mm]
    ∅1.2

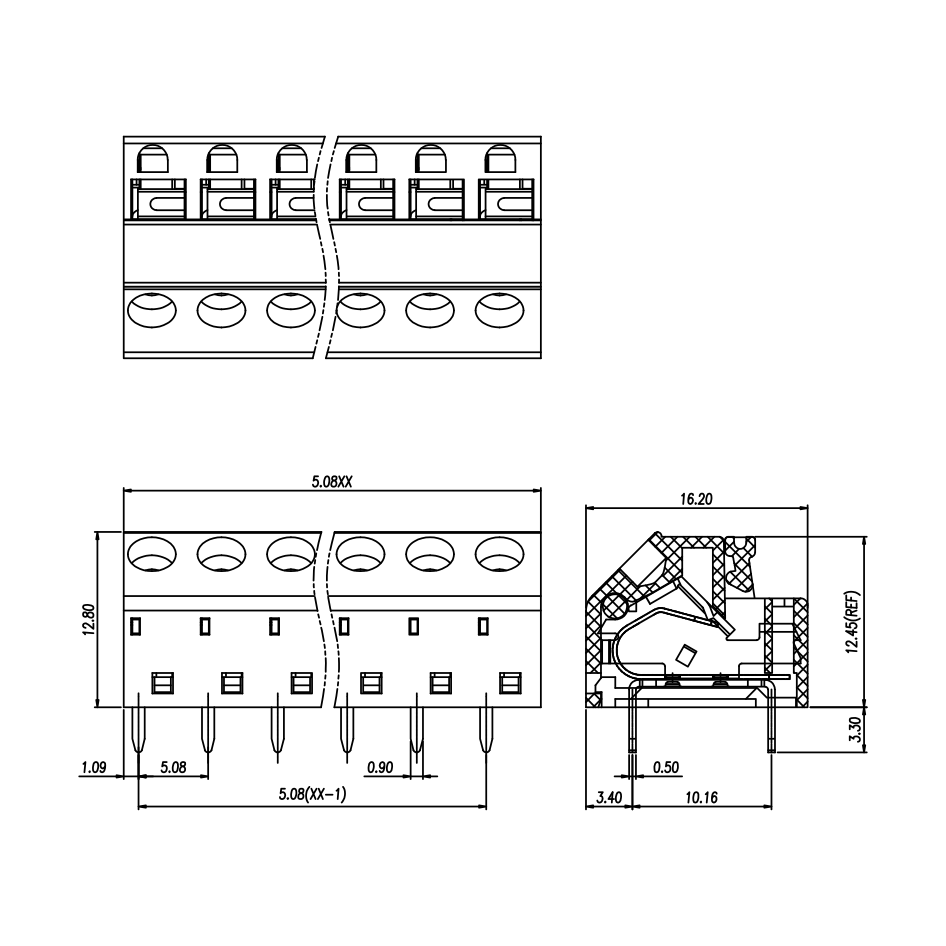

    Dimensional drawings

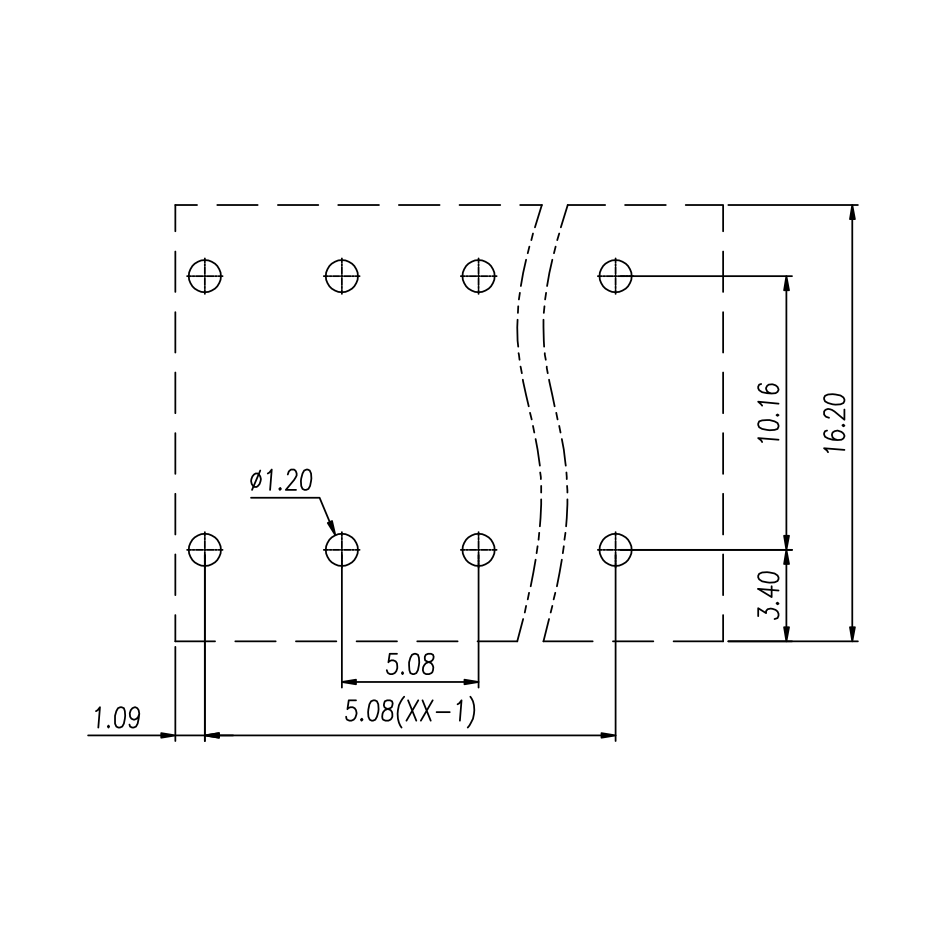

    PCB cut-out diagram
