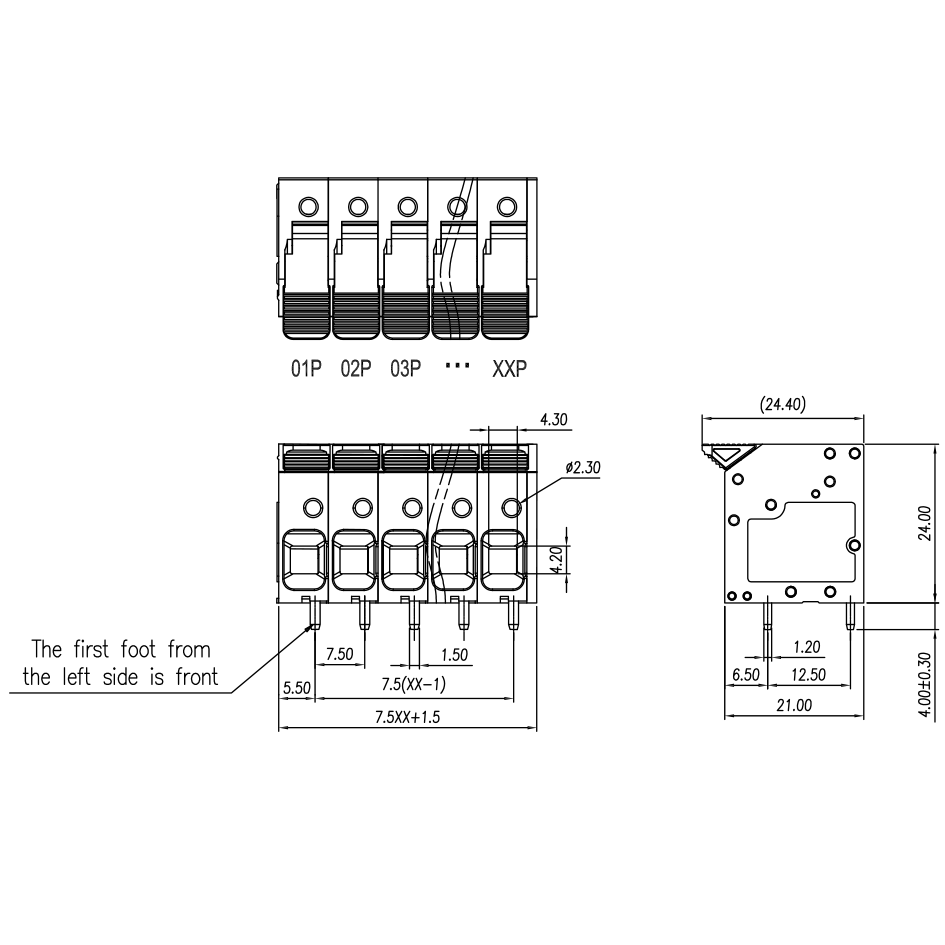

PCB terminal DB2406RB-7.5

Fixed connectors, Rated current: 41 A, Rated voltage (III/2): 1000 V, Rated cross-section: 6 mm2, Number of potentials: 2-24, Number of rows: 1, Number of digits per row: 2-24, Series: DB2406RB, Pin pitch: 7.5 mm, Wiring method: straight connection, Mounting: wave soldering, Wire/PCB connection direction: 0°, Colour: green, Pins: Z-pin W, Pins [P]: 3.6 mm, Packing type: carton Pin Arrangement: Z-Pin W, Solder Pin [P]: 3.6 mm, Packing Type: Carton

Advantages

☑ Tool-less lever saves a lot of time when connecting and releasing wires with and without sleeves
☑The lever position is clearly visible and provides reliable feedback on whether the wiring area is open or closed
☑Set contact force ensures that the contacts remain stable over time
☑Saving time by closing the lever to enable plug and play connections
☑Colour coded pushbuttons for intuitive convenience
