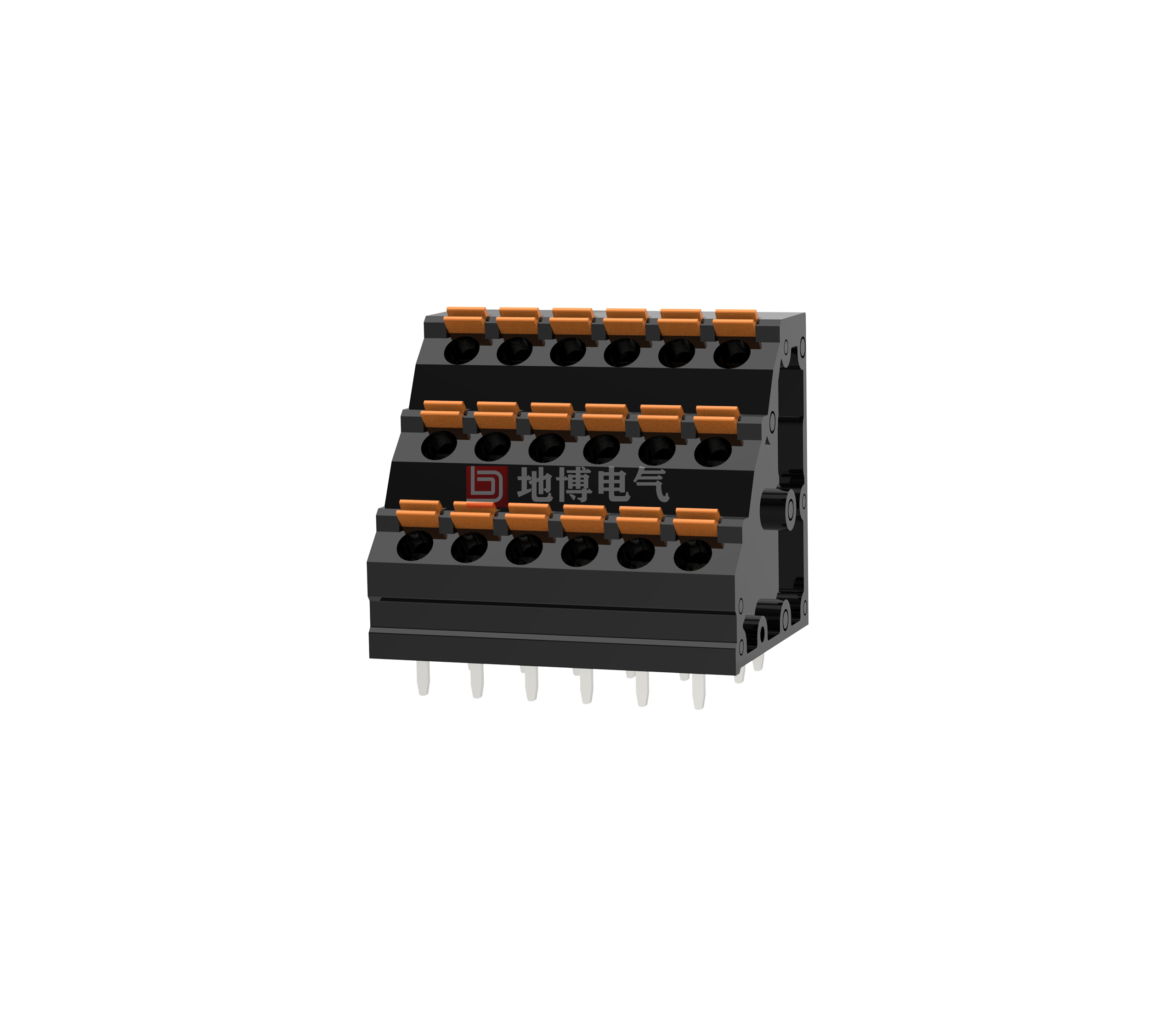

PCB terminal DB252H3-5.0

Fixed connectors, Rated current: 12 A, Rated voltage (III/2): 400 V, Rated cross-section: 1.5 mm2, Number of potentials: 3-72, Number of rows: 3, Number of pins per row: 3-72, Series: DB252H3, Pin pitch: 5.0 mm, Wiring method: Pull-back spring connection, Mounting: wave soldering, Wire/PCB connection direction: 45°, Colour: Green, Pin arrangement: Straight, Pin [P]: 3.4 mm, Number of pins per potential: 3, Packing type: Carton

Advantages

☑Set contact force ensures that the contacts remain stable over time
☑The wire clamping position can be opened by means of a set screwdriver, allowing easy connection of the wires
☑Multi-layer wire connection for high contact density
☑The number of different positions can be combined by means of the side latch

0
Views: 220
Contact usDownload PDF View 3D Download CAD
  • Technical data

    Use Group
    B C D
    Rate Voltage [V]
    300 - 300
    Rated Current [A]
    10 - 10
    Wire Range [AWG]
    28~16
    Dielectric Voltage-Withstand
    1.6KV

    Technical specifications

    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    320 320 320
    Rated Current [A]
    17.5 17.5 17.5
    Impulse withstand voltage [KV]
    4 4 4
    Conductor cross section [mm²]
    0.2-1.5

    Materials

    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Sn plated

    General parameters

    Pitch/Poles [mm]/[P]
    5.0/3*1-24
    Stripping Length [mm]
    8-9
    Screw/Torque(Max)[N.m]
    /
    Operating temperature [℃]
    -40~+105
    Pin dimensions [mm]
    0.6*1.0
    PCB Hole Diameter [mm]
    Ø1.4
    Soldering temperature
    260°C/5S



    Dimensional drawings

    PCB cut-out diagram
