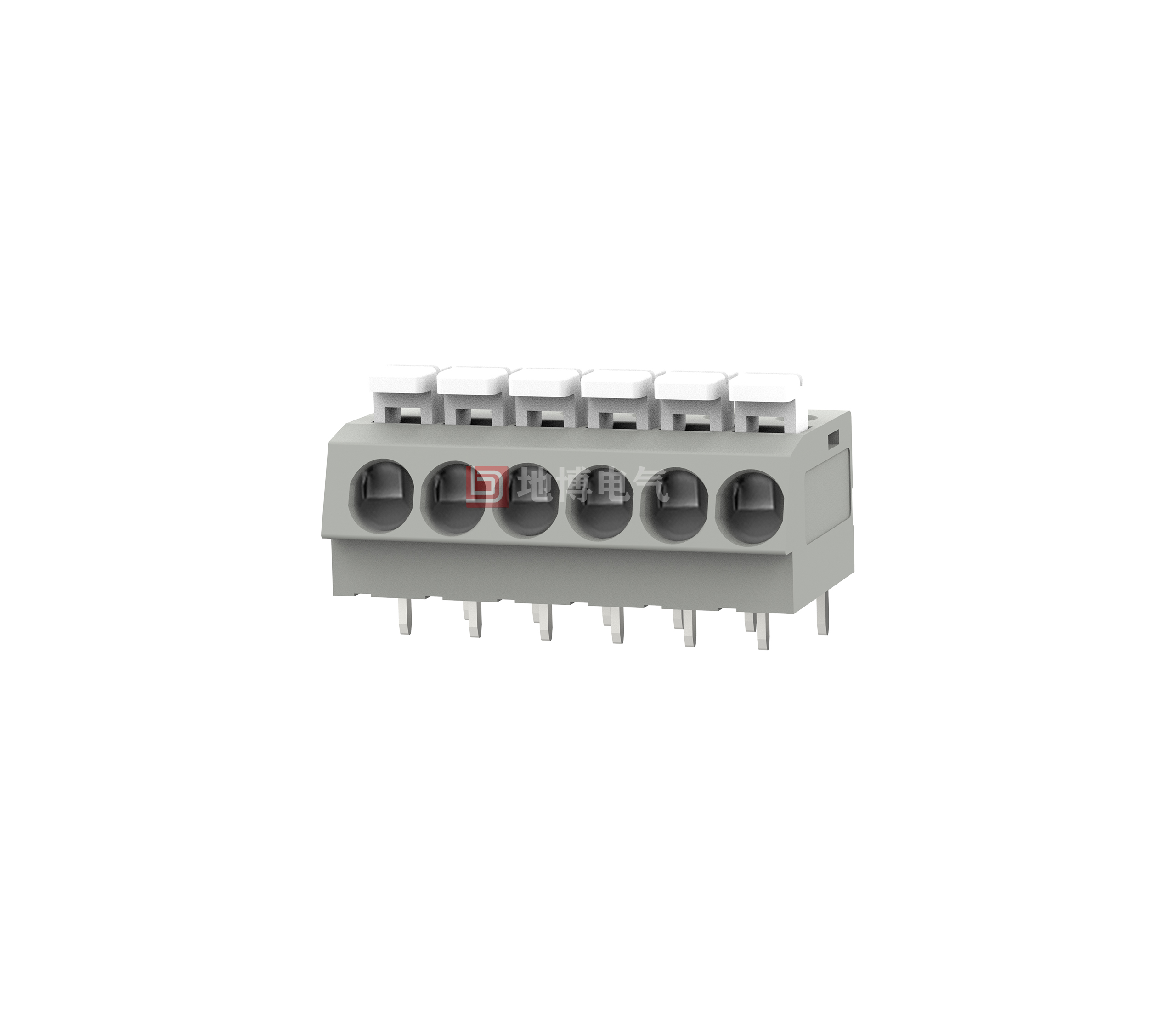

PCB terminal DB804-5.0

Fixed connectors, Rated current: 16 A, Rated voltage (III/2): 400 V, Rated cross-section: 2.5 mm2, Number of potentials: 1-30, Number of rows: 1, Number of pins per row: 1-30, Series: DB804, Pin pitch: 5.0 mm, Wiring method: straight spring connection, Mounting: wave soldering, Wire/PCB connection direction: 0°, Colour: green, Pins alignment: straight, Pins [P]: 3.4 mm, Number of pins per potential: 2, Packaging type: carton Pin Arrangement: Straight, Pin [P]: 3.4 mm, Number of pins per potential: 2, Packing type: Carton

Advantages

☑ Time saving plug-in connection, no tools required
☑Set contact force guarantees stable contacts over time
☑Colour coded joystick for intuitive use
☑The wires can be connected and disconnected from a single direction, allowing them to be integrated into the front of the device
☑Two solder pins to reduce mechanical stress on the solder points
☑Lock on the side allows the combination of different digits
☑Vertical connection allows for multiple rows on the PCB

0
Views: 244
Contact usDownload PDF View 3D Download CAD
  • Technical data

    Use Group
    B C D
    Rate Voltage [V]
    300 300 300
    Rated Current [A]
    12 12 10
    Wire Range [AWG]
    20~12
    Dielectric Voltage-Withstand
    1.6KV

    Technical specifications

    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    250 320 630
    Rated Current [A]
    24 24 24
    Impulse withstand voltage [KV]
    4 4 4
    Conductor cross section [mm²]
    0.25~2.5

    Materials

    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Sn plated

    General parameters

    Pitch/Poles [mm]/[P]
    5.0/1~30
    Stripping Length [mm]
    10~11
    Screw/Torque(Max)[N.m]
    /
    Operating temperature [℃]
    -40~+105
    Soldering temperature
    260℃/5S
    Pin dimensions [mm]
    0.8*0.6
    PCB Hole Diameter [mm]
    ∅1.3



    Dimensional drawings

    PCB cut-out diagram
