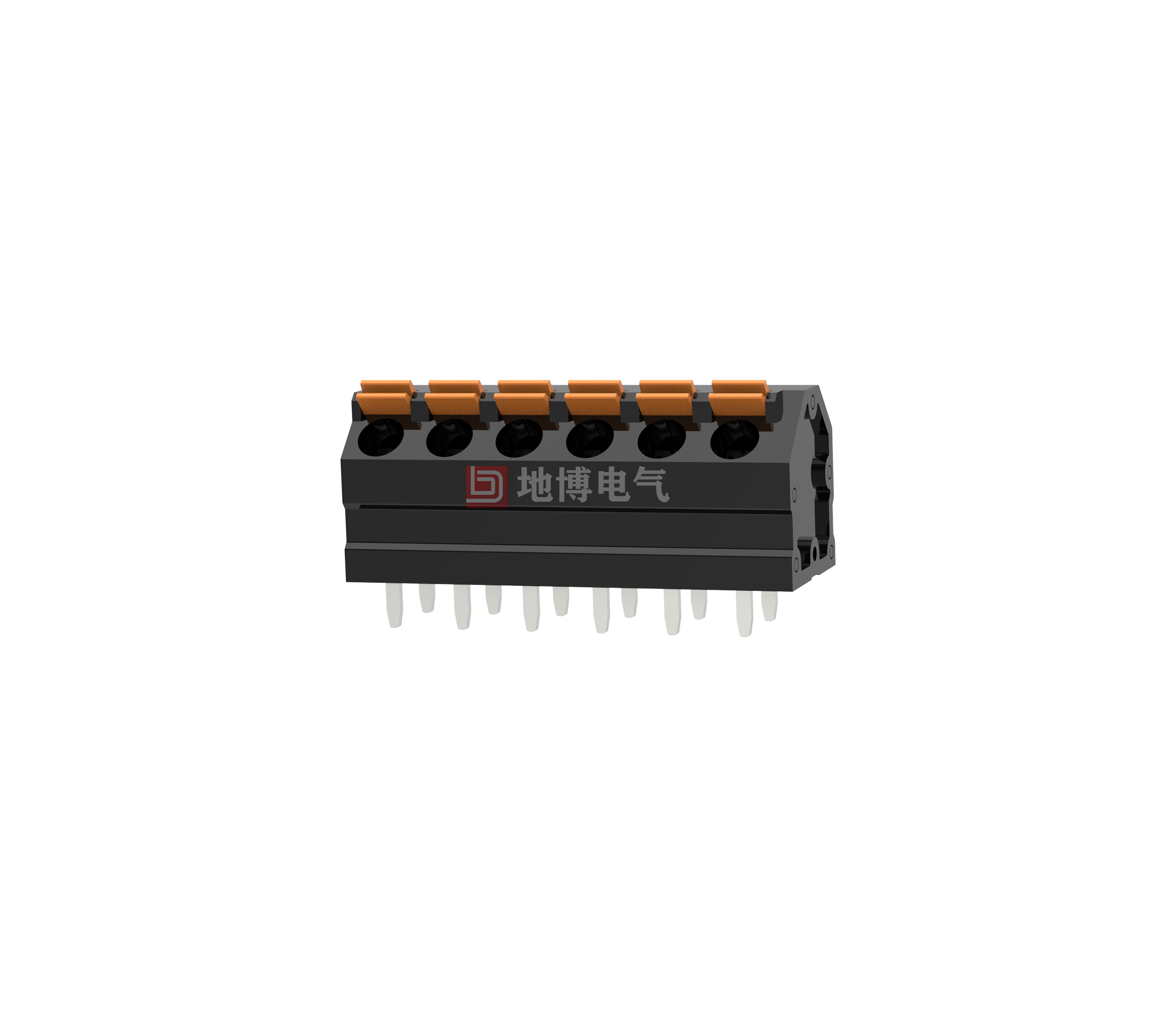

PCB terminal DB252-5.0

Fixed connectors, Rated current: 13.5 A, Rated voltage (III/2): 320 V, Rated cross-section: 1 mm2, Number of potentials: 1-24, Number of rows: 1, Number of digits per row: 1-24, Series: DB252, Pin pitch: 5 mm, Wiring method: straight spring connection, Mounting: wave soldering, Wire/PCB connection direction: 45°, Colour: black Pin Arrangement: Straight, Pin [P]: 2.6 mm, Number of pins per potential: 2, Packing type: Carton

Advantages

☑Time saving plug-in connection, no tools required
☑Set contact force ensures that the contacts remain stable over time
☑The release button is finger-operated and can be fixed, making it very easy to operate
☑Small component size for applications where space is tight
☑Quick and easy testing with built-in test elements

0
Views: 273
Contact usDownload PDF View 3D Download CAD
  • Technical Data

    Use Group
    B C D
    Rate Voltage [V]
    300 - 300
    Rated Current [A]
    10 - 10
    Wire Range [AWG]
    28~16
    Dielectric Voltage-Withstand
    1.6KV

    Technical parameters

    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    320 320 320
    Rated Current [A]
    17.5 17.5 17.5
    Impulse withstand voltage [KV]
    4 4 4
    Conductor cross section [mm²]
    0.2-1.5

    Materials

    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Sn plated

    General Parameters

    Pitch/Poles [mm]/[P]
    5.0/1-24
    Stripping Length [mm]
    8-9
    Screw/Torque(Max)[N.m]
    /
    Operating temperature [℃]
    -40~+105
    Pin dimensions [mm]
    0.6*1.0
    PCB Hole Diameter [mm]
    Ø1.4
    Soldering temperature
    260°C/5S
