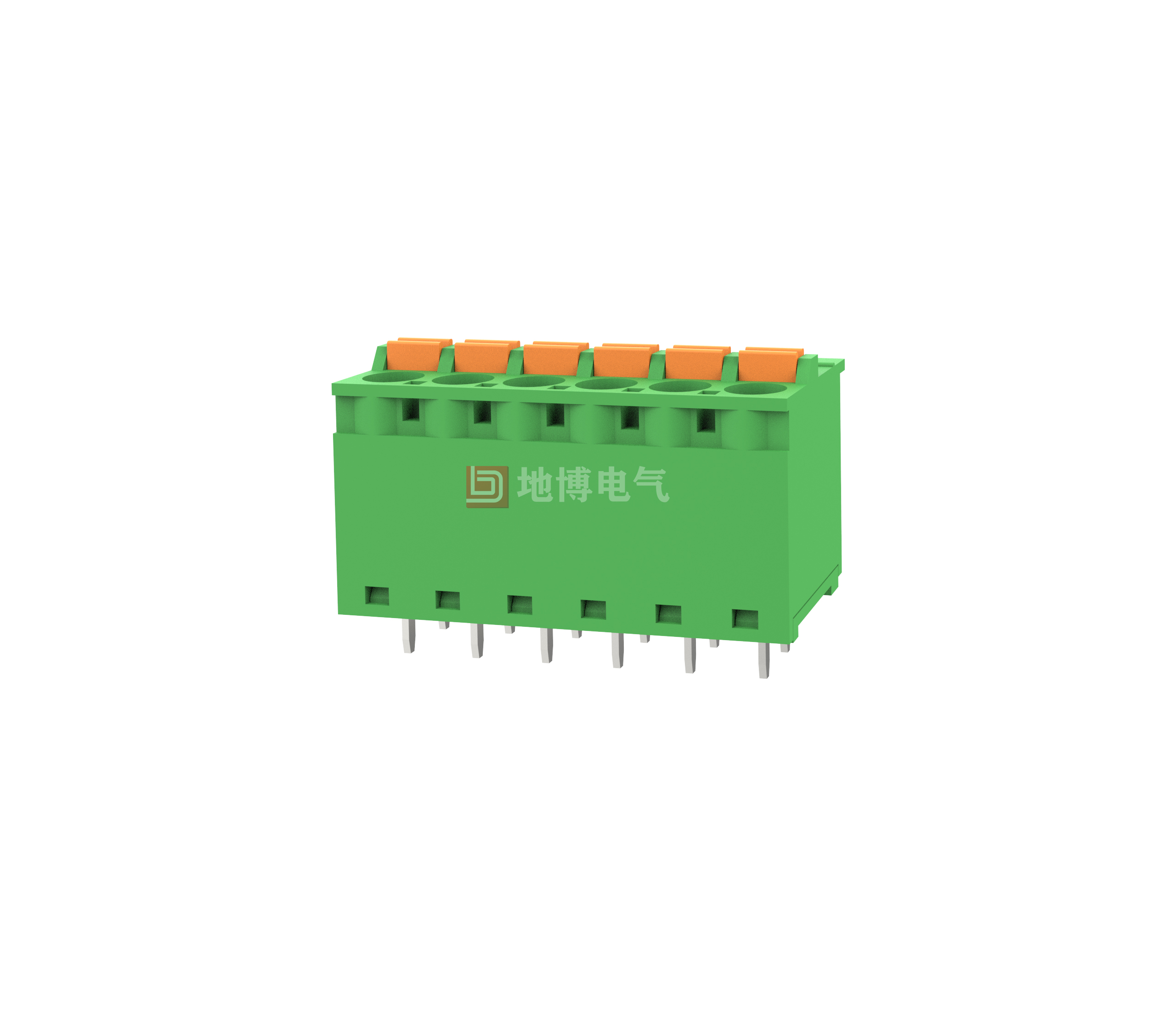

PCB terminal DB2EKDV-5.0

Fixed connectors, Nominal cross-section: 2.5 mm2, Colour: green, Rated current: 16 A, Rated voltage (III/2): 320 V, Contact surface: tin, Contact type: Pin connector, Number of potentials: 2-24, Number of rows: 1, Number of digits: 2-24, Connection capacity: 2-24, Series: DB2EKDV, Pin pitch: 5.0 mm, Wiring: straight spring-loaded connection, cable/PCB connection direction: 90°, latch: - without latch, insertion system: COMBICON DB2EKDV, interlock: without, mounting: without, packaging type: carton

Advantages

☑ Adaptable to a wide range of sockets, highly flexible design of the unit
☑ Foolproof for misplacing requirements
☑ Universal installation, suitable for many applications

0
Views: 22,723
Contact usDownload PDF View 3D Download CAD
  • Technical data

    Use Group
    B C D
    Rate Voltage [V]
    300 - 300
    Rated Current [A]
    12 - 10
    Wire Range [AWG]
    20~12
    Dielectric Voltage-Withstand
    1.6KV

    Technical specifications

    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    250 320 630
    Rated Current [A]
    24 24 24
    Impulse withstand voltage [KV]
    4 4 4
    Conductor cross section [mm²]
    0.25~2.5

    Materials

    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Sn plated

    General parameters

    Pitch/Poles [mm]/[P]
    5.0/2-24
    Stripping Length [mm]
    9~10
    Screw/Torque(Max)[N.m]
    /
    Operating temperature [℃]
    -40~+105
    Soldering temperature
    260℃/5S
    Pin dimensions [mm]
    0.9*1.0
    PCB Hole Diameter [mm]
    ∅1.4

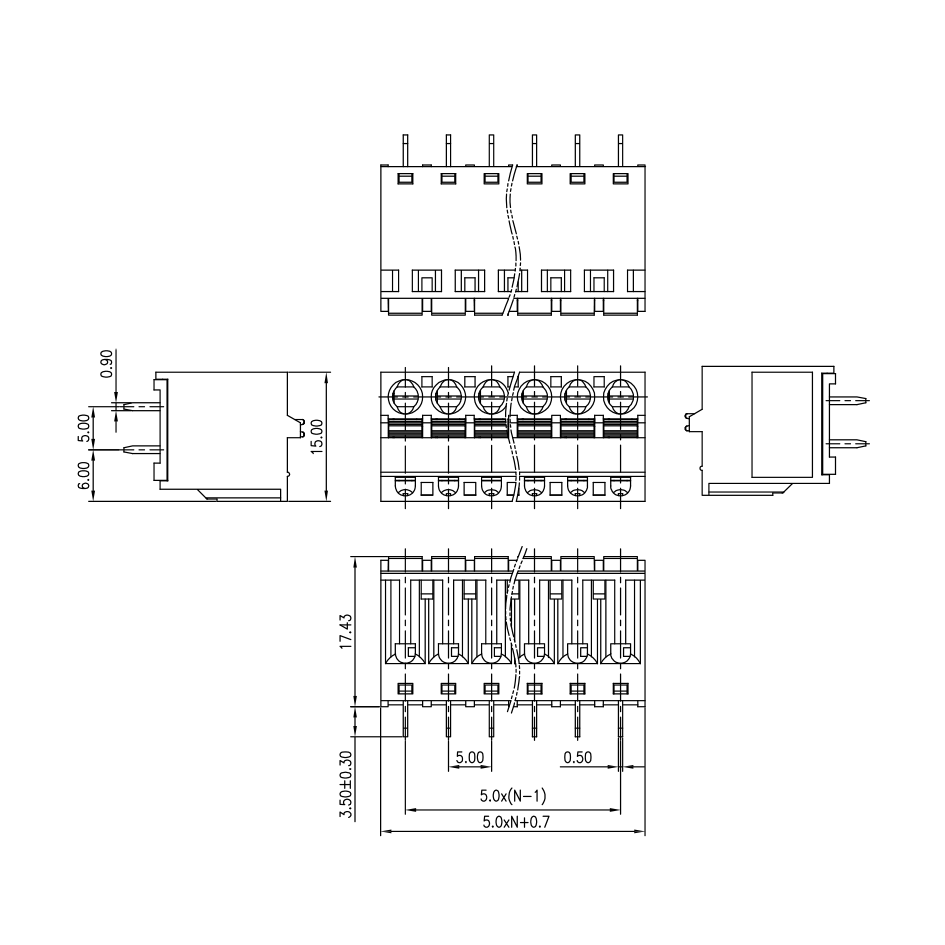

    Dimensional drawings

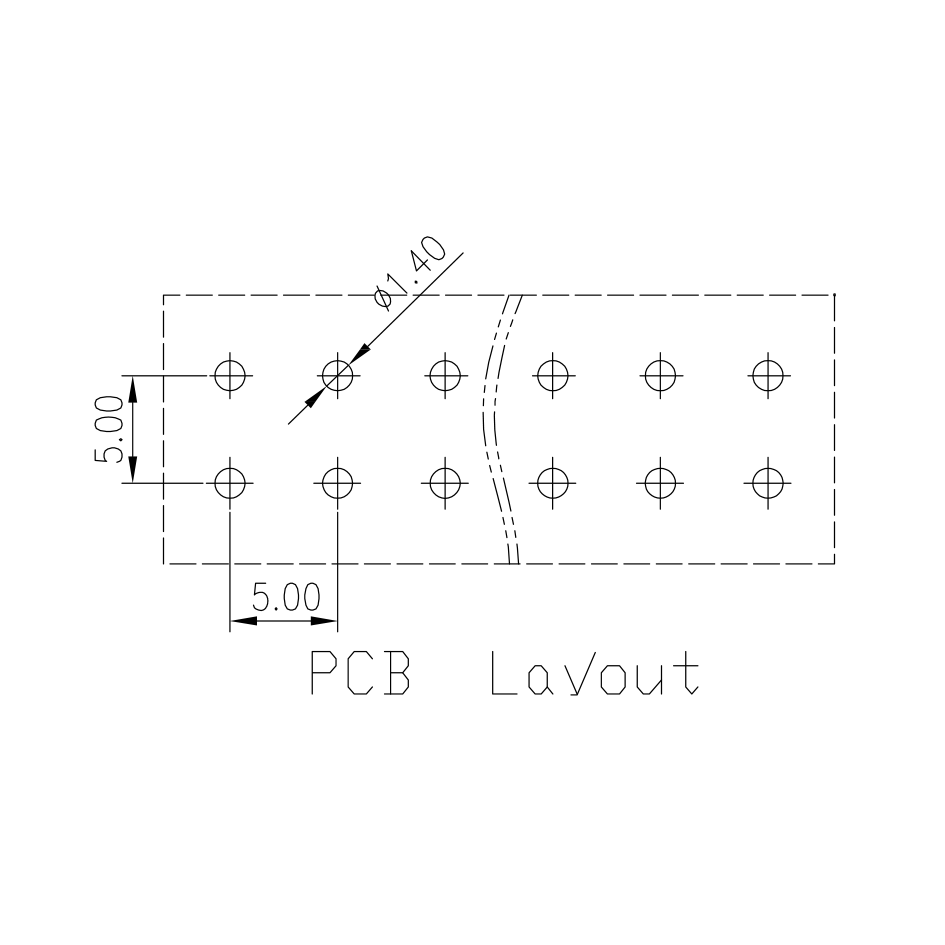

    PCB cut-out diagram
