PCB terminal DB2393-3.5

Fixed connectors, Rated current: 6 A, Rated voltage (III/2): 300 V, Rated cross-section: 1.5 mm2, Number of potentials: 2-24, Number of rows: 1, Number of pins per row: 2-24, Series: DB2393, Pin pitch: 3.5 mm, Wiring method: straight spring connection, Mounting: wave soldering, Wire/PCB connection direction: 90°, Colour: green, Pin arrangement: straight, Pin [P]: 2.5 mm, Number of pins per potential: 2 : Green, Pin Arrangement: Straight, Solder Pin [P]: 2.5 mm, Number of Pins per Potential: 2, Packing Type: Carton

Advantages

☑Time saving plug-in connection, no tools required
☑Set contact force ensures that the contacts remain stable over time
☑The pinch position can be opened by means of a set screwdriver, allowing easy connection of the wires
☑Wires can be connected and disconnected from a single direction so that they can be integrated into the front of the device
☑Two solder pins to reduce mechanical stress on the soldering point

0
Views: 22,762
Contact usDownload PDF View 3D Download CAD
  • Technical data

    Use Group
    B C D
    Rate Voltage [V]
    300 - 300
    Rated Current [A] 6
    Wire Range [AWG]
    28~14
    Dielectric Voltage-Withstand
    1.6KV

    Technical specifications

    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    160 160 320
    Rated Current [A]
    17.5 17.5 17.5
    Impulse withstand voltage [KV]
    2.5 2.5 2.5
    Conductor cross section [mm²]
    0.2~1.5

    Materials

    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Sn plated

    General parameters

    Pitch/Poles [mm]/[P]
    3.5/2-24
    Stripping Length [mm]
    5~6
    Screw/Torque(Max)[N.m]
    /
    Operating temperature [℃]
    -40~+105
    Soldering temperature
    260℃/5S
    Pin dimensions [mm]
    0.8*0.6
    PCB Hole Diameter [mm]
    ∅1.1

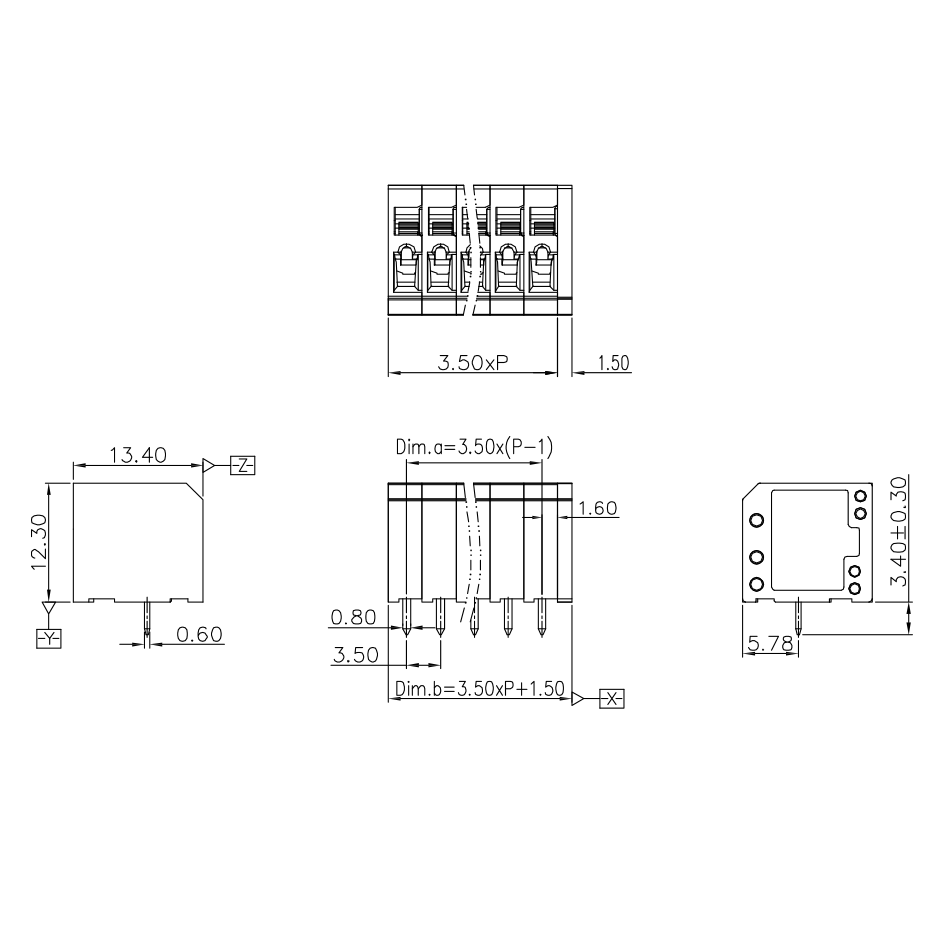

    Dimensional drawings

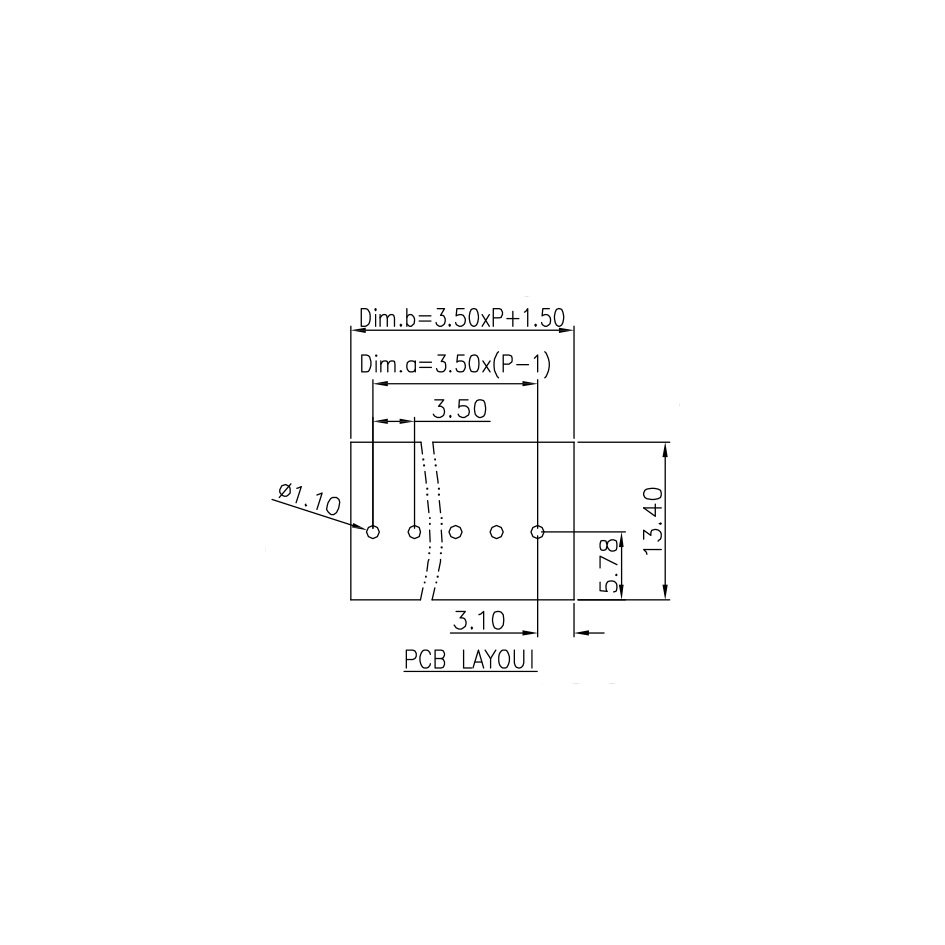

    PCB cut-out diagram
