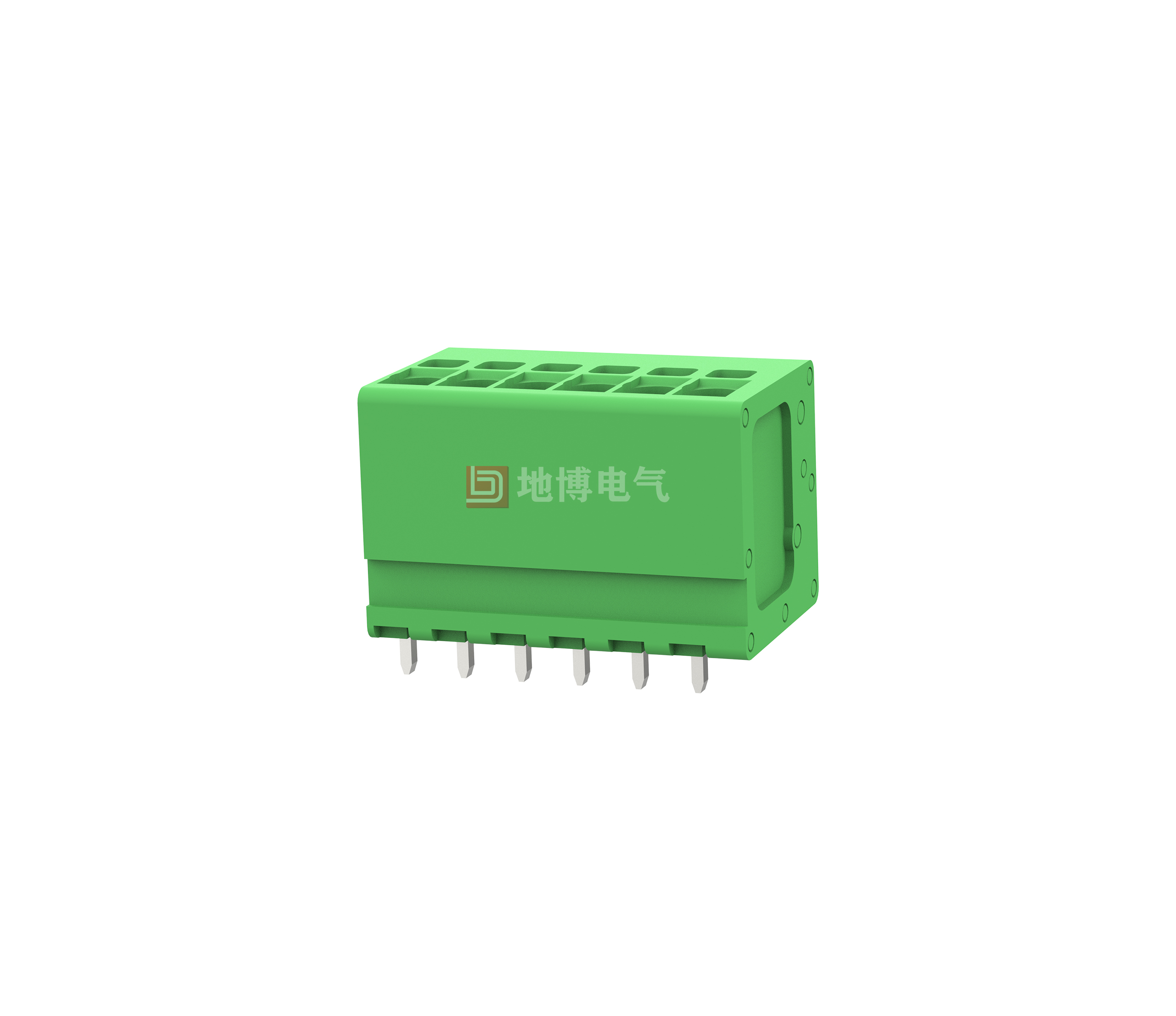

DB500V-2.54 Small pitch terminal

0
Views: 96
Contact usDownload PDF
  •

    Technical data-UL/CUL



     Use group
    B C D
    Rated voltage
    150V - -
    Rated current
    5A - -
     Wire Range
    26~18AWG
    Withstand voltage
    1.3KV



    Technical data-IEC



     Overvoltage category
    III III II
    Pollution degree
    3 2 2
    Rated voltage
    63V 160V 320V
    Rated current
    6A 6A 6A
     Impulse withstand voltage
    2.5KV 2.5KV 2.5KV
     Conductor cross section
    0.2~1.0mm²



    Material data



    Insulating material
    PA66
    Flammability rating according to UL94 V0
    Contact material
    Copper alloy
    Surface characteristics Tin-plated



    Other data



     Pitch/Poles
    2.54mm/2~30P
     Stripping length
    11mm
     Screw/Torque(Max)[N.m]
    /
     Operating temperature -40°C...105 °C [ -40...221 °F ]
     Soldering temperature
    250℃/5S
     Pin dimensions
    0.7*0.4mm
     PCB hole diameter
    ∅1.0mm



    Dimensional drawing





    Dimensions for PCB design
