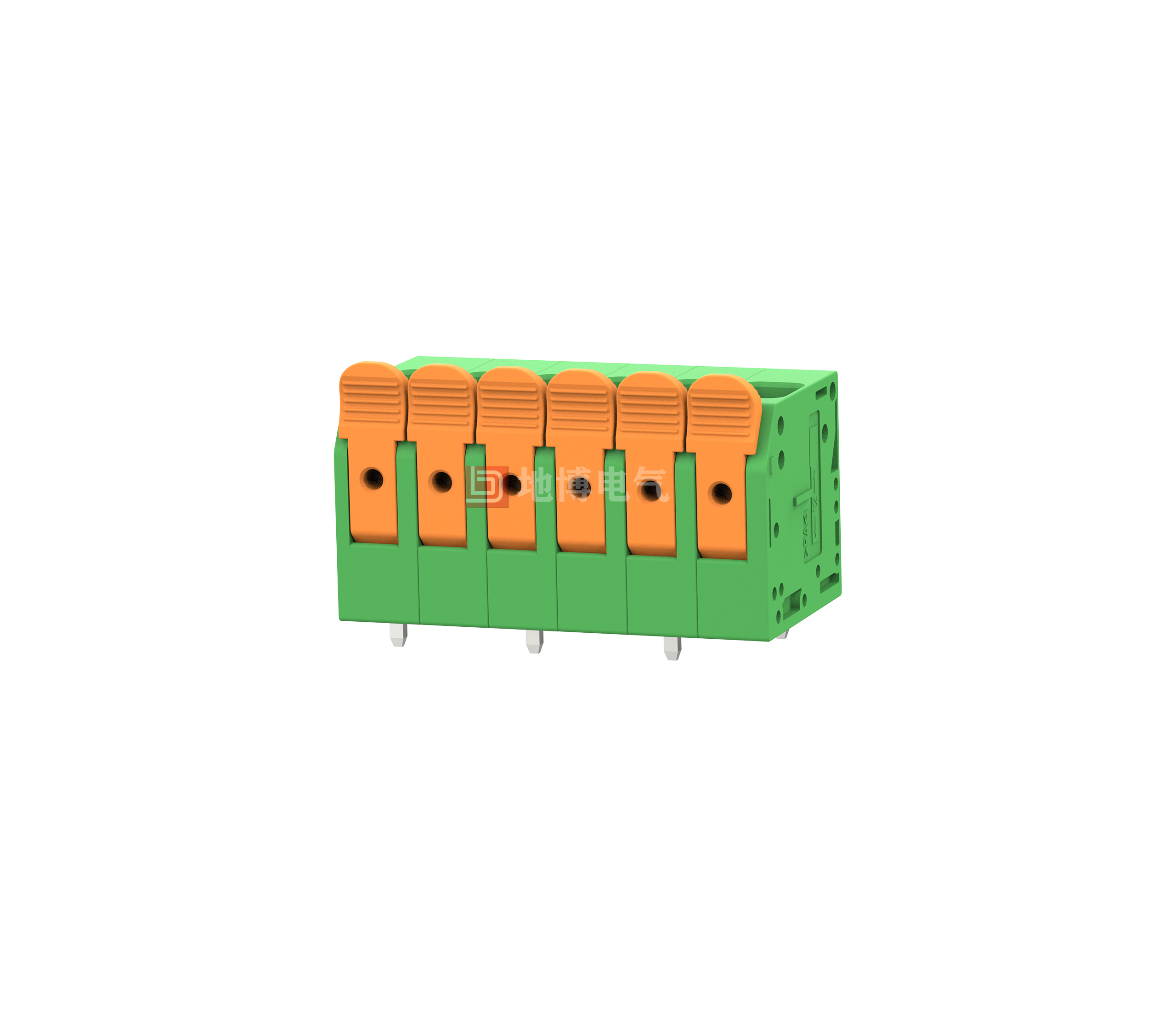

PCB terminal DB2406VB-7.5

Fixed connectors, Rated current: 41 A, Rated voltage (III/2): 1000 V, Rated cross-section: 6 mm2, Number of positions: 2-24, Number of rows: 1, Number of positions per row: 2-24, Series: DB2406VB, Pin pitch: 7.5 mm, Wiring method: straight connection, Mounting: wave soldering, Wire/PCB connection direction: 90°, Colour: green Pin Arrangement: Z-Pin W, Solder Pin [P]: 3.6 mm, Packing Type: Carton

Advantages

☑Tool-less lever saves a lot of time when connecting and releasing wires with and without sleeves
☑The lever position is clearly visible and provides reliable feedback on whether the wiring area is open or closed
☑Set contact force ensures that the contacts remain stable over time
☑Saving time by closing the lever to enable plug and play connections
☑Colour coded pushbuttons for intuitive convenience

0
Views: 24,805
Contact usDownload PDF View 3D Download CAD
  • Technical Data

    Use Group
    B C D
    Rate Voltage [V]
    600 600 600
    Rated Current [A]
    41 41 5
    Wire Range [AWG]
    24-8
    Dielectric Voltage-Withstand
    2.2KV

    Technical parameters

    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    800 1000 1000
    Rated Current [A]
    41 41 41
    Impulse withstand voltage [KV]
    8 8 8
    Conductor cross section [mm²]
    0.2-6.0

    Materials

    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Sn plated

    General Parameters

    Pitch/Poles [mm]/[P]
    7.5/2-24
    Stripping Length [mm]
    11-13
    Screw/Torque(Max)[N.m]
    /
    Operating temperature [℃]
    -40~+105
    Soldering temperature
    260℃/5S
    Pin dimensions [mm]
    1.2*1.5
    PCB Hole Diameter [mm]
    Ø2.0

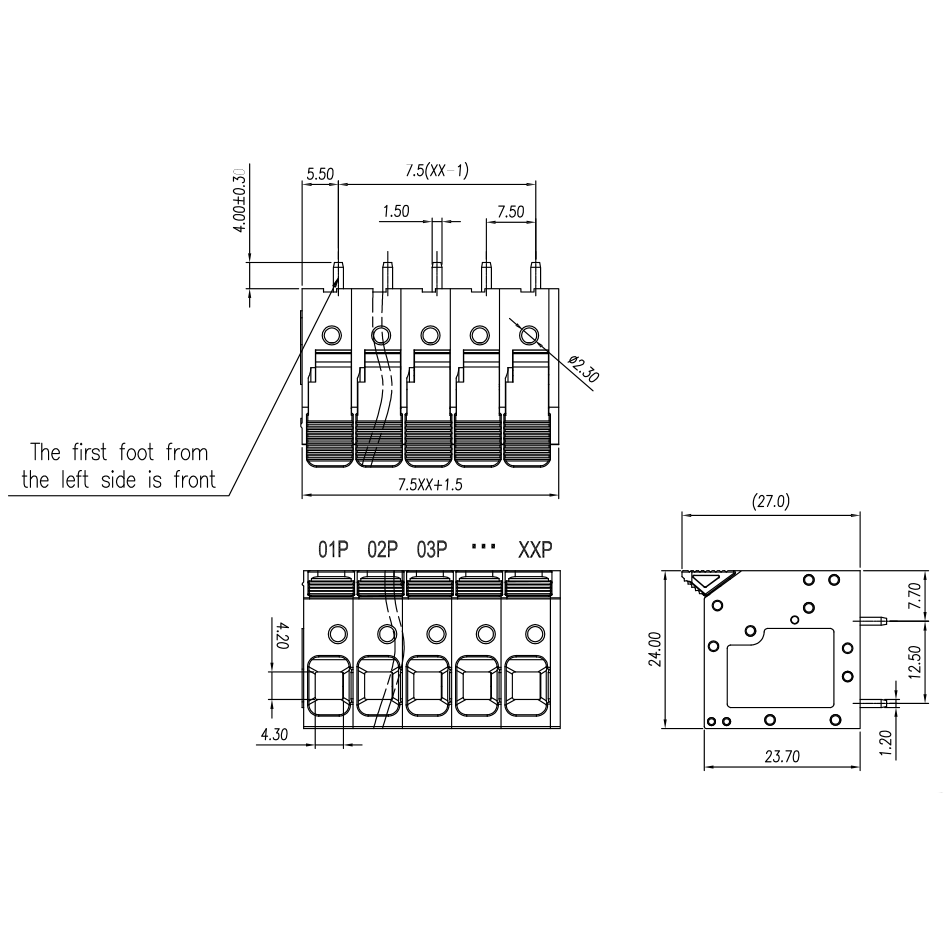

    Size Chart

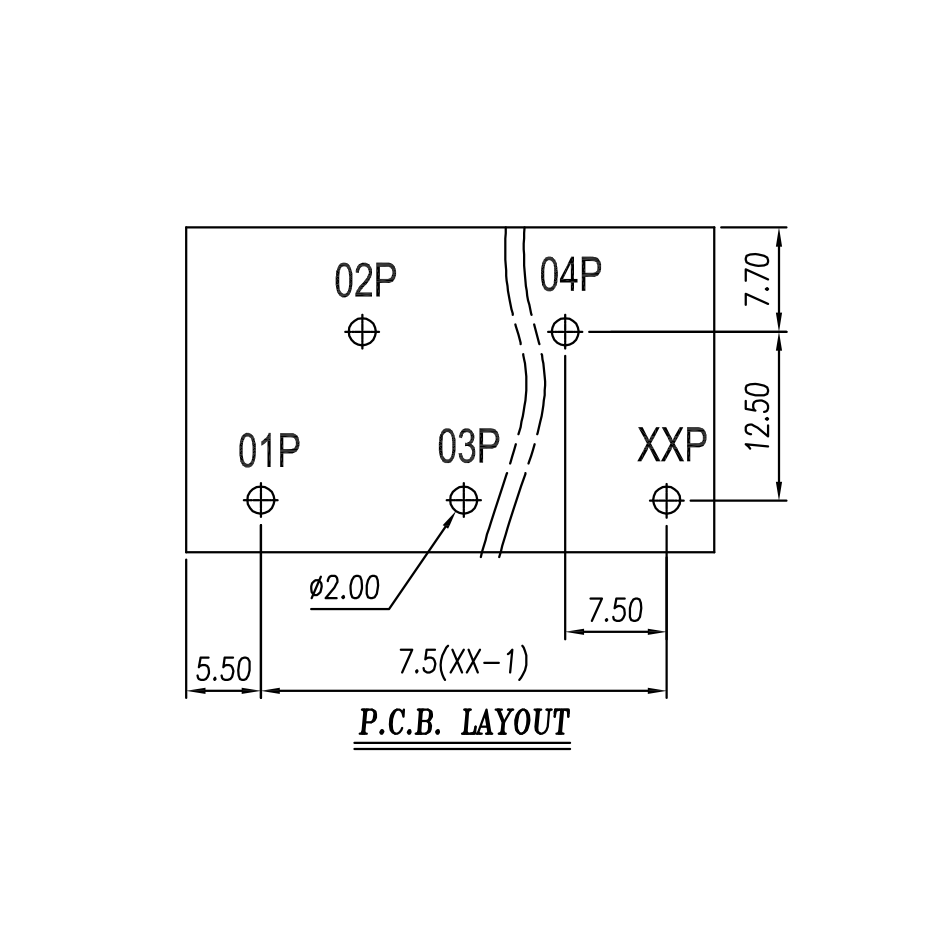

    PCB opening diagram
