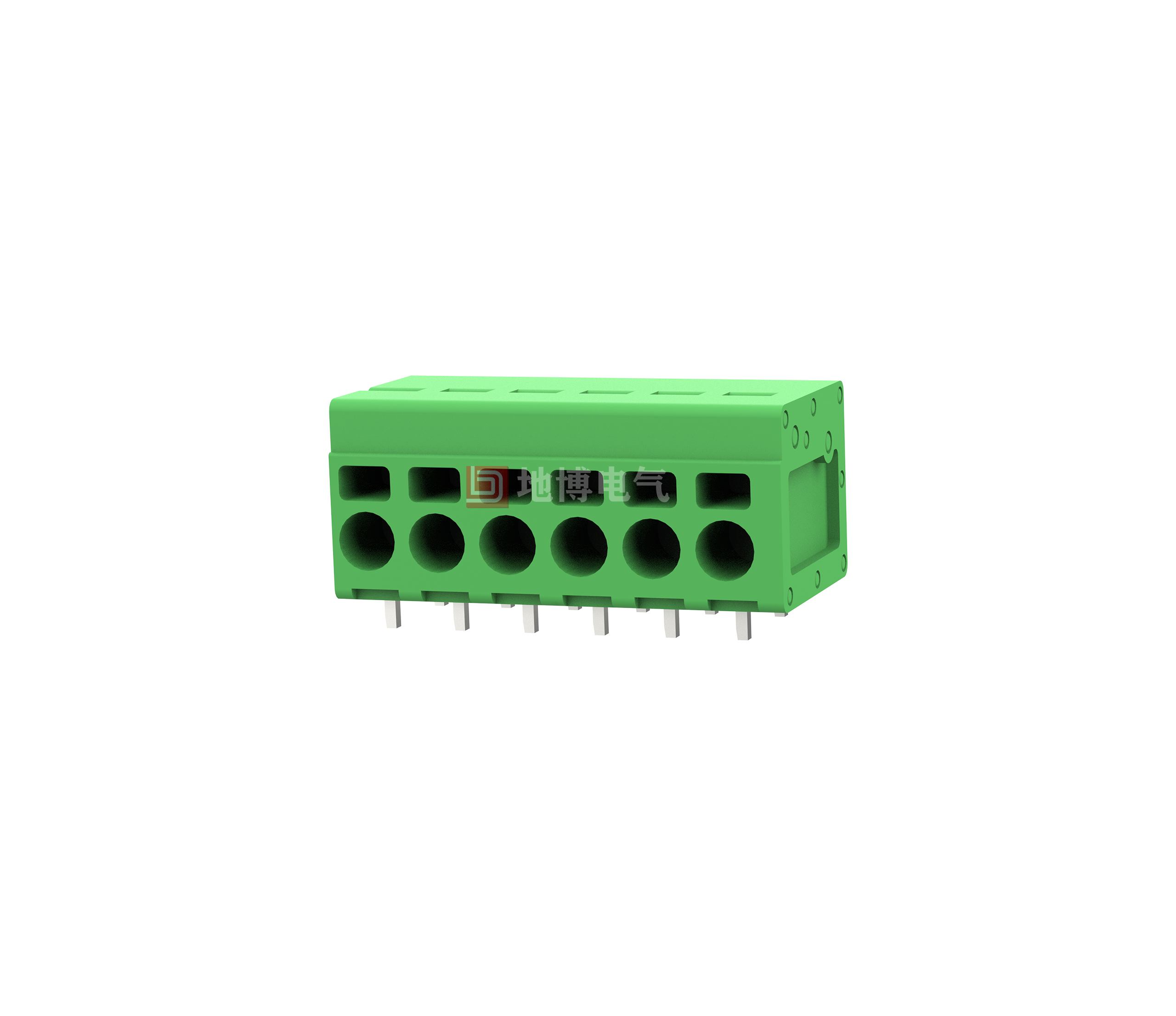

PCB terminal DB241R-5.0

Fixed connectors, Rated current: 24 A, Rated voltage (III/2): 400 V, Rated cross-section: 2.5 mm2, Number of potentials: 1-30, Number of rows: 1, Number of pins per row: 1-30, Series: DB241R, Pin pitch: 5 mm, Wiring: Straight spring connection, Mounting: Wave soldering, Wire/PCB connection orientation: 0°, Colour: green, Pins alignment: Straight, Pins [P]: 2.5 mm, Number of pins per potential: 2 Pin Arrangement: Straight, Pin [P]: 2.5 mm, Number of pins per potential: 2, Packing type: Carton

Advantages

☑ Time saving plug-in connection, no tools required
☑Set contact force ensures that the contacts remain stable over time
☑The pinch position can be opened by means of a set screwdriver, allowing easy connection of the wires
☑Wires can be connected and disconnected from a single direction so that they can be integrated into the front of the device
☑Two solder pins to reduce mechanical stress on the soldering point

0
Views: 22,723
Contact usDownload PDF View 3D Download CAD
  • Technical data

    Use Group
    B C D
    Rate Voltage [V]
    300 - 300
    Rated Current [A]
    20 - 10
    Wire Range [AWG]
    24~12
    Dielectric Voltage-Withstand
    1.6KV

    Technical specifications

    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    250 400 630
    Rated Current [A]
    24 24 24
    Impulse withstand voltage [KV]
    4 4 4
    Conductor cross section [mm²]
    0.2~2.5

    Materials

    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Sn plated

    General parameters

    Pitch/Poles [mm]/[P]
    5.0/1-30
    Stripping Length [mm]
    9~10
    Screw/Torque(Max)[N.m]
    /
    Operating temperature [℃]
    -40~+105
    Soldering temperature
    260℃/5S
    Pin dimensions [mm]
    0.8*0.8
    PCB Hole Diameter [mm]
    ∅1.3

    Dimensional drawings

    PCB cut-out diagram
