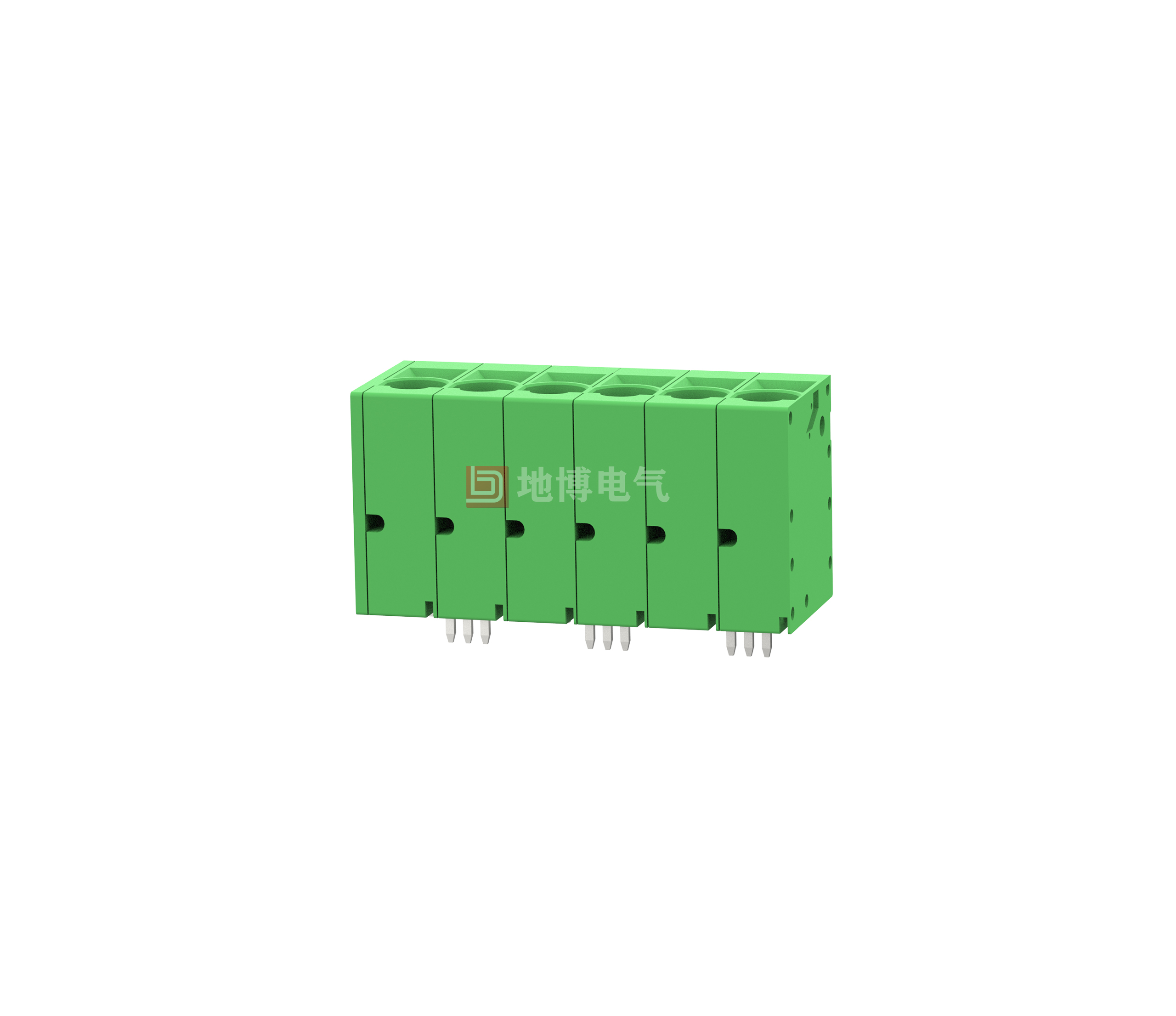

PCB terminal DB271VA-10.0

Fixed connectors, Rated current: 76 A, Rated voltage (III/2): 1000 V, Rated cross-section: 16 mm2, Number of potentials: 2-12, Number of rows: 1, Number of pins per row: 2-12, Series: DB271VA, Pin pitch: 10 mm, Wiring method: straight spring connection, Mounting: wave soldering, Wire/PCB connection direction: 90°, Colour: Green, Pin arrangement: Z-pin W, Solder pin [P]: 4 mm, Number of pins per potential: 3, Packing type: carton

Advantages

☑ Time saving plug-in connection, no tools required
☑ Set contact force ensures that the contacts remain stable over time
☑ The pinch position can be opened with a fixing screwdriver for easy connection of the wires
☑ Z-type solder pins are used and comply with the non-compulsory 600-V-UL certification
☑ Wires can be connected and disconnected from a single direction, allowing them to be integrated into the front of the device

0
Views: 24,825
Contact usDownload PDF View 3D Download CAD
  • Technical data

    Use Group
    B C D
    Rate Voltage [V]
    600 600 600
    Rated Current [A]
    66 66 5
    Wire Range [AWG]
    18-4
    Dielectric Voltage-Withstand
    2.2KV

    Technical specifications

    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    1000 1000 1000
    Rated Current [A]
    76 76 76
    Impulse withstand voltage [KV]
    8 8 8
    Conductor cross section [mm²]
    0.2-16.0

    Materials

    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Sn plated

    General parameters

     Pitch/Poles [mm]/[P]
    10/2-12
    Stripping Length [mm]
    18-20
    Screw/Torque(Max)[N.m]
    /
    Operating temperature [℃]
    -40~+105
    Soldering temperature
    260℃/5S
    Pin dimensions [mm]
    1.2*1.0
    PCB Hole Diameter [mm]
    Ø1.8

    Dimensional drawings

    PCB cut-out diagram
