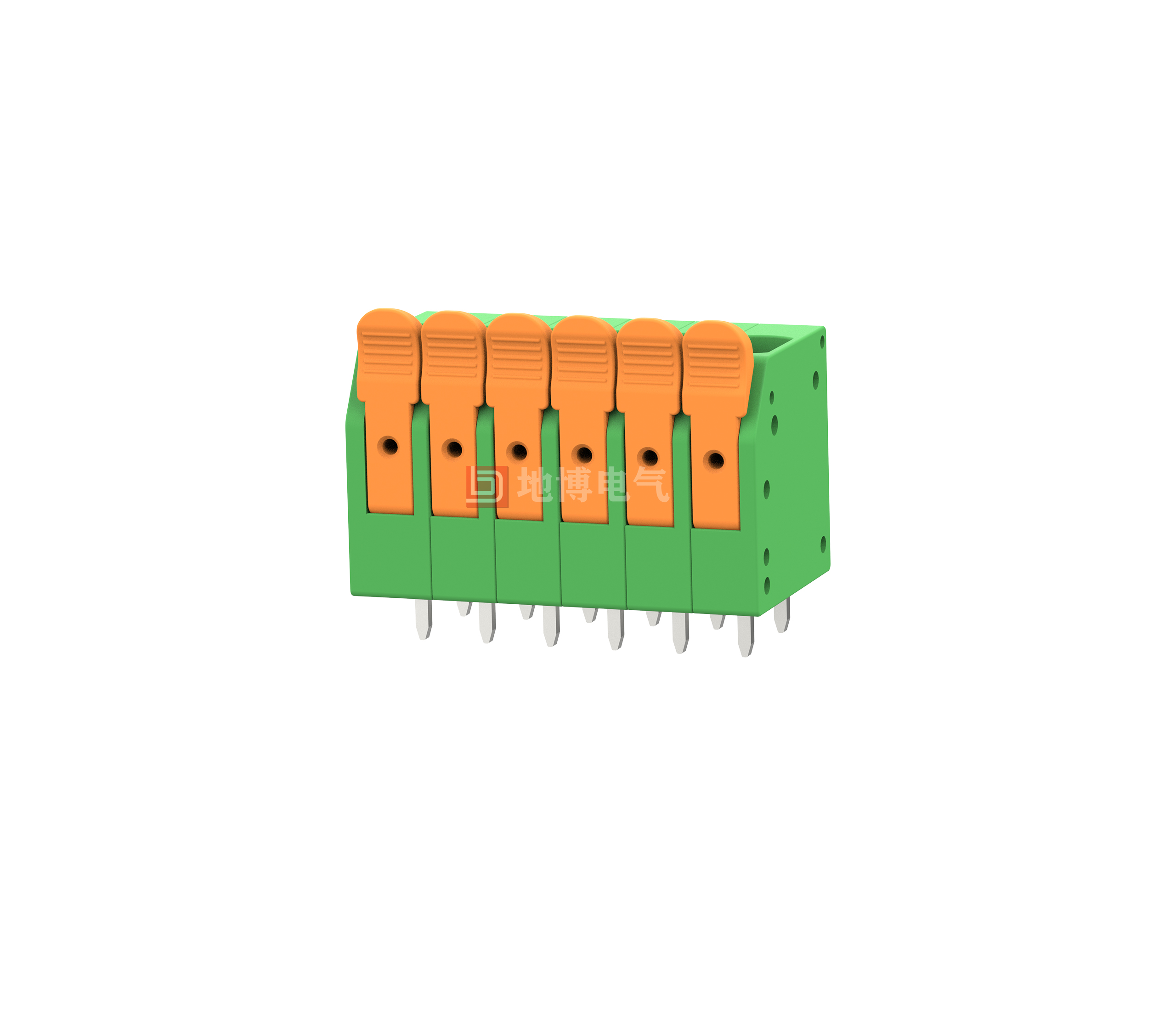

PCB terminal DB2404V-5.0

Fixed connectors, Rated current: 24 A, Rated voltage (III/2): 400 V, Rated cross-section: 4 mm2, Number of pins: 2-24, Number of rows: 1, Number of pins per row: 2-24, Series: DB2404V, Pin pitch: 5 mm, Wiring method: straight connection, Mounting: wave soldering, Wire/PCB connection direction: 90°, Colour: green, Pins alignment: straight, Pins [P]: 3.5 mm, Packing type: carton Pin Arrangement: Straight, Solder Pin [P]: 3.5 mm, Packing Type: Carton

Advantages

☑ Tool-less lever saves a lot of time when connecting and releasing wires with and without sleeves
☑ The lever position is clearly visible and provides reliable feedback on whether the wiring area is open or closed
☑ Set contact force ensures that the contacts remain stable over time
☑ Saving time by closing the lever to enable plug and play connections
☑ Colour coded pushbuttons for intuitive convenience

0
Views: 24,903
Contact usDownload PDF View 3D Download CAD
  • Technical data

    Use Group
    B C D
    Rate Voltage [V]
    300 300 300
    Rated Current [A]
    20 20 10
    Wire Range [AWG]
    24-12
    Dielectric Voltage-Withstand
    1.6KV

    Technical specifications

    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    320 400 630
    Rated Current [A]
    32 32 32
    Impulse withstand voltage [KV]
    4 4 4
    Conductor cross section [mm²]
    0.2-4.0

    Materials

    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Sn plated

    General parameters

    Pitch/Poles [mm]/[P]
    5.0/1-24
    Stripping Length [mm]
    9-11
    Screw/Torque(Max)[N.m]
    /
    Operating temperature [℃]
    -40~+105
    Soldering temperature
    260℃/5S
    Pin dimensions [mm]
    0.8*1.0
    PCB Hole Diameter [mm]
    Ø1.6

    Size Chart

    PCB opening diagram
