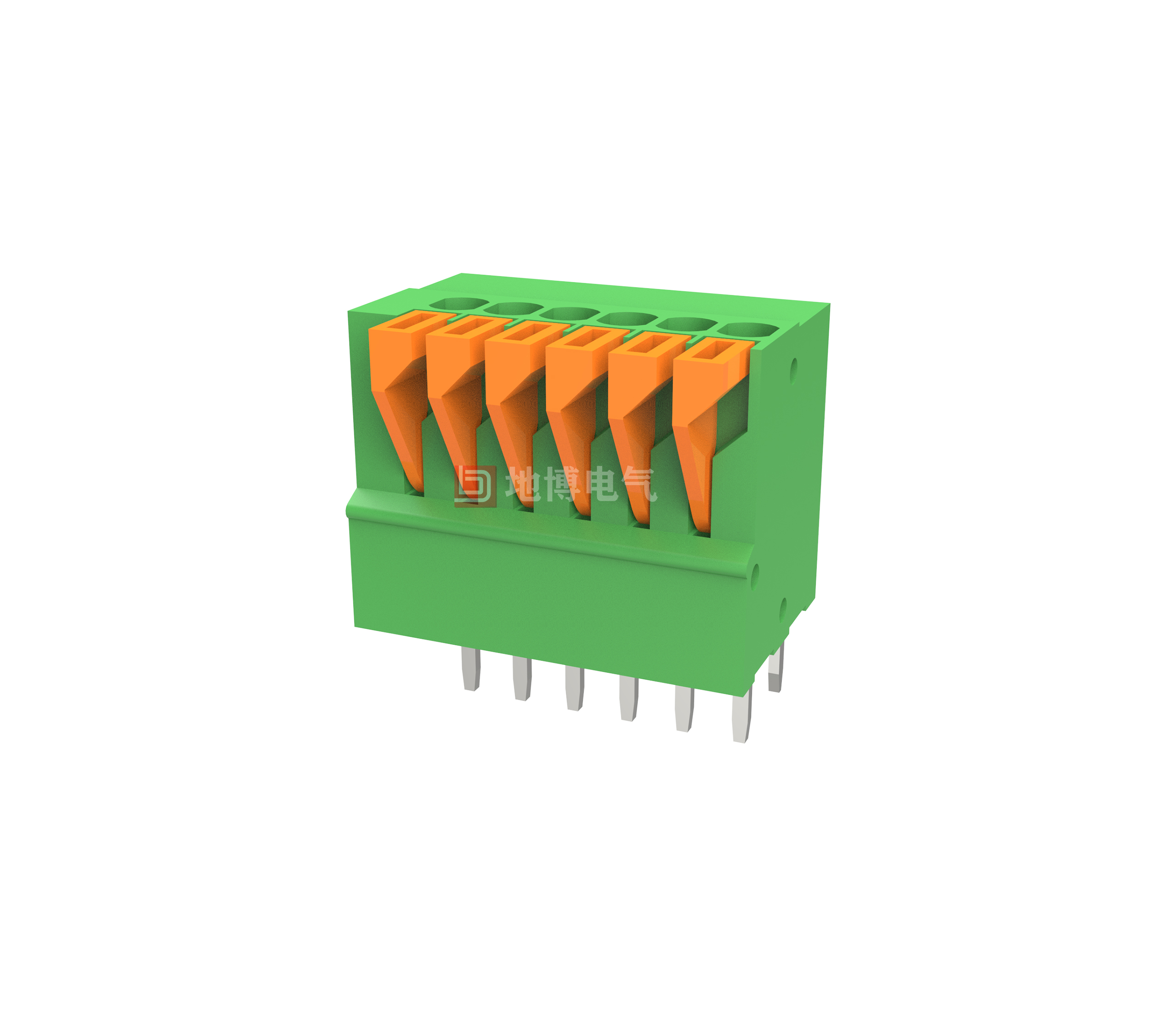

PCB terminal DB141V-2.54

Fixed connectors, Rated current: 6 A, Rated voltage (III/2): 160 V, Rated cross-section: 0.5 mm2, Number of potentials: 1-30, Number of rows: 1, Number of pins per row: 1-30, Series: DB141V, Pin pitch: 2.54 mm, Wiring method: straight spring connection, Mounting: wave soldering, Orientation of lead/PCB connection: 90°, Colour: Green, Pin arrangement: Straight, Solder pin [P]: 3.4 mm, Number of pins per potential: 2, Packaging type: Carton. The product can be composed of connectors of different bit numbers!

Advantages

☑ Time saving plug-in connection, no tools required
☑Set contact force ensures that the contacts remain stable over time
☑Colour coded joystick for intuitive use
☑Wires can be connected and disconnected from a single direction so that they can be integrated into the front of the device
☑Two solder pins to reduce mechanical stress on the solder points
☑Lock on the side allows the combination of different digits
☑Vertical connection allows for multiple rows on the PCB

0
Views: 1,938
Contact usDownload PDF View 3D Download CAD
  •

    Technical data-UL/CUL



    Use Group
    B C D
    Rate Voltage [V]
    150 - -
    Rated Current [A]
    4 - -
    Wire Range [AWG]
    26~18
    Dielectric Voltage-Withstand
    1.3KV



    Technical data - IEC



    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    63 160 320
    Rated Current [A]
    6 6 6
    Impulse withstand voltage [KV]
    2.5 2.5 2.5
    Conductor cross section [mm²]
    0.2~0.5



    Material information



    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Sn Plated



    General parameters



    Pitch/Poles [mm]/[P]
    2.54/1~30
    Stripping Length [mm]
    11
    Screw/Torque(Max)[N.m]
    /
    Operating temperature [℃]
    -40~+105
    Soldering temperature
    250℃/5S
    Pin dimensions [mm]
    0.7*0.5
    PCB Hole Diameter [mm]
    ∅1.2



    Dimensional drawings





    PCB cut-out diagram
