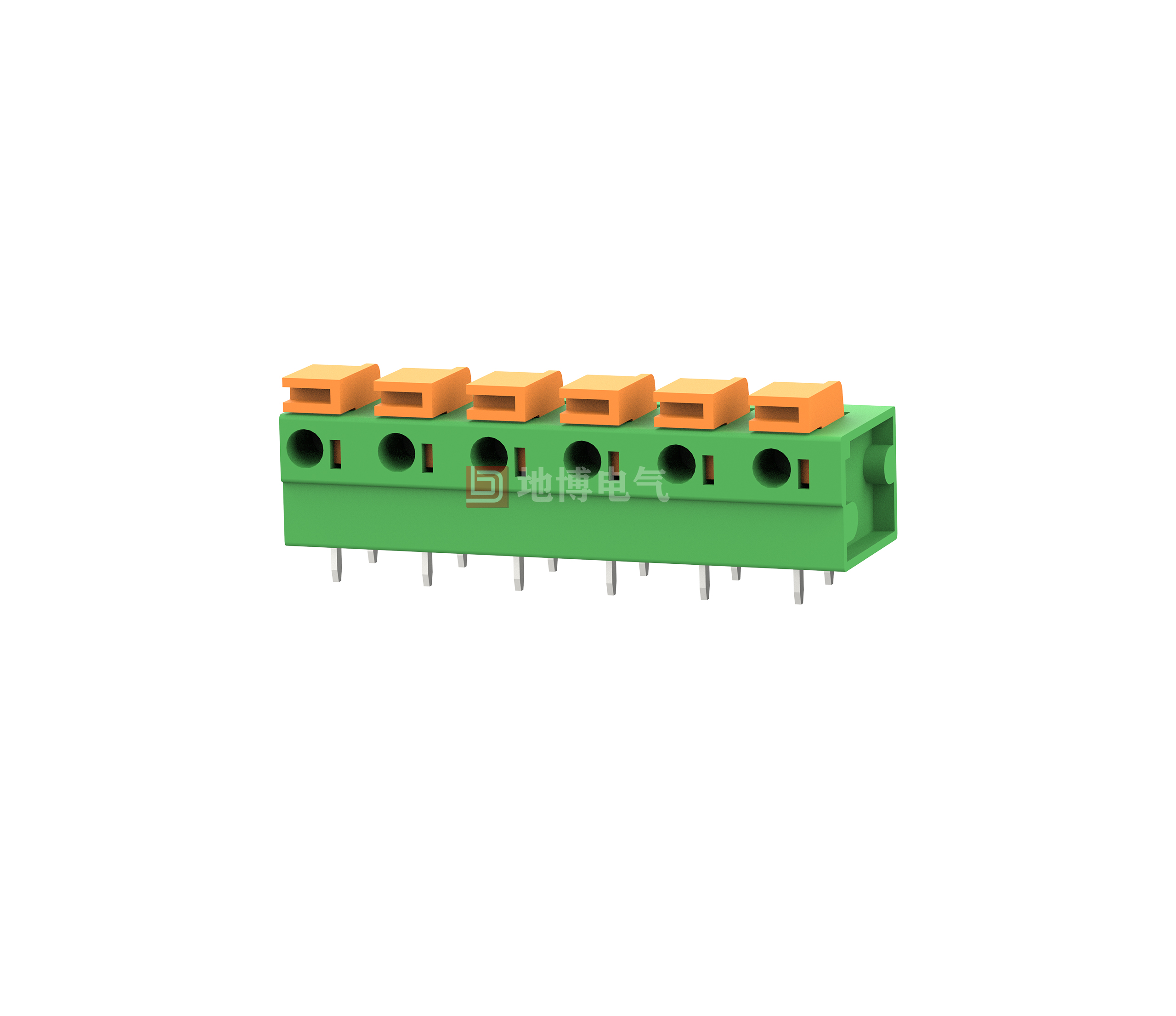

PCB terminal DB142R-7.62

Fixed connectors, Rated current: 17.5 A, Rated voltage (III/2): 630 V, Rated cross-section: 1.5 mm2, Number of potentials: 2-24, Number of rows: 1, Number of pins per row: 2-24, Series: DB142R, Pin pitch: 7.62 mm, Wiring method: straight spring connection, Mounting: wave soldering, Wire/PCB connection direction: 0°, Colour: green, Pin arrangement: straight, Pin [P]: 3.4 mm, Number of pins per potential: 2 : Green, Pin Arrangement: Straight, Solder Pin [P]: 3.4 mm, Number of Pins per Potential: 2, Packing Type: Carton

Advantages

☑Time saving plug-in connection, no tools required
☑Set contact force guarantees stable contacts over time
☑Colour coded joystick for intuitive use
☑The wires can be connected and disconnected from a single direction, allowing them to be integrated into the front of the device
☑Two solder pins to reduce mechanical stress on the solder points
☑The combination of different digits is possible through the side latch

0
Views: 1,817
Contact usDownload PDF View 3D Download CAD
  •

    Technical data-UL/CUL



    Use Group
    B C D
    Rate Voltage [V]
    300 - 300
    Rated Current [A]
    10 - 10
    Wire Range [AWG]
    24~14
    Dielectric Voltage-Withstand
    1.6KV



    Technical data-IEC



    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    500 630 1000
    Rated Current [A]
    15 15 15
    Impulse withstand voltage [KV]
    6 6 6
    Conductor cross section [mm²]
    0.2~1.5



    Material information



    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Sn plated



    General parameters



    Pitch/Poles [mm]/[P]
    7.5 7.62/2~24
    Stripping Length [mm]
    10~11
    Screw/Torque(Max)[N.m]
    /
    Operating temperature [℃]
    -40~+105
    Soldering temperature
    250℃/5S
    Pin dimensions [mm]
    1.0*0.5
    PCB Hole Diameter [mm]
    ∅1.4



    Dimensional drawings

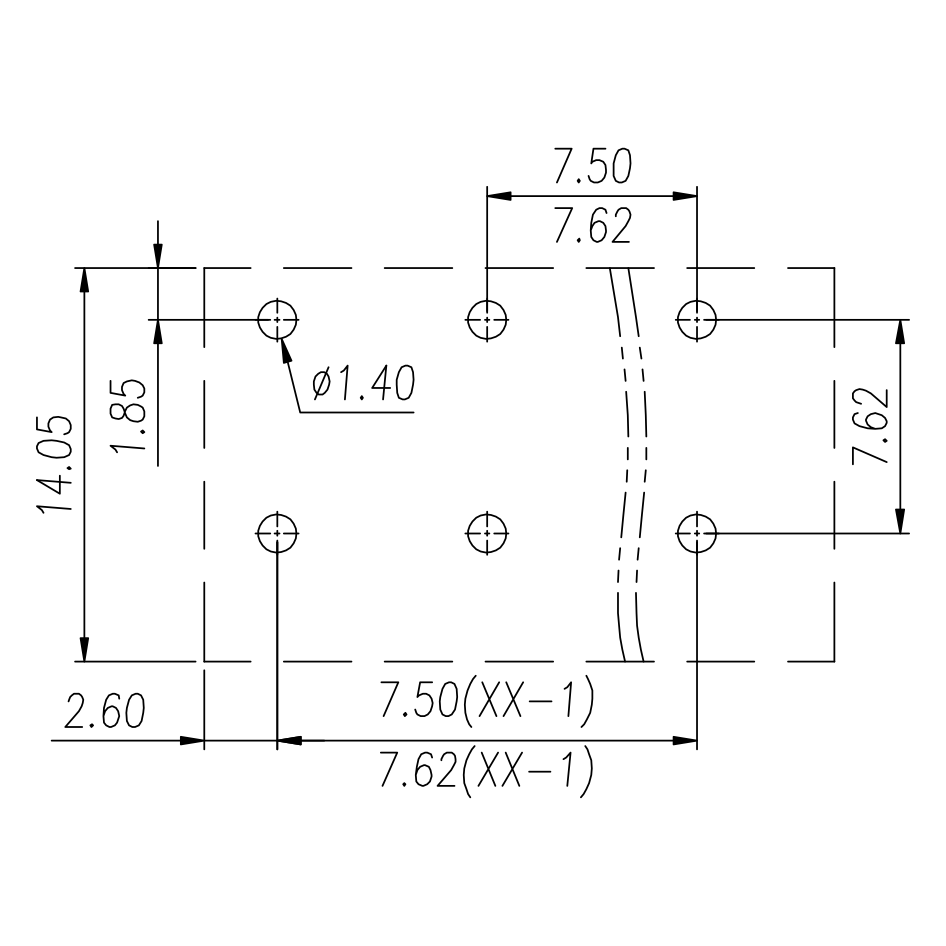

    PCB cut-out diagram
