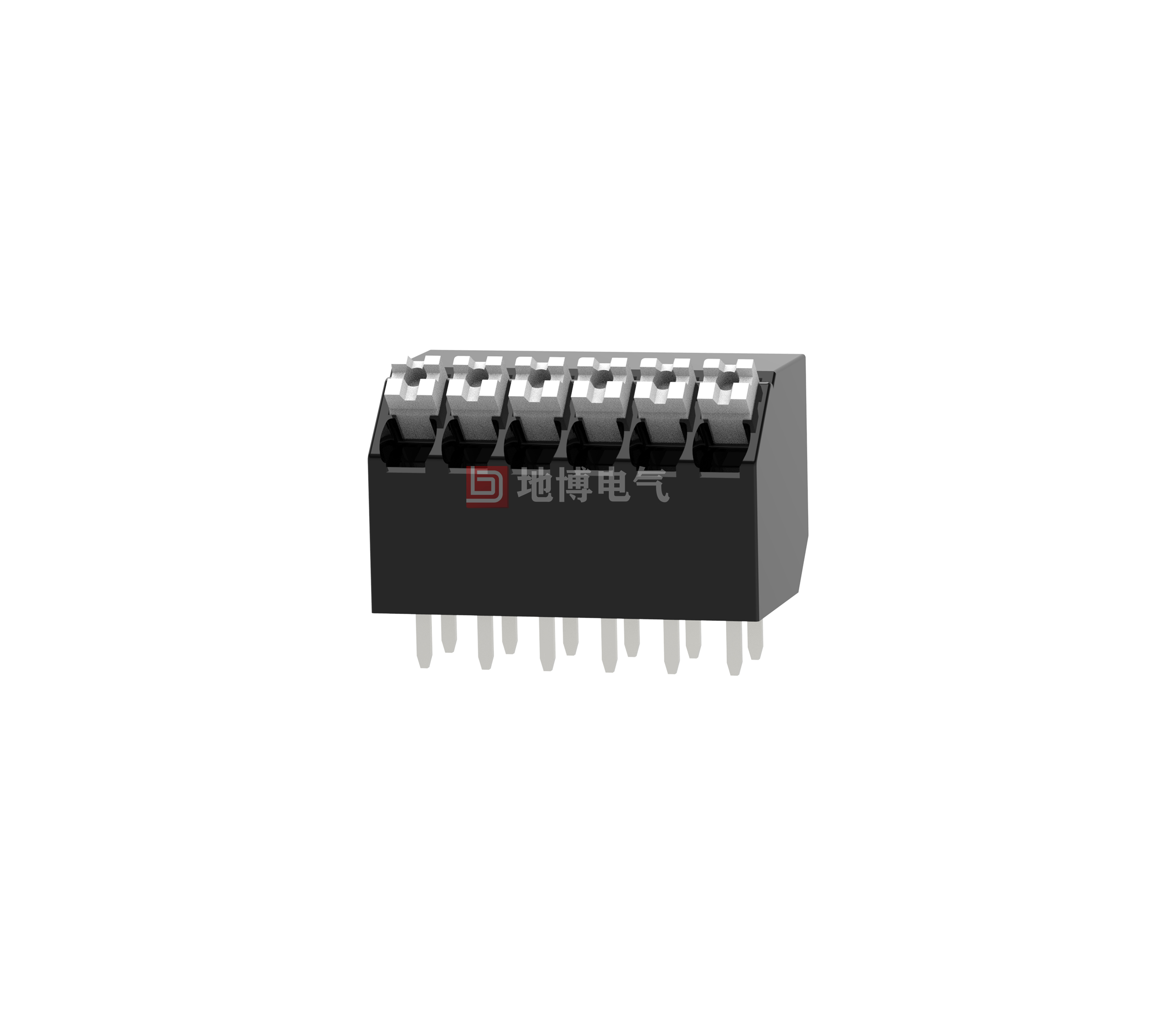

PCB terminal DB212S-3.5

Fixed connectors, Rated current: 13.5 A, Rated voltage (III/2): 160 V, Rated cross-section: 1.5 mm2, Number of potentials: 2-24, Number of rows: 1, Number of pins per row: 2-24, Series: DB212S, Pin pitch: 3.5 mm, Wiring method: straight spring connection, Mounting: THR soldering, Orientation of lead/PCB connection: 45°, Colour: black, Pin arrangement: straight, Pin [P]: 2.6 mm, Number of pins per potential: 2, Packaging type: carton Colour: black, Pin arrangement: straight, Pin [P]: 2.6 mm, Number of pins per potential: 2, Packing type: carton. Suitable for CAT5

Advantages

☑ Time saving plug-in connection, no tools required
☑Set contact force ensures that the contacts remain stable over time
☑Colour coded joystick for intuitive use
☑Designed to be integrated into the SMT soldering process
☑Wires can be connected and disconnected from a single direction, allowing them to be integrated into the front of the equipment
☑Quick and easy testing with built-in test elements
☑Two soldering points per position to reduce mechanical stress on the soldering point

0
Views: 2,636
Contact usDownload PDF View 3D Download CAD
  •

    Technical data-UL/CUL



    Use Group
    B C D
    Rate Voltage [V]
    300 - 300
    Rated Current [A]
    10 - 10
    Wire Range [AWG]
    26~14
    Dielectric Voltage-Withstand
    1.6KV



    Technical data-IEC



    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    160 160 320
    Rated Current [A]
    17.5 17.5 17.5
    Impulse withstand voltage [KV]
    2.5 2.5 2.5
    Conductor cross section [mm²]
    0.2~1.5



    Material information



    Insulation Material
    LCP
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Sn plated



    General parameters



    Pitch/Poles [mm]/[P]
    3.5/2~24
    Stripping Length [mm]
    7~8
    Screw/Torque(Max)[N.m]
    /
    Operating temperature [℃]
    -40~+130
    Soldering temperature
    285℃/10S
    Pin dimensions [mm]
    0.8*0.4
    PCB Hole Diameter [mm]
    ∅1.2

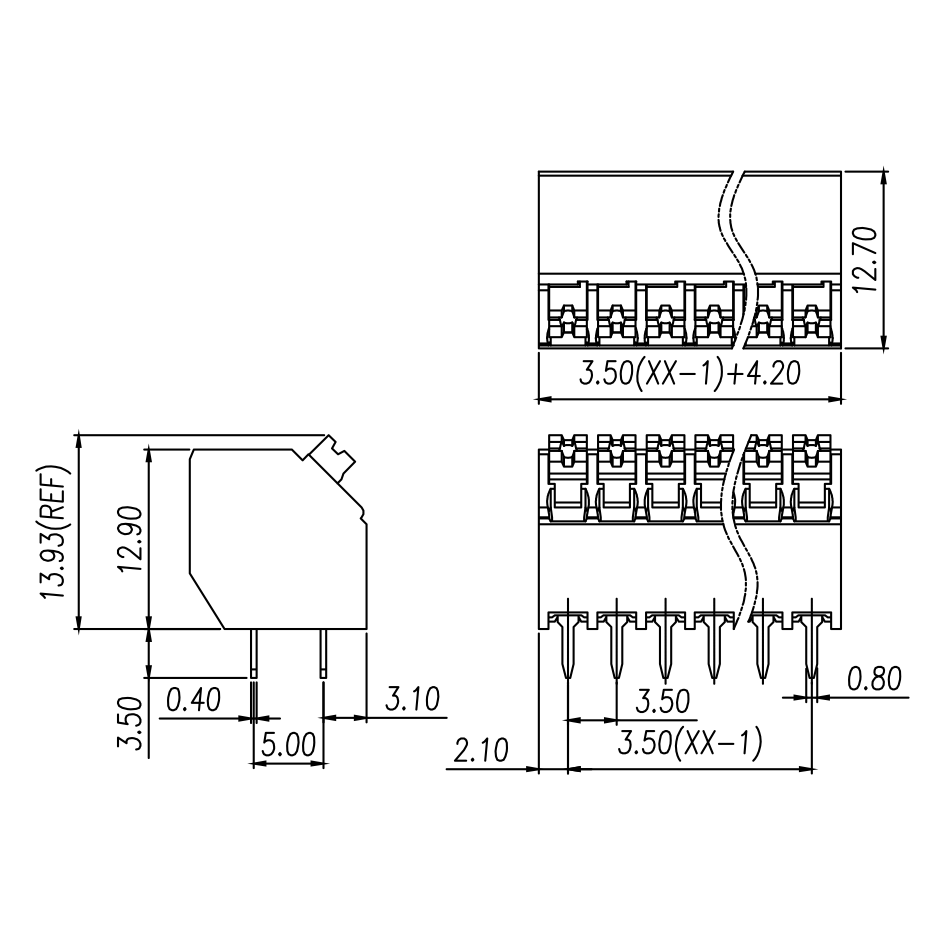

    Dimensional drawings

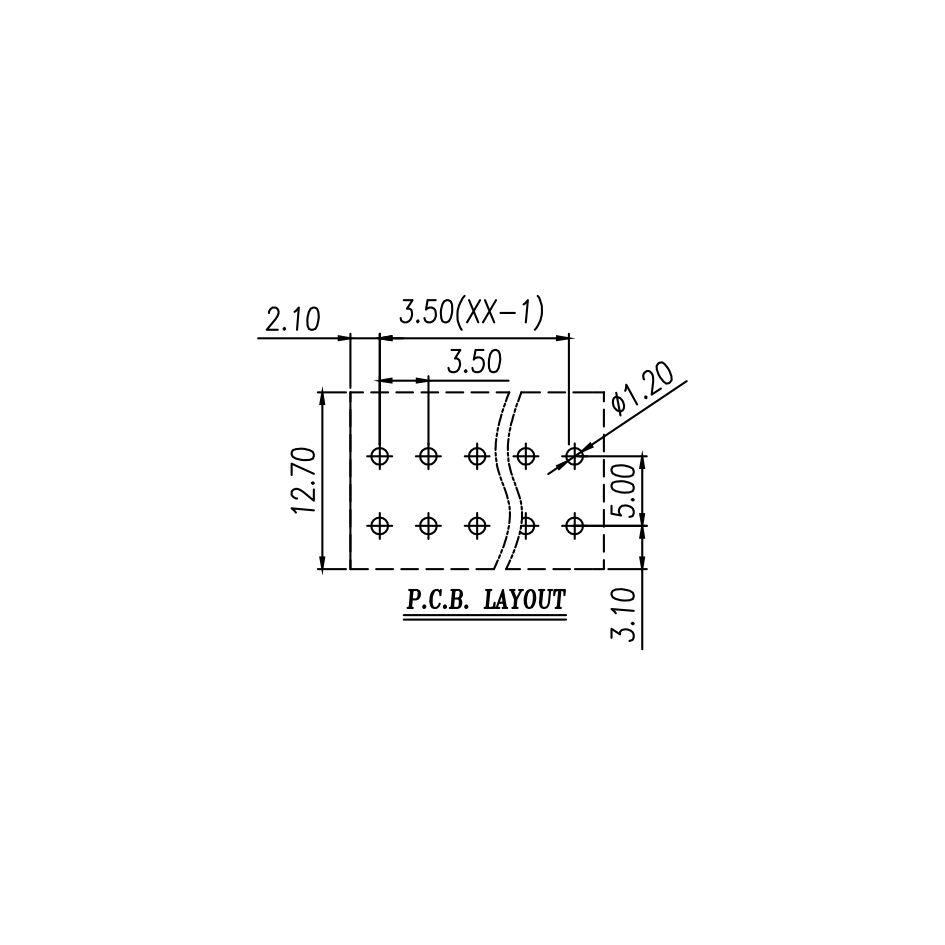

    PCB cut-out diagram
