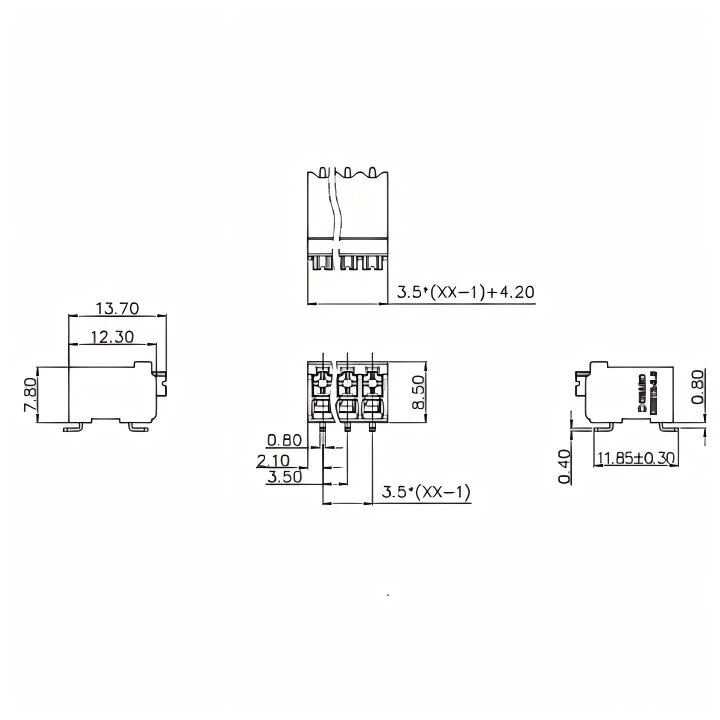

PCB terminal DB212TR-3.5

Fixed connector, Rated current: 12 A, Rated voltage (III/2): 300 V, Rated cross-section: 1.5 mm², Number of positions: 2-24, Number of rows: 1, Positions per row: 2-24, Product series: DB212TR, Pitch: 3.5 mm, Connection method: Push-wire spring connection, Mounting: THR welding, Wire/PCB connection direction: 90°, Color: Black, Pin arrangement: In-line, Solder pin [P]: 2.6 mm, Number of solder pins per potential: 2, Packaging type: Carton packaging

Advantages

☑ Time saving plug-in connection, no tools required
☑Set contact force ensures that the contacts remain stable over time
☑Colour coded joystick for intuitive use
☑Designed to be integrated into the SMT soldering process
☑Wires can be connected and disconnected from a single direction, allowing them to be integrated into the front of the equipment
☑Quick and easy testing with built-in test elements
☑Two soldering points per position to reduce mechanical stress on the soldering point
