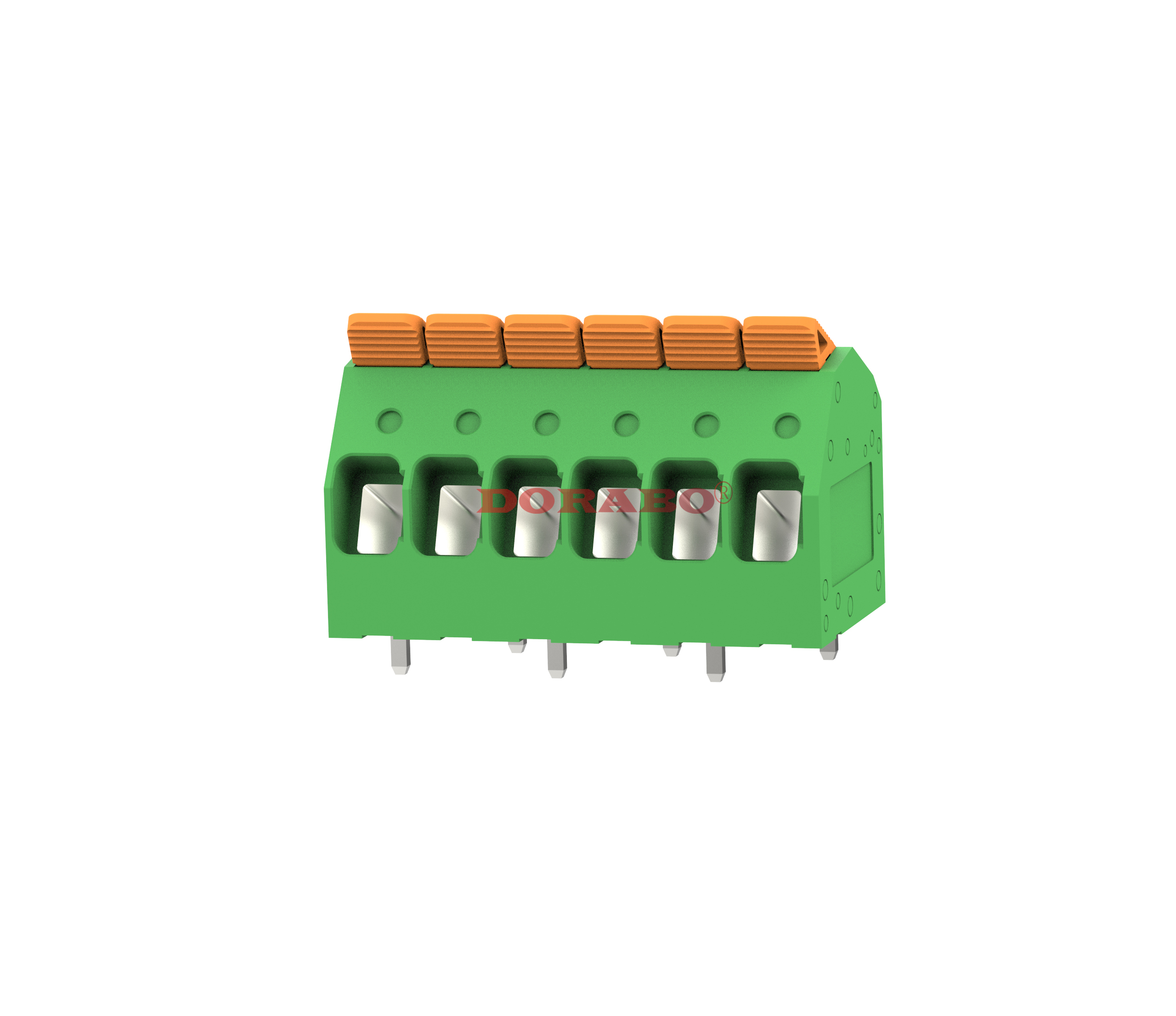

PCB Terminal DB2406S-7.5

PCB terminal block, Rated current: 41 A, Rated voltage (III/2): 1000 V, Rated cross-section: 6 mm 2, Potentials: 2-24, Rows: 1, Positions per row: 2-24, Series: DB2406S, pitch: 7.5 mm, Connection: Push-in, Mounting: Wave soldering, Conductor/PCB connection: 55 °, Color: Green, Pin arrangement: Z-pin W, Solder pin [P]: 3.6 mm, Packing Type: Carton packing

Advantage

☑ The tool-free lever saves a lot of time when connecting and releasing conductors with/without sleeves
☑ The position of the lever is clear at a glance and reliably provides feedback on whether the wiring area is open or closed
☑ The set contact force ensures that the contacts remain stable for a long time
☑ Plug-in connection is achieved by closing the lever, saving time
☑ The ejection button is color-coded and intuitive
0
Views: 68
Contact usDownload PDF View 3D Download CAD
  • Technical data

    Rank Use Group
    B C D
    Rate Voltage [V]
    600 600 600
    Rated Current [A]
    41 41 5
    Wire Range [AWG]
    24-8
    Dielectric Voltage-Withstand
    2.2KV

    Technical parameters

    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    800 1000 1000
    Rated Current [A]
    41 41 41
    Impulse withstand voltage [KV]
    8 8 8
    Conductor cross section [mm²]
    0.2-6.0

    material

    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Sn plated

    General parameters

    Pitch/Poles [mm]/[P]
    7.5/2-24
    Stripping Length [mm]
    11-13
    Screw/Torque(Max)[N.m]
    /
    Operating temperature [°C]
    -40~+105
    Soldering temperature
    260℃/5S
    Pin dimensions [mm]
    1.2*1.5
    PCB板孔径 PCB Hole Diameter [mm]
    Ø2.0

    Dimensional drawings

    PCB perforation diagram
