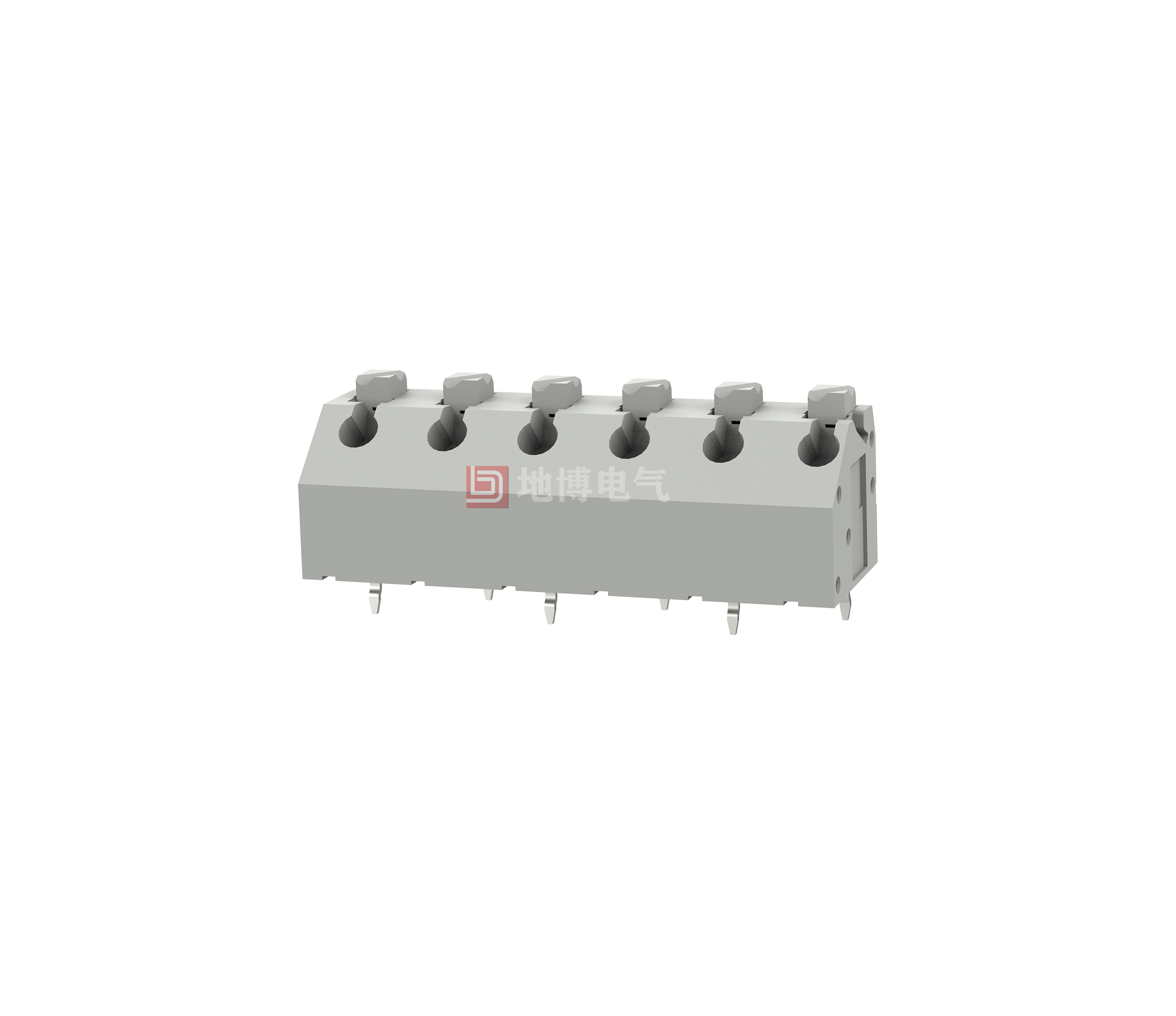

PCB terminal DB250B-7.0

Fixed connectors, Rated current: 8 A, Rated voltage (III/2): 400 V, Rated cross-section: 1.5 mm2, Number of potentials: 1-30, Number of rows: 1, Number of digits per row: 1-30, Series: DB250B, Pin pitch: 7.0 mm, Wiring method: straight spring connection, Mounting: wave soldering, Wire/PCB connection direction: 45°, Colour: green Pin arrangement: Z-pin M, Solder pin [P]: 3.5 mm, Number of pins per potential: 1, Packing type: carton. Solder pins misaligned, double row

Advantages

☑ Time saving plug-in connection, no tools required
☑Set contact force ensures that the contact remains stable over time
☑Bend connection allows for multiple rows on the PCB

0
Views: 2,522
Contact usDownload PDF View 3D Download CAD
  •

    Technical data-UL/CUL



    等级 Use Group
    B C D
    额定电压 Rate Voltage [V]
    300 - 300
    额定电流 Rated Current [A]
    5 - 5
    接线范围 Wire Range [AWG]
    22-18
    耐电压 Dielectric Voltage-Withstand
    1.6KV



    Technical data-IEC



    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    160 160 320
    Rated Current [A]
    8 8 8
    Impulse withstand voltage [KV]
    2.5 2.5 2.5
    Conductor cross section [mm²]
    0.2-1.0



    Material information



    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Sn plated



    General parameters



    Pitch/Poles [mm]/[P]
    7.0/1-30
    Stripping Length [mm]
    8-9
    Screw/Torque(Max)[N.m]
    /
    Operating temperature [℃]
    -40~+105
    Soldering temperature
    250℃/5S
    Pin dimensions [mm]
    0.75*0.4
    PCB Hole Diameter [mm]
    Ø1.2

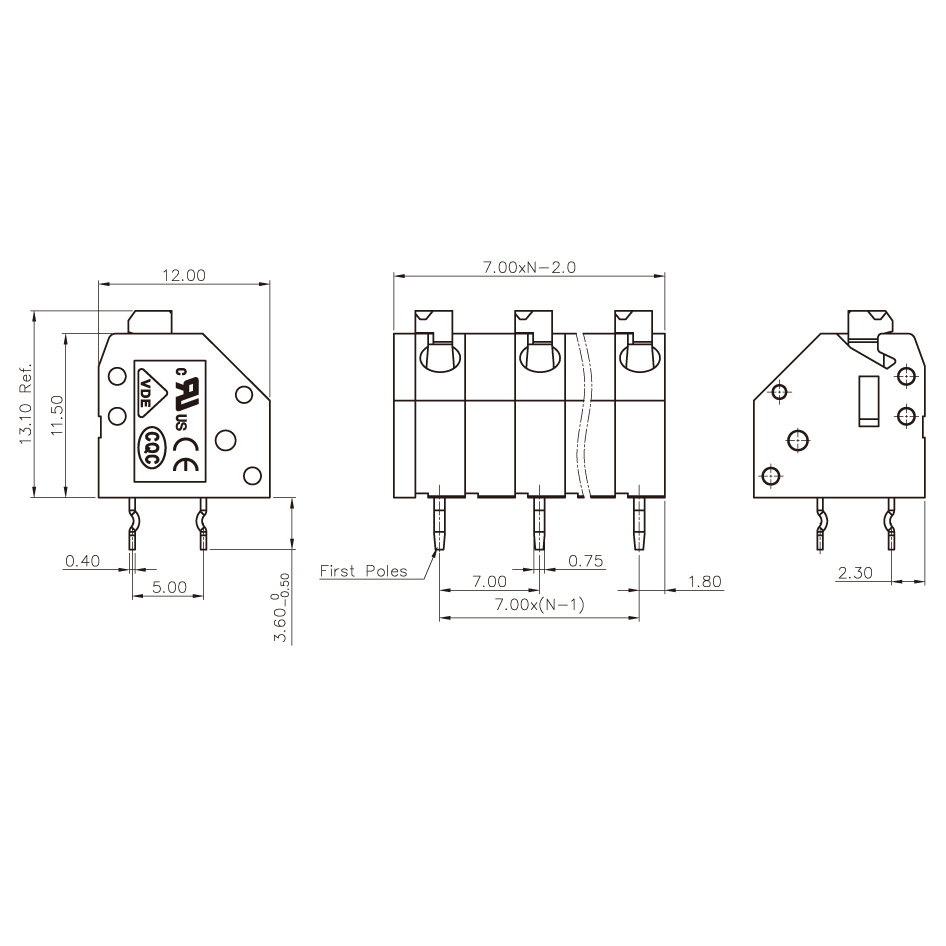

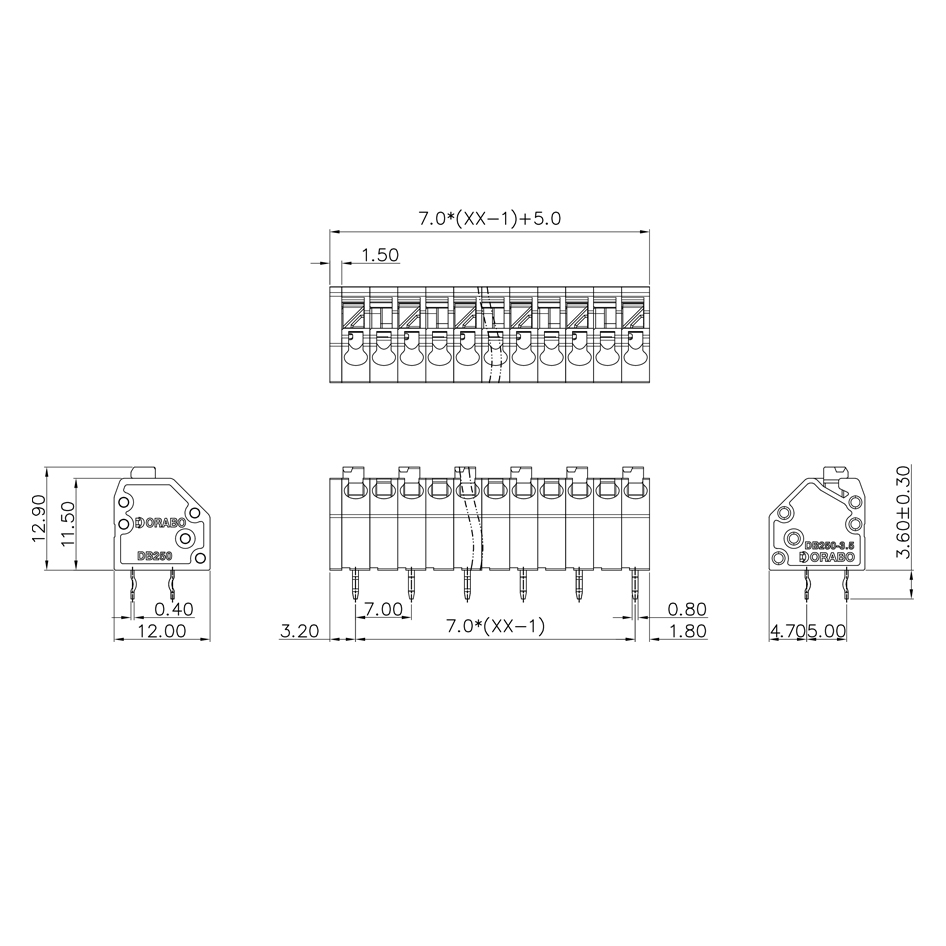

    Dimensional drawings

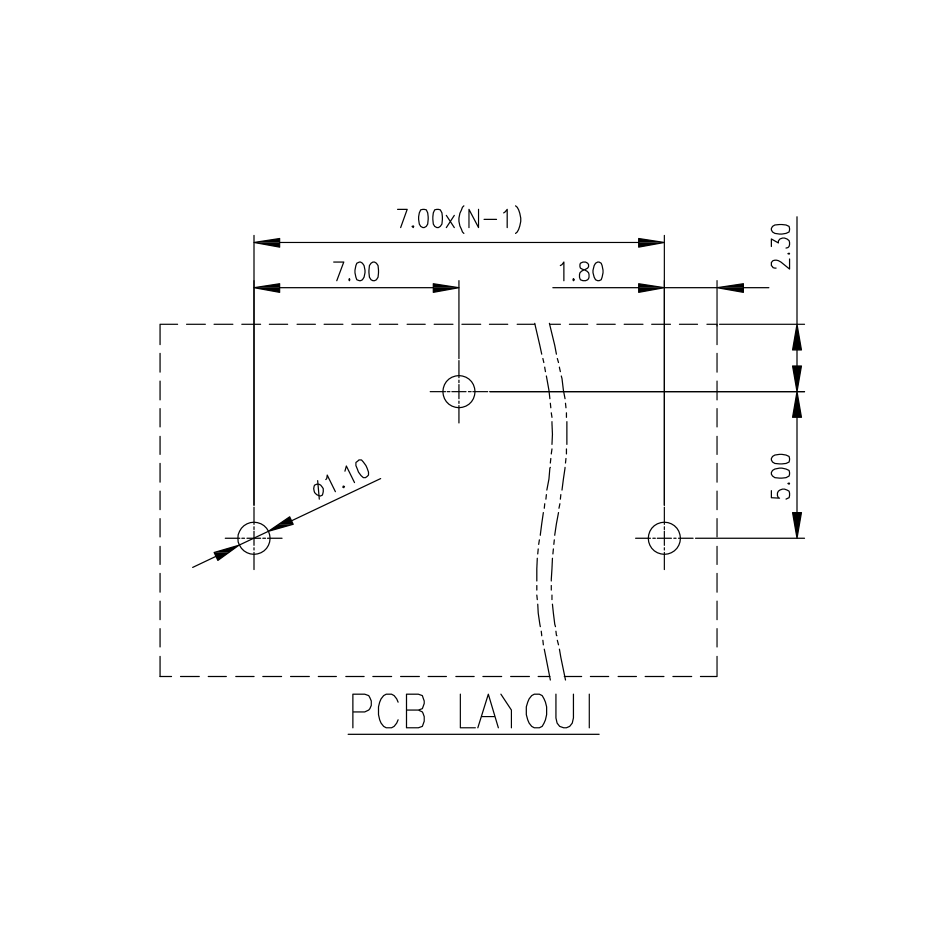

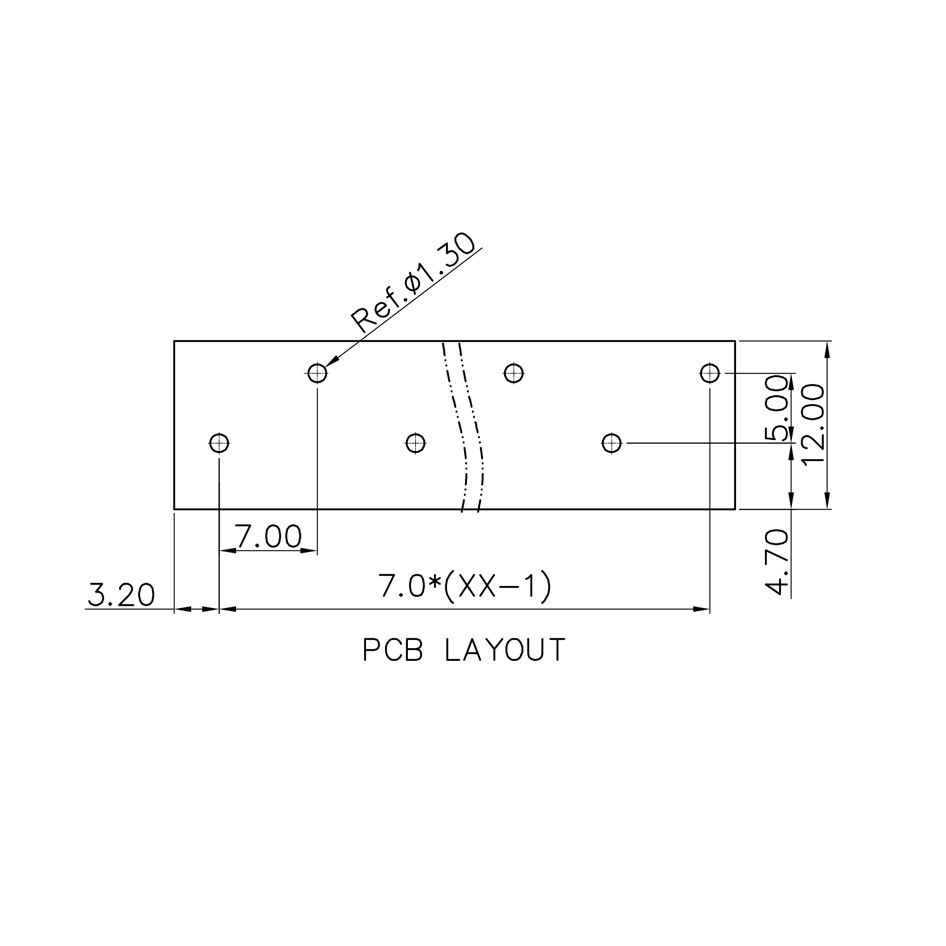

    PCB cut-out diagram
