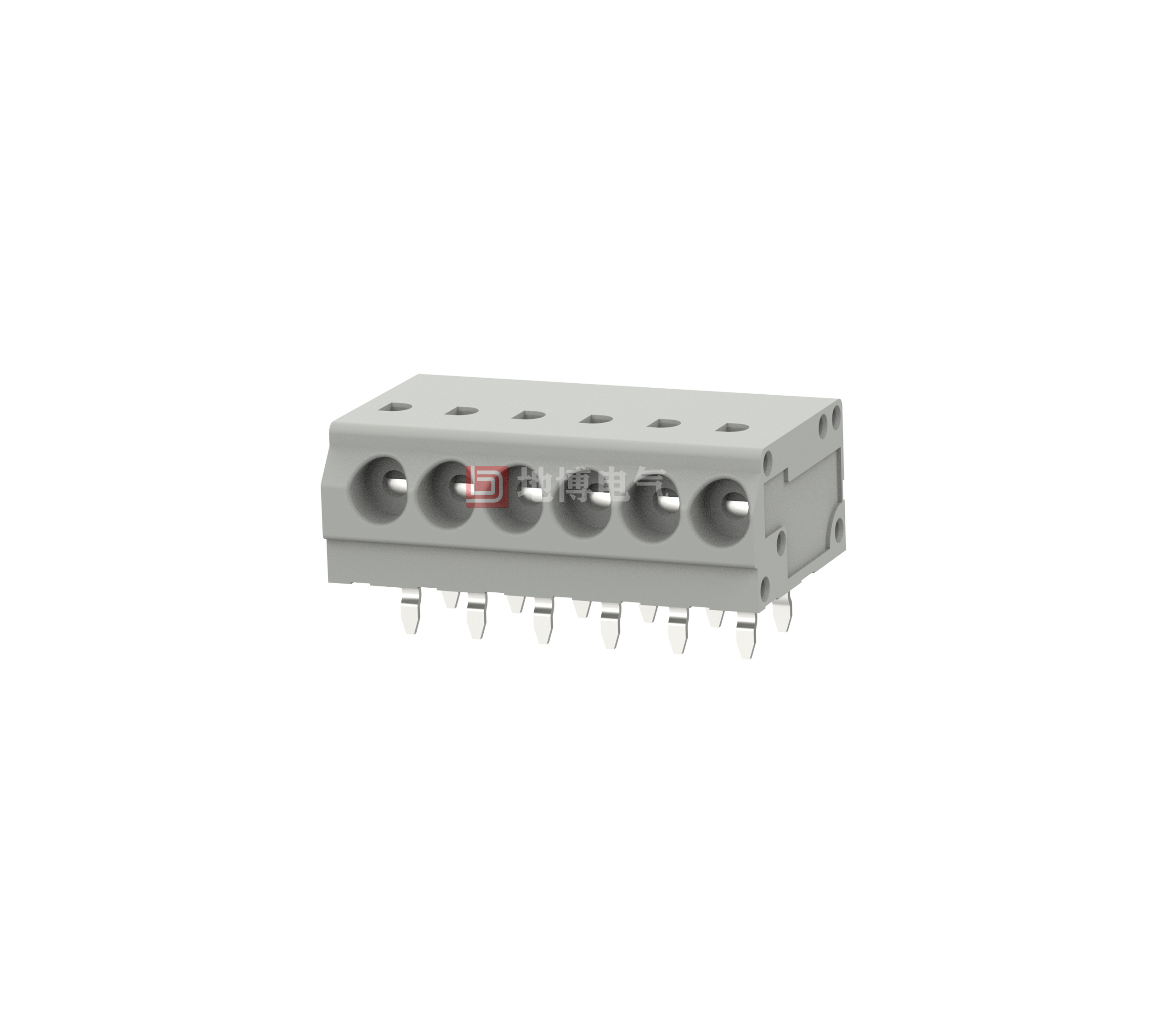

PCB terminal DB250WA-3.5

Fixed connectors, Rated current: 3 A, Rated voltage (III/2): 250 V, Rated cross-section: 0.5 mm2, Number of potentials: 1-30, Number of rows: 1, Number of digits per row: 1-30, Series: DB250WA, Pin pitch: 3.5 mm, Wiring method: straight spring connection, Mounting: wave soldering, Wire/PCB connection direction: 45°, Colour: Green, Pin arrangement: Z-pin M, Solder pin [P]: 3.6 mm, Number of pins per potential: 1, Packing type: carton. Solder pins misaligned, double row

Advantages

☑Time saving plug-in connection, no tools required
☑Set contact force ensures that the contact remains stable over time
☑Bend connection allows for multiple rows on the PCB

0
Views: 22,520
Contact usDownload PDF View 3D Download CAD
  •

    Technical data-UL/CUL



    Use Group
    B C D
    Rate Voltage [V]
    300 - 300
    Rated Current [A]
    4 - 4
    Wire Range [AWG]
    22~18
    Dielectric Voltage-Withstand
    1.6KV



    Technical data-IEC



    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    160 160 320
    Rated Current [A]
    8 8 8
    Impulse withstand voltage [KV]
    2.5 2.5 2.5
    Conductor cross section [mm²]
    0.2~1.0



    Material information



    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Sn plated



    General parameters



    Pitch/Poles [mm]/[P]
    3.5/1~30
    Stripping Length [mm]
    8~9
    Screw/Torque(Max)[N.m]
    /
    Operating temperature [℃]
    -40~+105
    Soldering temperature
    250℃/5S
    Pin dimensions [mm]
    0.75*0.4
    PCB Hole Diameter [mm]
    ∅1.1







    Dimensional drawings









    PCB cut-out diagram
