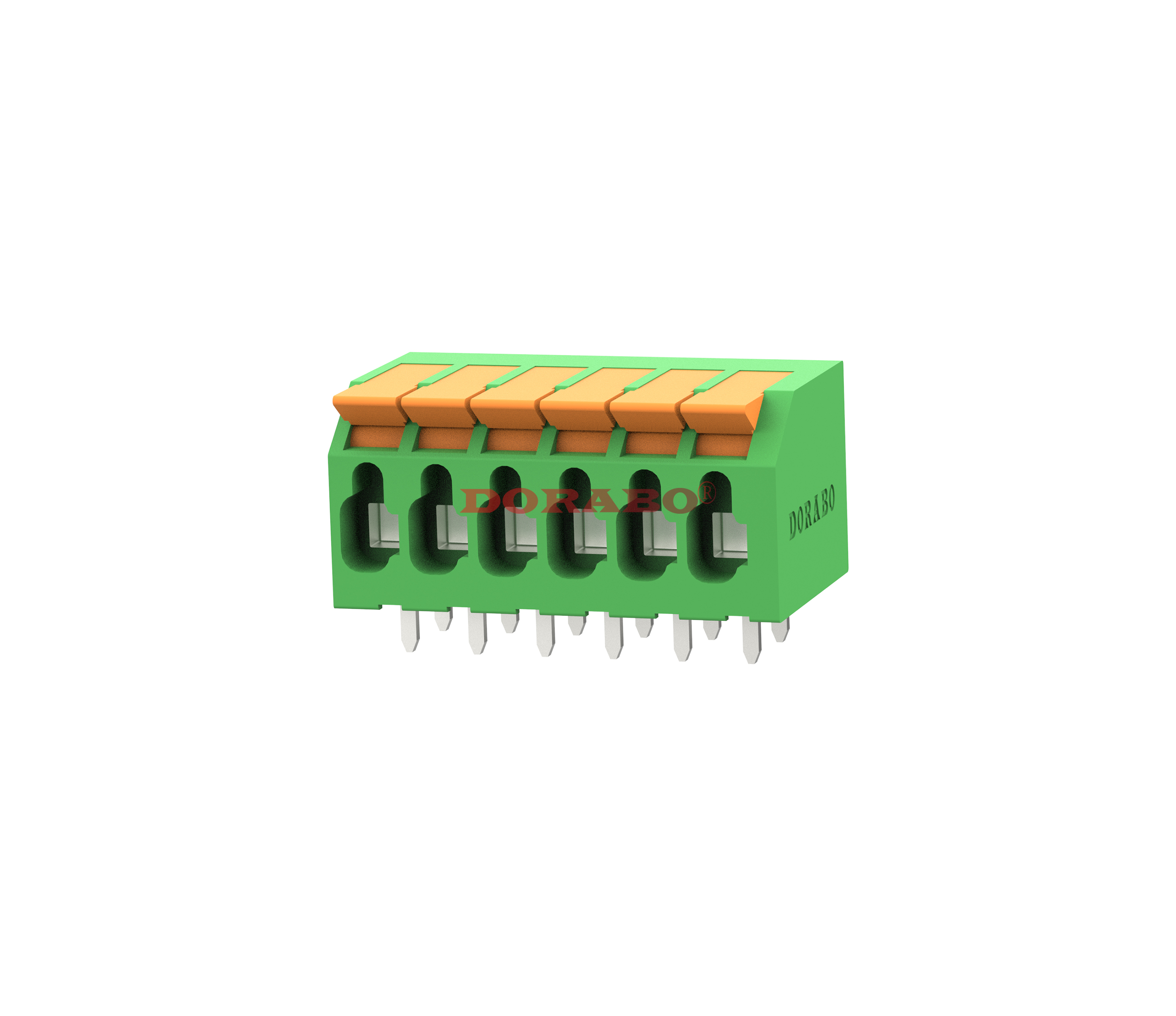

PCB Terminal DB803-3.5

PCB terminal block, Rated current: 10 A, Rated voltage (III/2): 300 V, Rated cross-section: 1.5 mm2, Number of potentials: 1-24, Number of rows: 1, Number of positions per line: 1-24, Product family: DB803, pitch: 3.5 mm, Connection: Push-in, Mounting: Wave soldering, Conductor/PCB connection direction: 0 °, Color: Green, Pin arrangement: Straight, Solder pins [P]: 3.0 mm, Number of solder pins per potential: 2, Packaging type: Carton

Advantage

☑ The tool-free lever saves a lot of time when connecting and releasing conductors with/without sleeves

☑ The position of the lever is clear at a glance and reliably provides feedback on whether the wiring area is open or closed
☑ The set contact force ensures that the contacts remain stable for a long time
☑ Plug-in connection is achieved by closing the lever, saving time
☑ The ejection button is color-coded and intuitive
0
Views: 54
Contact usDownload PDF View 3D Download CAD
  • Technical data

    Rank Use Group
    B C D
    Rate Voltage [V]
    300 - 300
    Rated Current [A]
    10 - 10
    Wire Range [AWG]
    24~16
    Dielectric Voltage-Withstand
    1.6KV

    Technical parameters

    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    160 250 320
    Rated Current [A]
    10 10 10
    Impulse withstand voltage [KV]
    2.5 2.5 2.5
    Conductor cross section [mm²]
    0.2~1.5

    material

    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Sn plated

    General parameters

    Pitch/Poles [mm]/[P]
    3.5/1-24
    Stripping Length [mm]
    9
    Screw/Torque(Max)[N.m]
    /
    Operating temperature [°C]
    -40~+105
    Soldering temperature
    260℃/5S
    Pin dimensions [mm]
    0.5*0.8
    PCB板孔径 PCB Hole Diameter [mm]
    ∅1.3

    Dimensional drawings

    PCB perforation diagram
