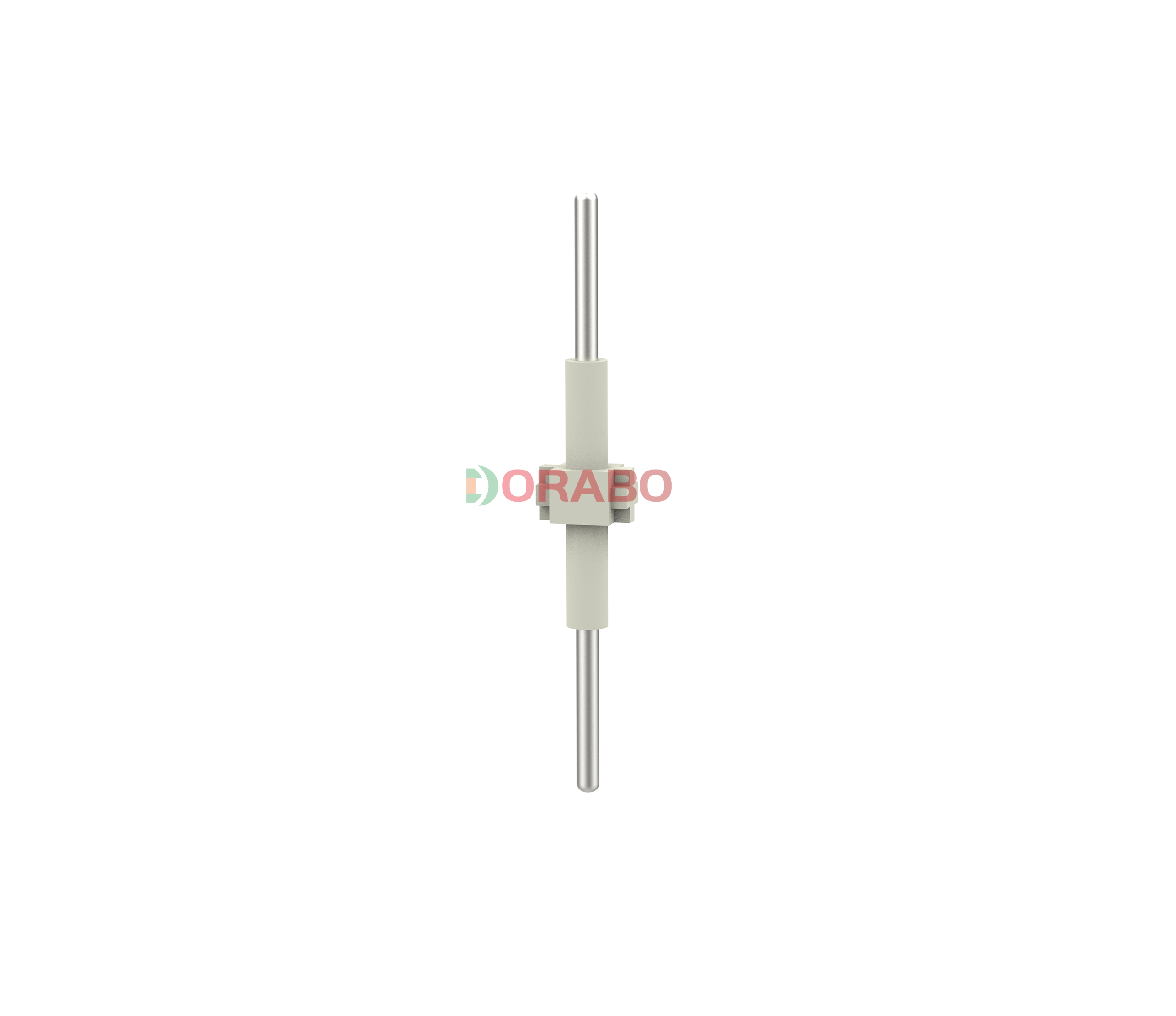

Single Row Pin Header DB2062V-4.0

Pin Connector, Rated Cross-sectional Area: 0.75 mm², Color: White, Rated Current: 9 A (depending on the plug used), Rated Voltage (III/2): 160 V, Contact Surface: Tin, Contact Type: Pin Connector, Number of Poles: 1, Number of Rows: 1, Positions: 1, Number of Connections: 1, Product Series: DB2062V, Pin Pitch: 4.0 mm, Mounting: THR Soldering, Pin Arrangement: In-line, Solder Pin Length [P]: 3.5 mm, Plug-and-Socket System: COMBICON DB2062V, Interlock: None, Mounting Type: Not Included, Packaging Type: Carton Packaging, Maximum current depends on the plug used. The lower current rating between the plug and pin header shall apply. The pin header is made of high-temperature-resistant material, suitable for reflow soldering processes.

Advantages

☑ Compatible with multiple plug models, offering highly flexible device design.
☑ Plastic components are made of high-temperature-resistant material, meeting THR reflow soldering process requirements.
☑ Universal mounting method.
