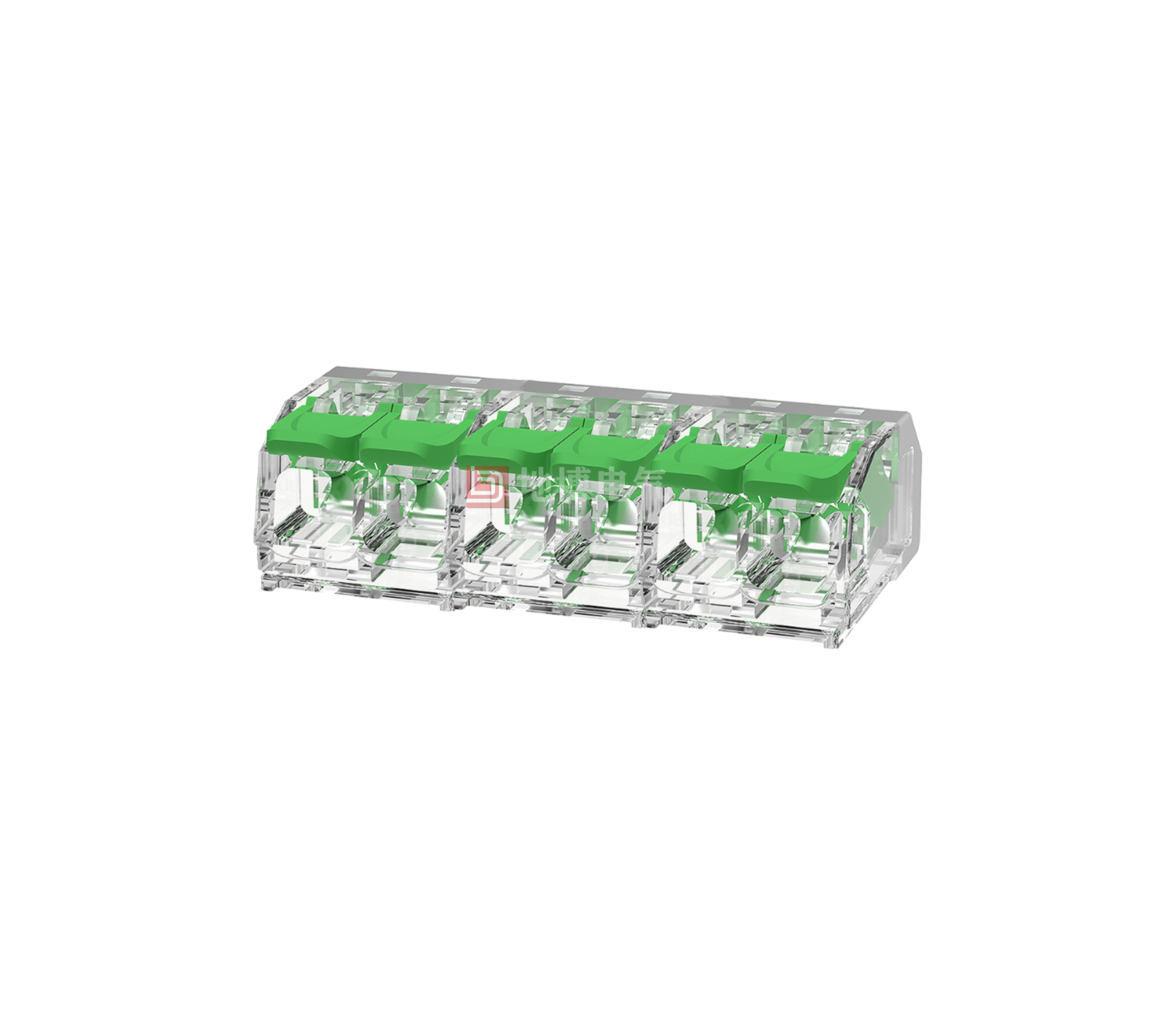

Spring-loaded fixed terminals DB014-5.6

Fixed connectors, Rated current: 32 A, Rated voltage (III/2): 450 V, Rated cross-section: 4 mm2, Number of potentials: 2-24, Number of rows: 1, Number of digits per row: 2-24, Series: DB014, Pin pitch: 5.6 mm, Wiring method: straight spring connection, Mounting: wave soldering, Wire/PCB connection direction: 0°, Colour: green, Number of solder pins per potential Number of pins per potential: 1, Packaging type: carton

Advantages

☑ Rotating operating handle for easy operation
☑ Suitable for field wiring, saving time for the installer

0
Views: 2,551
Contact usDownload PDF View 3D Download CAD
  •

    Technical data - UL/CUL



    Use Group
    B C D
    Rate Voltage [V]
    450 - 450
    Rated Current [A]
    32 - 32
    Wire Range [AWG]
    24~12
    Dielectric Voltage-Withstand
    1.6KV



    Technical data - IEC



    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    / 450 /
    Rated Current [A]
    / 32 /
    Impulse withstand voltage [KV]
    4 4 4
    Conductor cross section [mm²]
    0.2~4.0



    Material information



    Insulation Material
    PC
    Flame relardant rating
    UL94V-2
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Sn plated



    General parameters



    Pitch/Poles [mm]/[P]
    5.6/2~24
    Stripping Length [mm]
    12
    Screw/Torque(Max)[N.m]
    /
    Operating temperature [℃]
    -40~+85
    Soldering temperature
    110℃/5S
    Pin dimensions [mm]
    /
    PCB Hole Diameter [mm]
    /

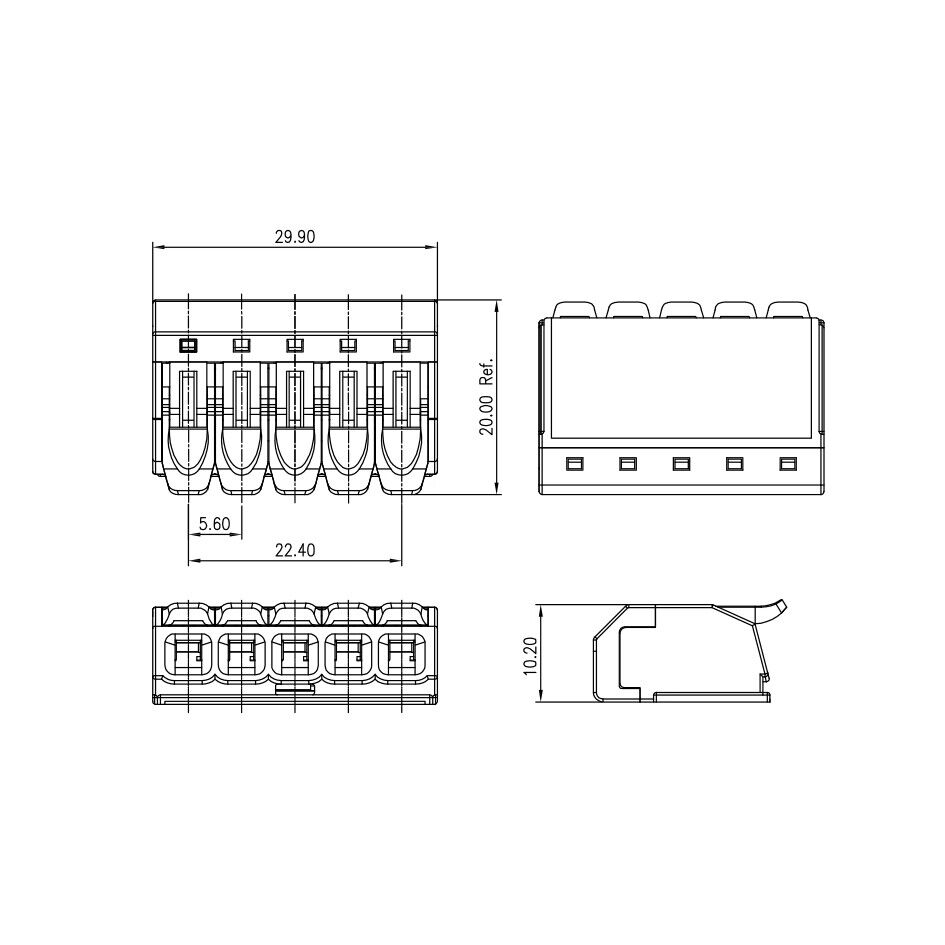

    Dimensional drawings
