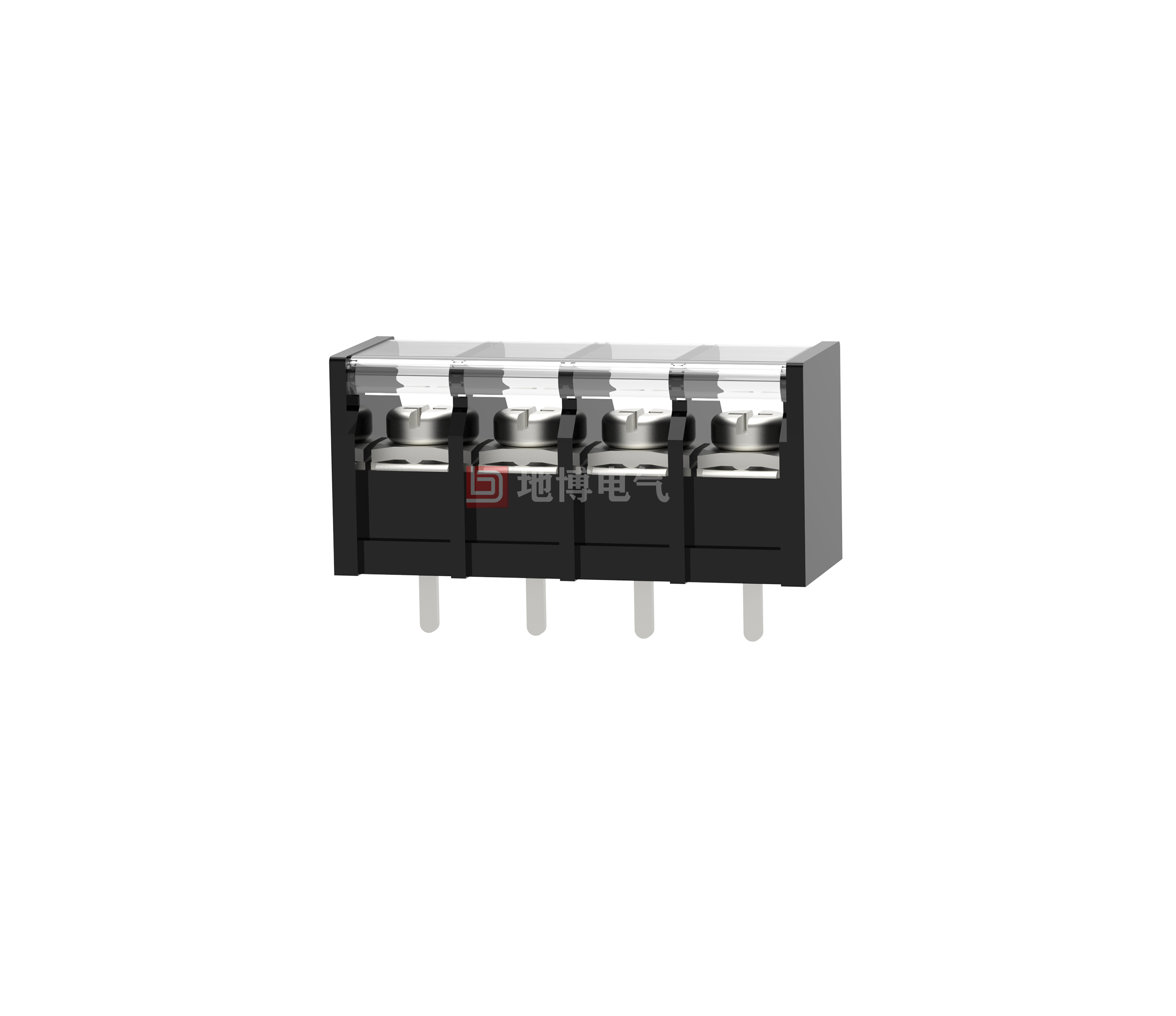

DBT30SM-8.25 Barrier Terminal

0
Views: 56
Contact usDownload PDF
  •

    Material data



    Screw
    M3.0 Steel Ni plated
    Solder foot
    Copper alloy,Sn plated
    Plastic parts
    PA66,UL9



    Electrical parameters



    Reference standard
    UL IEC
    Rated voltage
    300V 250V
    Rated current
    20A 24A
    Wire gauge range
    20-12AWG 2.5mm²
    Contact resistance
    20mΩ
    Insulating resistance
    500MΩ/DC500V
    Withstand voltage
    AC2000V/1Min
    Temperature range -40°C...105 °C [ -40...221 °F ]
    Torque
    5.1Kgf.cm/0.5Nm/4.43Lb.in



    Dimensional drawing
