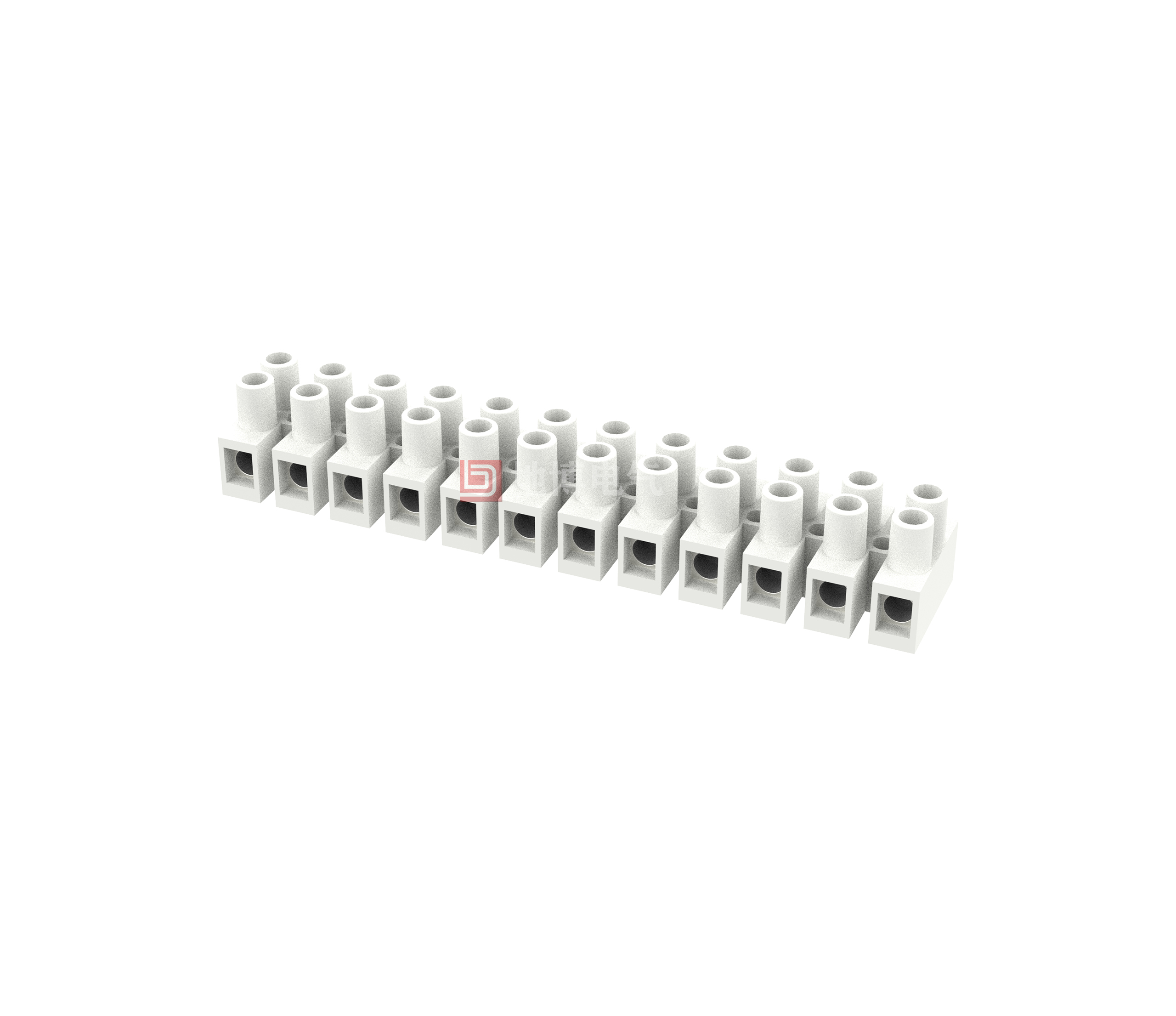

Terminal block DB18H-16.5

Through terminals, nominal cross section: 25.0 mm2, colour: natural, rated current: 101 A, rated voltage (III/2): 750 V, pin pitch: 16.5 mm, contact surface: zinc, contact type: hole connector, number of potentials: 2-12, number of rows: 1, number of digits: 2-12, connection capacity: 2-12, series: DB18H, wiring: screw connection with tab, screw head: L slotted, orientation of lead/PCB connection: 0°, interlocking: without, mounting: without, packaging type: carton Screw connection with crimp, Screw head size: L slotted, Wire/PCB connection direction: 0°, Interlocking: without, Mounting: without, Packing type: Carton

Advantages

☑ Horizontal wire-to-wire connection possible
☑ Panel mounting for a wide range of applications

0
Views: 5,081
Contact usDownload PDF View 3D Download CAD

  •

    Material Information



    Screws
    PA66，UL94V-2
    Solder foot
    M5，Steel，Zn plated
    Plastic parts
    Copper alloy，Ni plated



    Electrical performance



    Reference Standards
    UL IEC
    Rated voltage
    300V 750V
    Rated current
    85A 101A
    Wire diameter used
    16-4AWG 25mm²
    Contact resistance
    20mΩ
    Insulation resistance
    500MΩ/DC500V
    Voltage resistance
    AC2200V/1Min
    Temperature range
    -40℃~+105℃
    Torque
    2.0Nm（12.8Lb.in）

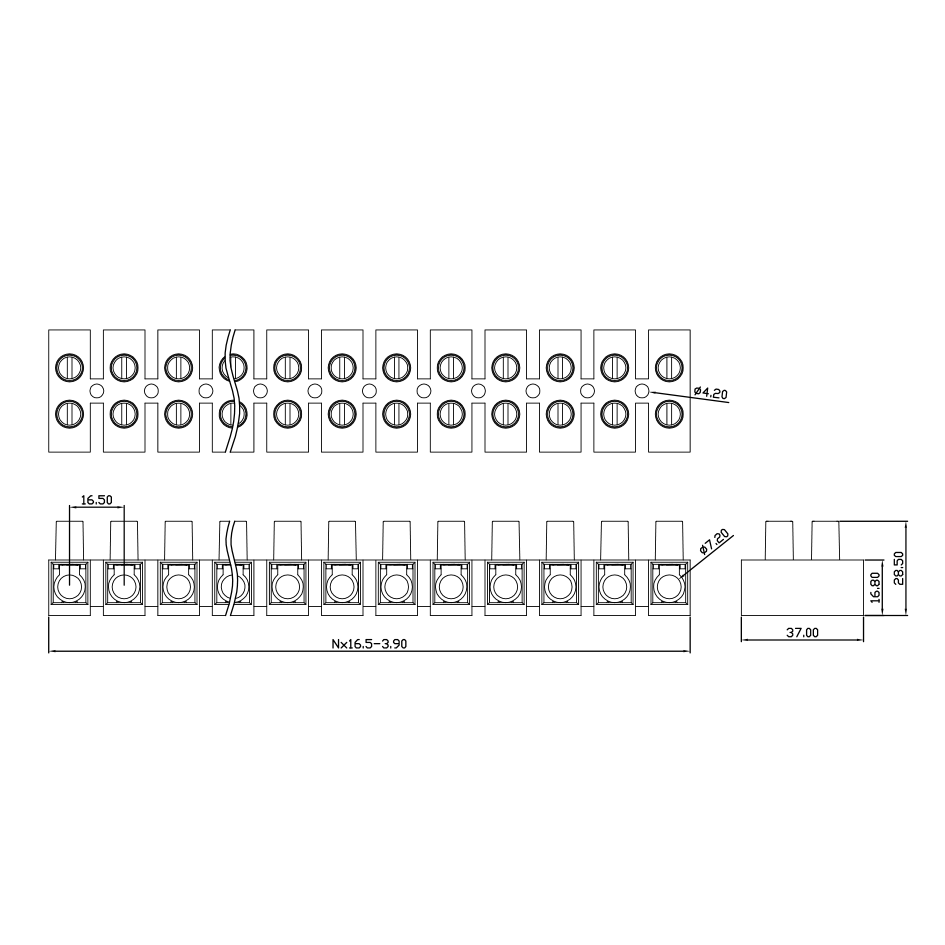

    Dimensional drawings
